BL3x-MT-EN-08 page 45/59

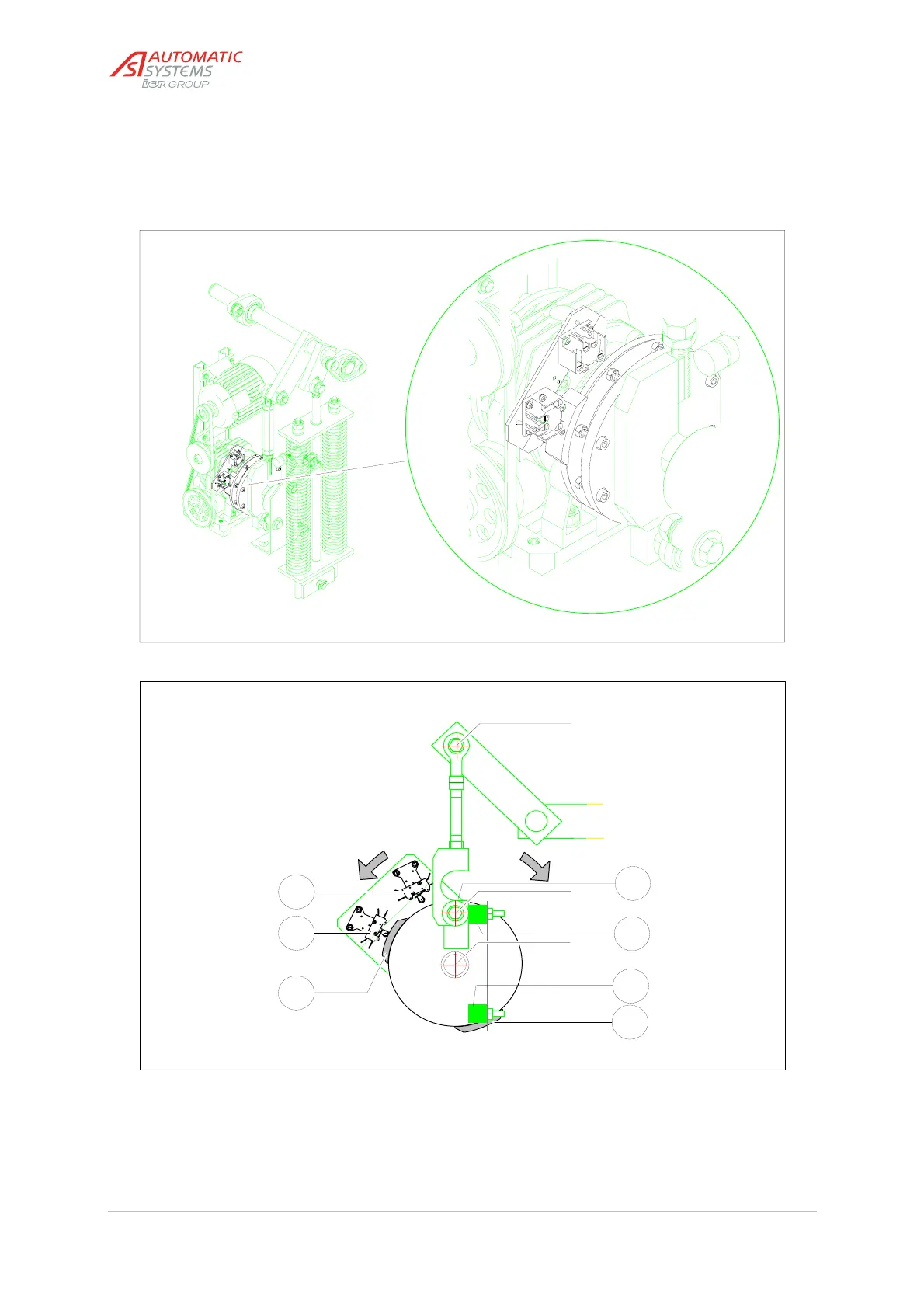

• At the end of a closing or opening movement, the barrier arm stops by means of the limit switches (28:1) and
(
28:2) actuated respectively by the adjustable cams (28:3) and (28:4). To check if the position of these two
cams is correct, proceed with the following test, after you have made sure that the arm level is correctly
adjusted according to
paragraph [5.8 Levelling the barrier arm]:
Fig. 27
100
A
B
Fig. 28
28:4
28:1
28:3
28:2
x
y
z
28:428:5
28:6
28:7
