9

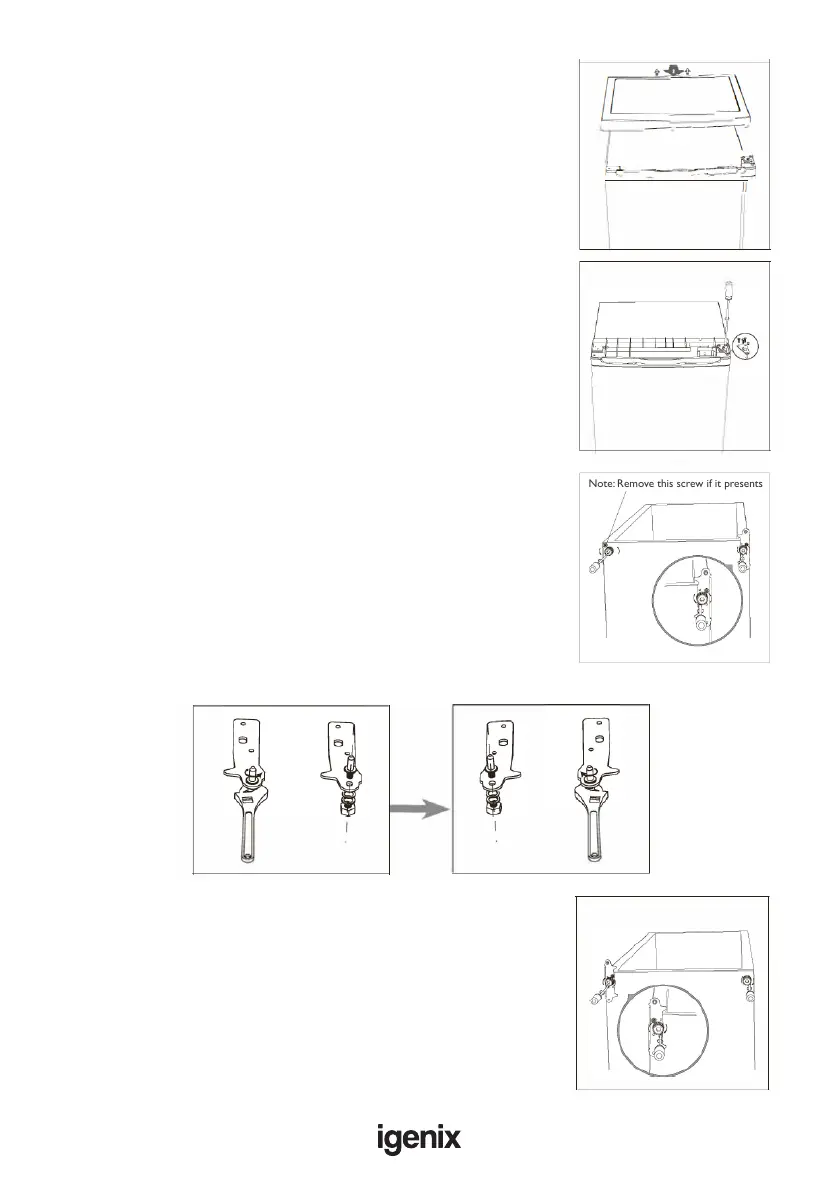

2. Remove top cover and place it aside.
3. Unscrew top hinge and then remove door and place
it on a soft pad to avoid scratching.
4. Unscrew bottom hinge. Then remove the adjustable
feet from both side.
Note: Remove this screw if it presents
5. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.
Unscrew
Screw
6. Ret the bracket tting the bottom hinge pin.
Replace both adjustable feet.
To Next Page
