Adjusting the insulating-part I. [the insulating block under the time-setting disc]
Dismantle the camera, as under Disassembly of Camera AA.1 - AA.2.
aa) At the F-synchronisation the contact spring of insulating-part I must touch the contact pin
(where the connection for the coupling wire 350.22-11 is). If necessary bend the contact
spring accordingly.
bb) Replace the top-plate 350.21 U 1, as under assembly of camera BB.1 - BB.2.
Adjusting the insulating-part II. [the block with the flash contacts on the right below the
wind mechanism]
Dismantle the camera, as under Disassembly of Camera AA.1 - AA.3. Check the F-contact:
cc) Set the time setting disc to 1/30 sec and cock the shutter.
dd) Restrain the shutter flap, release the shutter and let the shutter flap run slowly; the F-

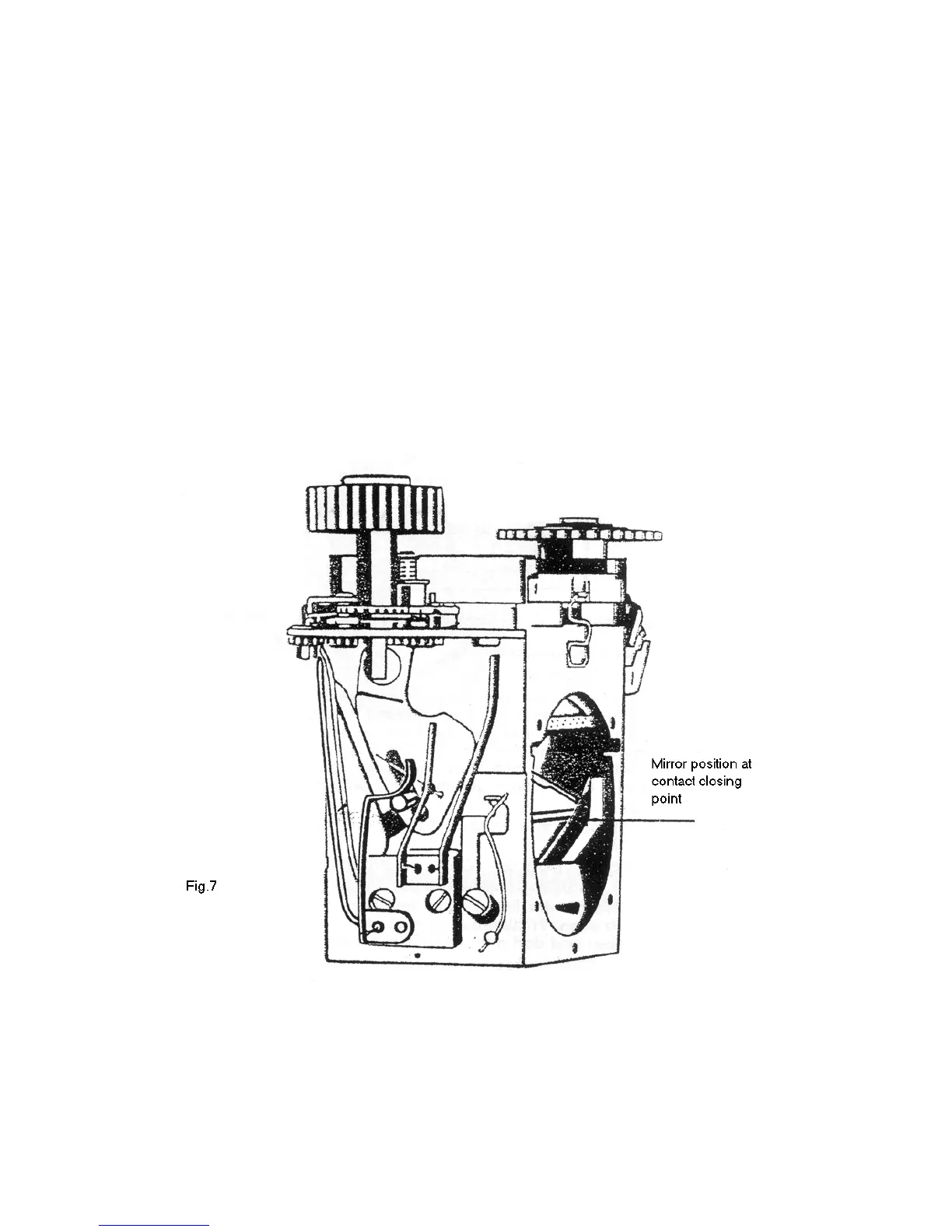

contact must fire as shown in Fig. 7. If this does not occur, the contact spring for insulating-
part II must be bent accordingly.
