iH36 Mounting/Installation Instructions
Parts Supplied
• 4 Small (1/2") Spacers
• 8 Large (1") Spacers
• 4 3 " Phillips head screws/bolts
• 4 4 1/2 " Phillps head screws/bolts
• Mounting Template A (for mounting template from inside cabinet)
• Mounting Template B (for mounting template from below cabinet)
BEFORE MOUNTING
Select a convenient kitchen cabinet with adequate clearance near a working 120 volt electrical outlet. Make sure the power
cord reaches the outlet easily, with some extra. Empty the cabinet completely before attempting to install the iH36,
and thoroughly clean (remove any grease, etc. from) the cabinet.
Caution: To reduce the risk of fire, do not place or mount any heating or cooking appliance near this unit. Make sure it is far
enough away from heat-producing products such as halogen lamps, etc.
7
Tools Required
• Drill and 1/4" Drill Bit
• Masking Tape
• Scissors
• Nail or Awl
• Phillips head Screwdriver
• Tape Measure or Ruler
• Safety Goggles
Front of
cabinet
Bottom Shelf

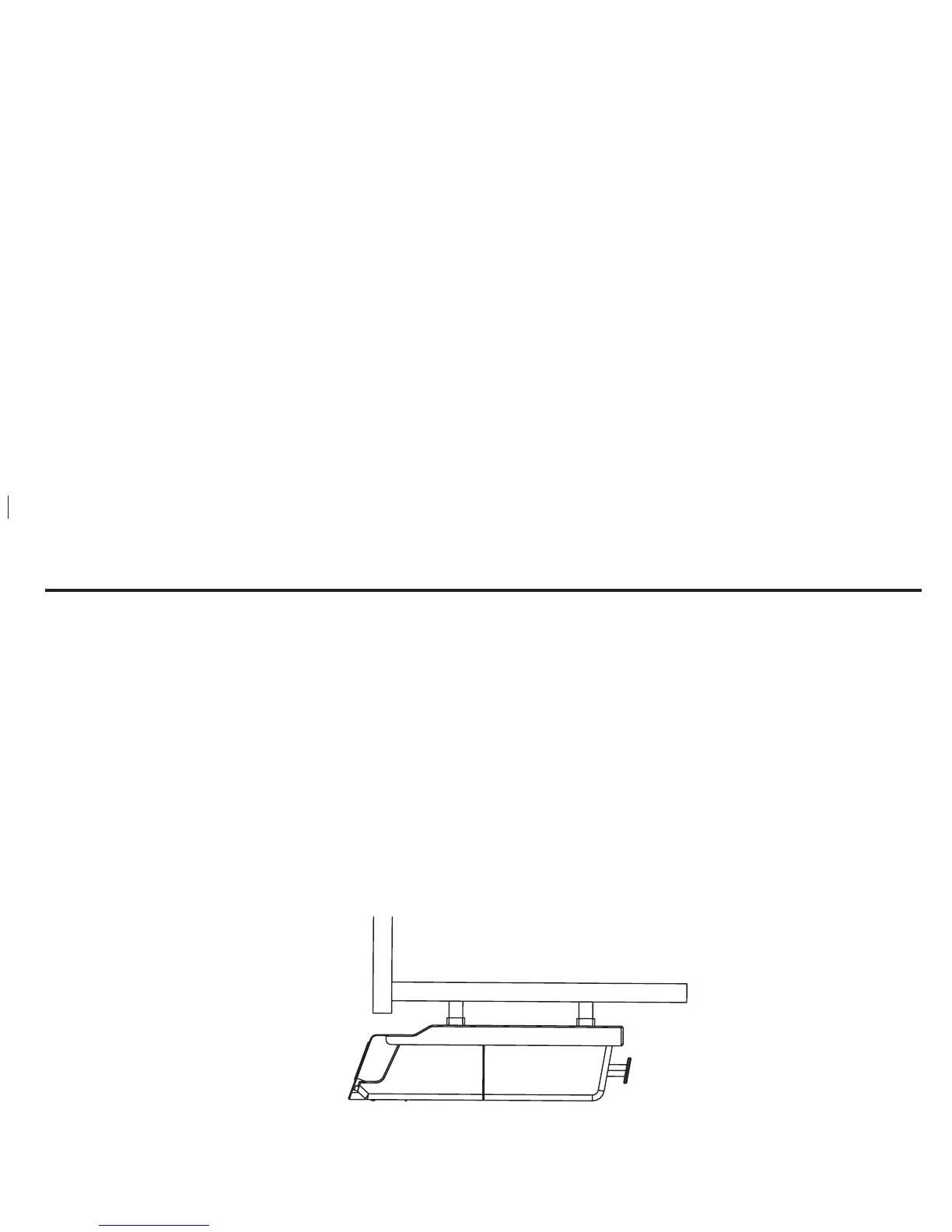

Side view of unit
To Next Page
