2.8.6 Wing flaps:
The wing flaps are actuated by a lever located in the middle of the longitudinal tube
of the canopy roof frame. The lever is linked to the flap horns via push-rods.
As an option, the wing flaps can also be actuated electrically via a servo motor which
is controlled by means of a rocker switch in the control stick or a separate rocker
switch in the instrument panel.

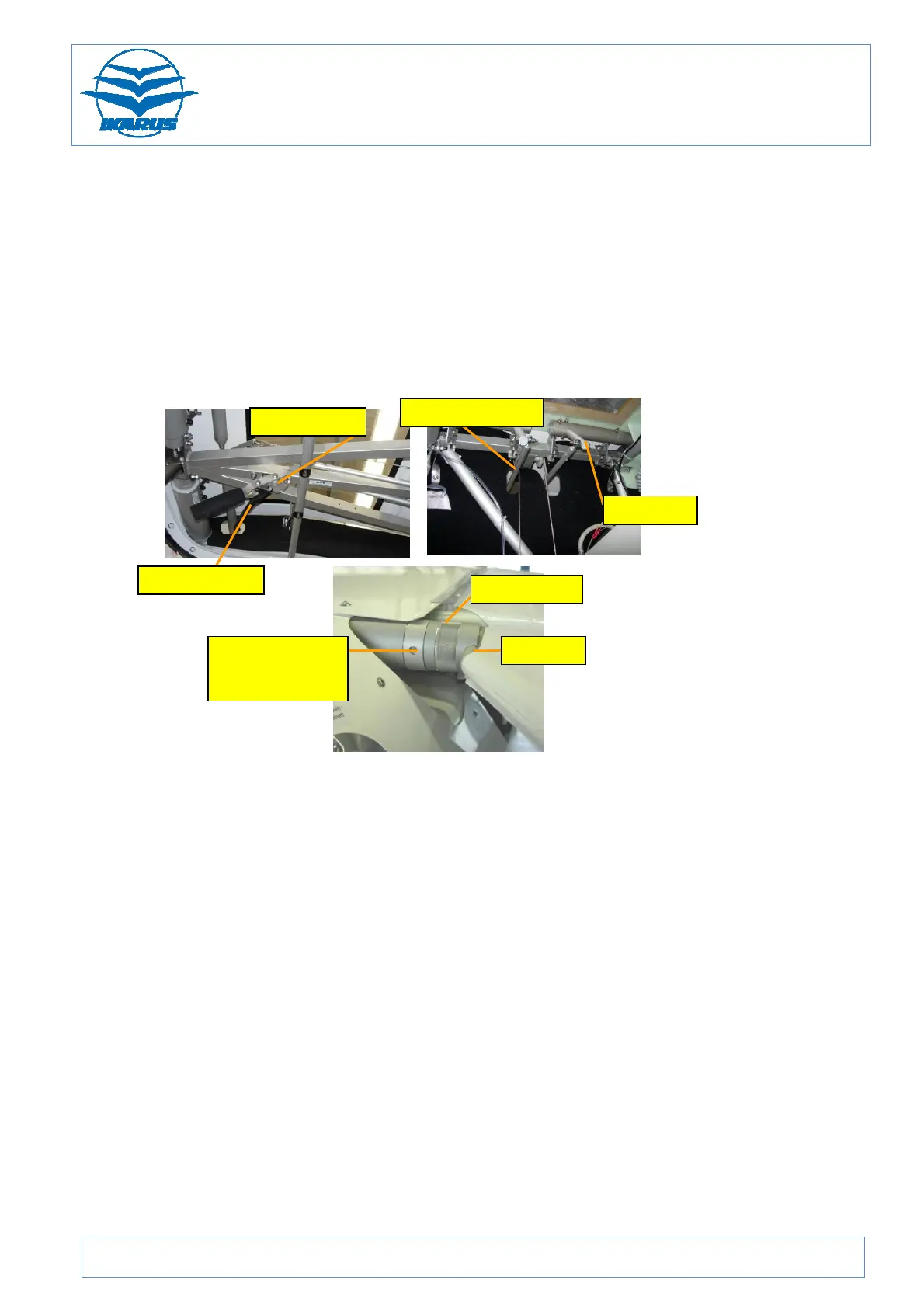

Figure 43: Flap controls
flap horn
spring-loaded lock
(also on the rear
side)
wing flap lever
wing flap track
wing
flap push rod
sliding sleeve
flap
spar
