Maintenance Manual C42 Series

MaintenanceManual C42-

Series_Issue_VII_18.02.2014.doc

Revison No.:1 78 from 107

4.3.7 Visual inspection of the empennage attachment safety screws

The inspection can be carried out through the baggage bin and using a torch and

comprises checking that none of the horizontal tail fin attachment safety screws is

missing.

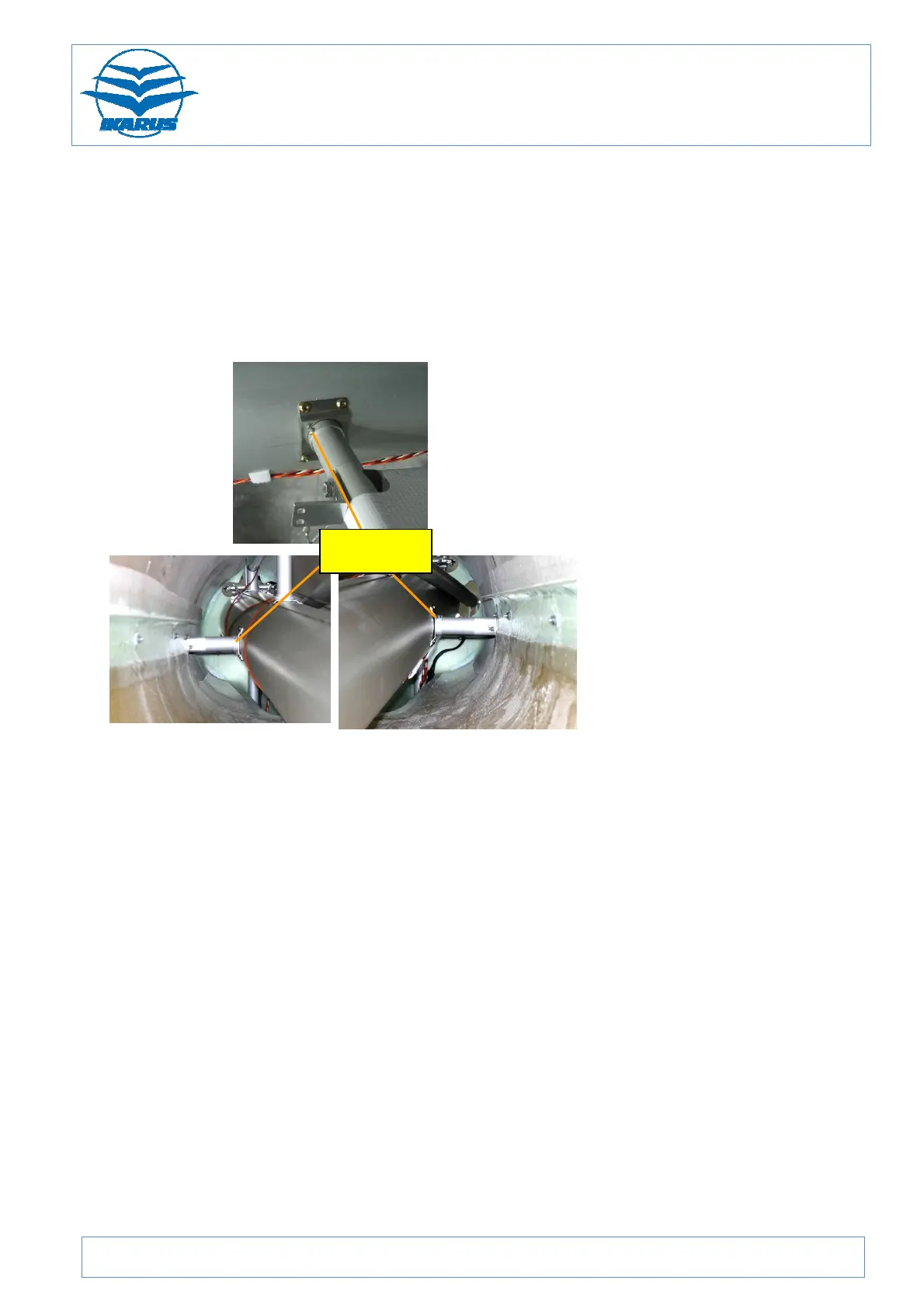

Figure 74: Safety screws

safety screws

(one aside)
