C42 SERIES Pilot Operating Handbook Appendix
POH Issue 4 Rev. 5 Page 85 of 91

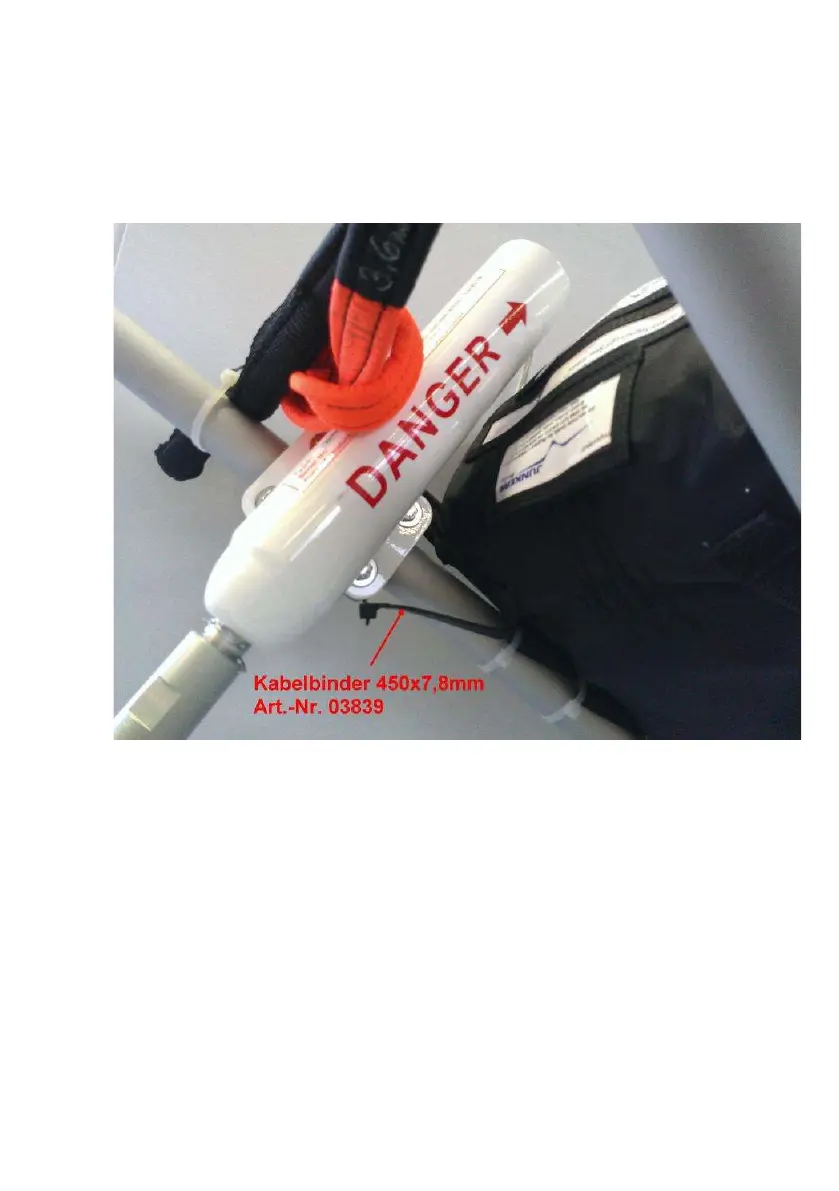

24.5 Location of the parachute rescue system
CAUTION:
Lay the cable tie (450x7.8 mm) around the clamp of the ballistic rocket and
trough the first, front mounting flap of the rescue system and tighten it.
Thereby backward slipping of the parachute package is prevented.
