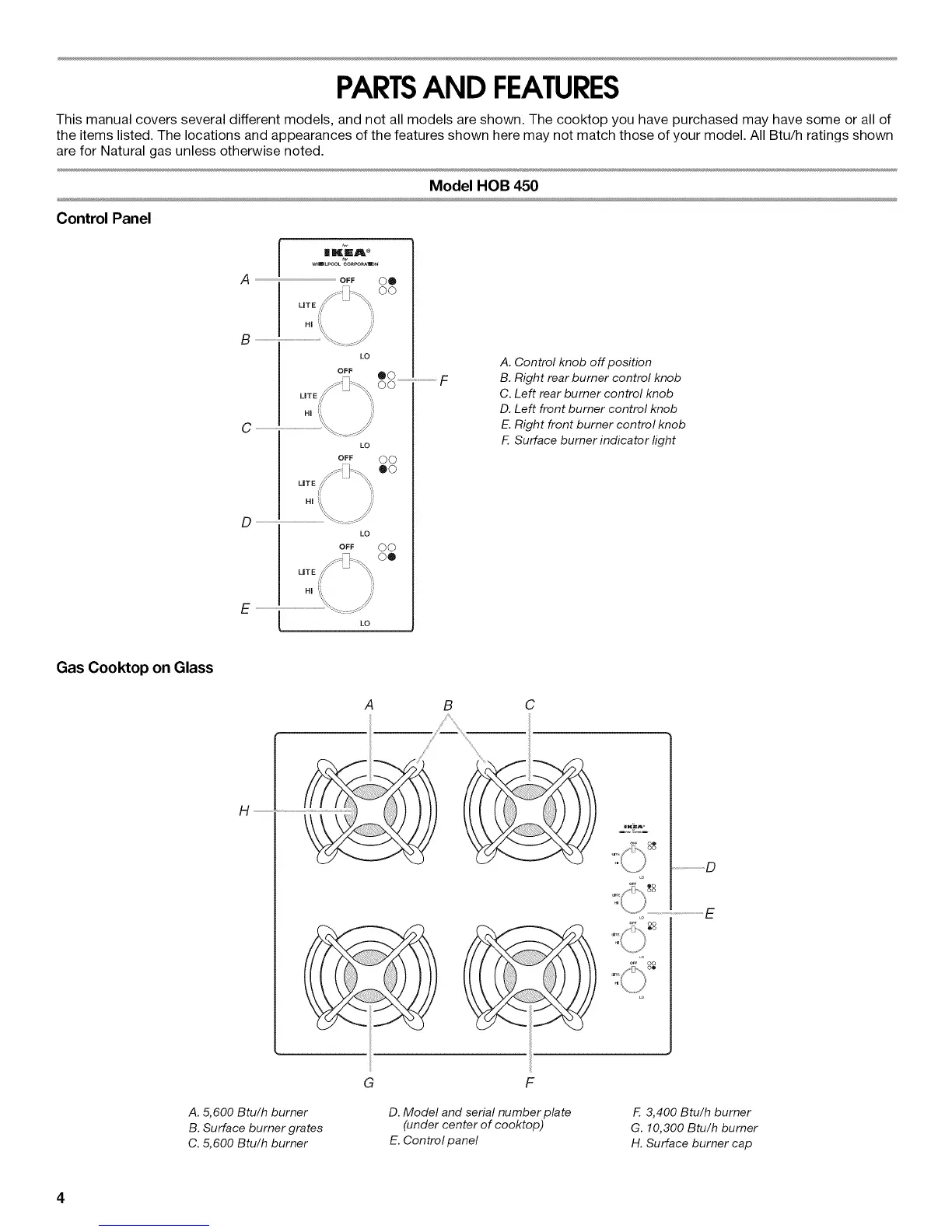

IKEA HOB250 - Parts and Features; Control Panel Overview; Gas Cooktop Layout

PARTSAND FEATURES
This manual covers several different models, and not all models are shown. The cooktop you have purchased may have some or all of
the items listed. The locations and appearances of the features shown here may not match those of your model. All Btu/h ratings shown
are for Natural gas unless otherwise noted.
Model HOB 450
Control Panel
LO
OFF
O0
00
...........................F
A. Control knob off position
B. Right rear burner control knob
C. Left rear burner control knob
D. Left front burner control knob
E. Right front burner control knob
F. Surface burner indicator light
Gas Cooktop on Glass
A B C
...........
........................................D
,o
,o E
_o
o_ oo
A. 5,600 Btu/h burner
B. Surface burner grates
C. 5,600 Btu/h burner
G F
D. Model and serial number plate
(under center of cooktop)
E. Control panel
F. 3,400 Btu/h burner
G. 10,300 Btu/h burner
H. Surface burner cap
