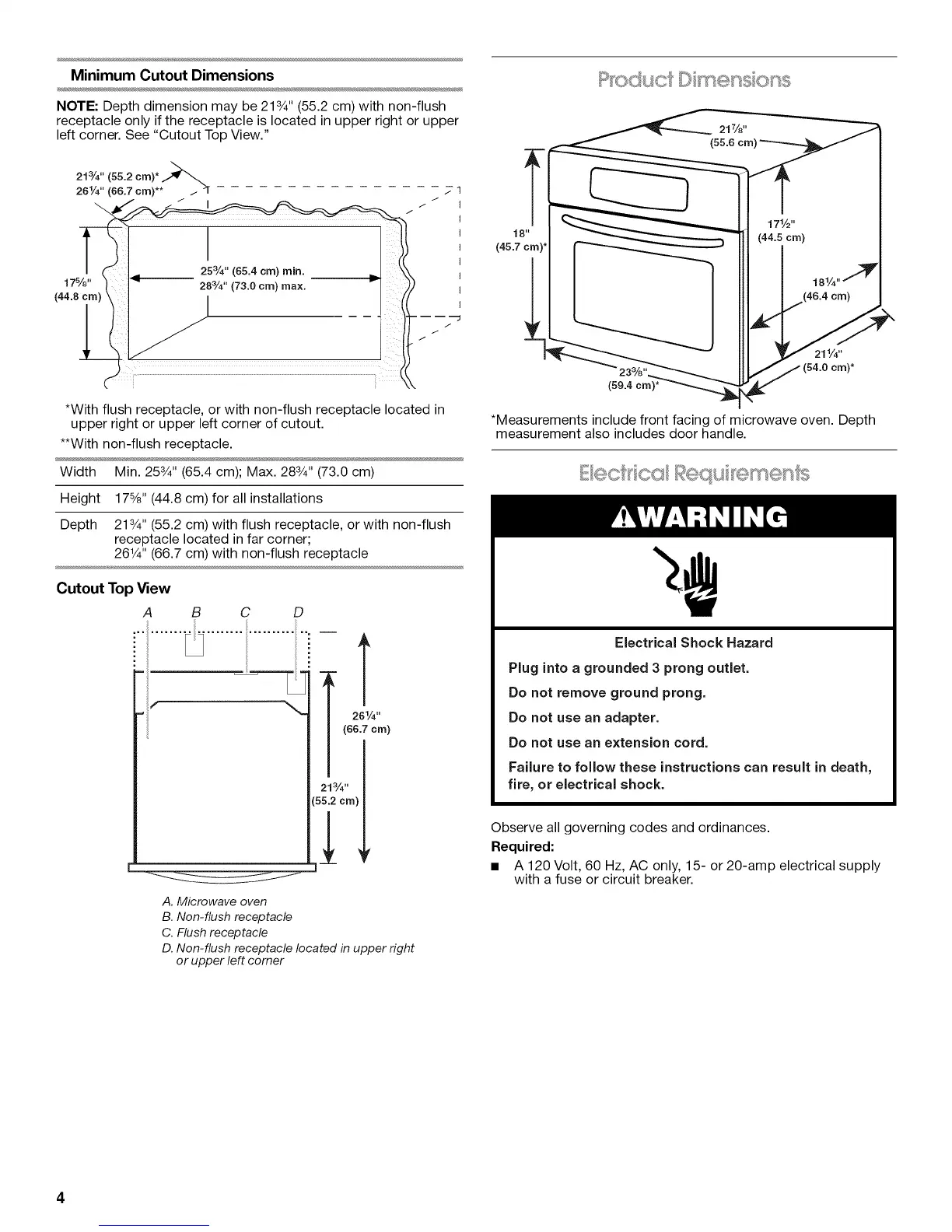

Minimum Cutout Dimensions
NOTE: Depth dimension may be 213/4" (55.2 cm)with non-flush
receptacle only if the receptacle is located in upper right or upper
left corner. See "Cutout Top View."
213/4" (55.2 crn)* _
261/4'' (66.7 crn)** / I ./
/
m/_" / I_----- 28_/_"(73.0om)_×. _1 ))
*With flush receptacle, or with non-flush receptacle located in
upper right or upper left corner of cutout.
**With non-flush receptacle.
Width Min. 253/4'' (65.4 cm); Max. 283/4'' (73.0 cm)
Height 17%" (44.8 cm) for all installations
Depth 213/4"(55.2 cm) with flush receptacle, or with non-flush
receptacle located in far corner
261/4'' (66.7 cm) with non-flush receptacle
Cutout Top View
A B C D
A. Microwave oven
B. Non-flush receptacle
C.Flush receptacle
D.Non-flush receptacle located in upper right
or upper left corner
18"
(45.7 crn)*
17_/2,,
(44.5 cm)
*Measurements include front facing of microwave oven. Depth
measurement also includes door handle.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Observe all governing codes and ordinances.
Required:
• A 120 Volt, 60 Hz, AC only, 15- or 20-amp electrical supply
with a fuse or circuit breaker.
4
