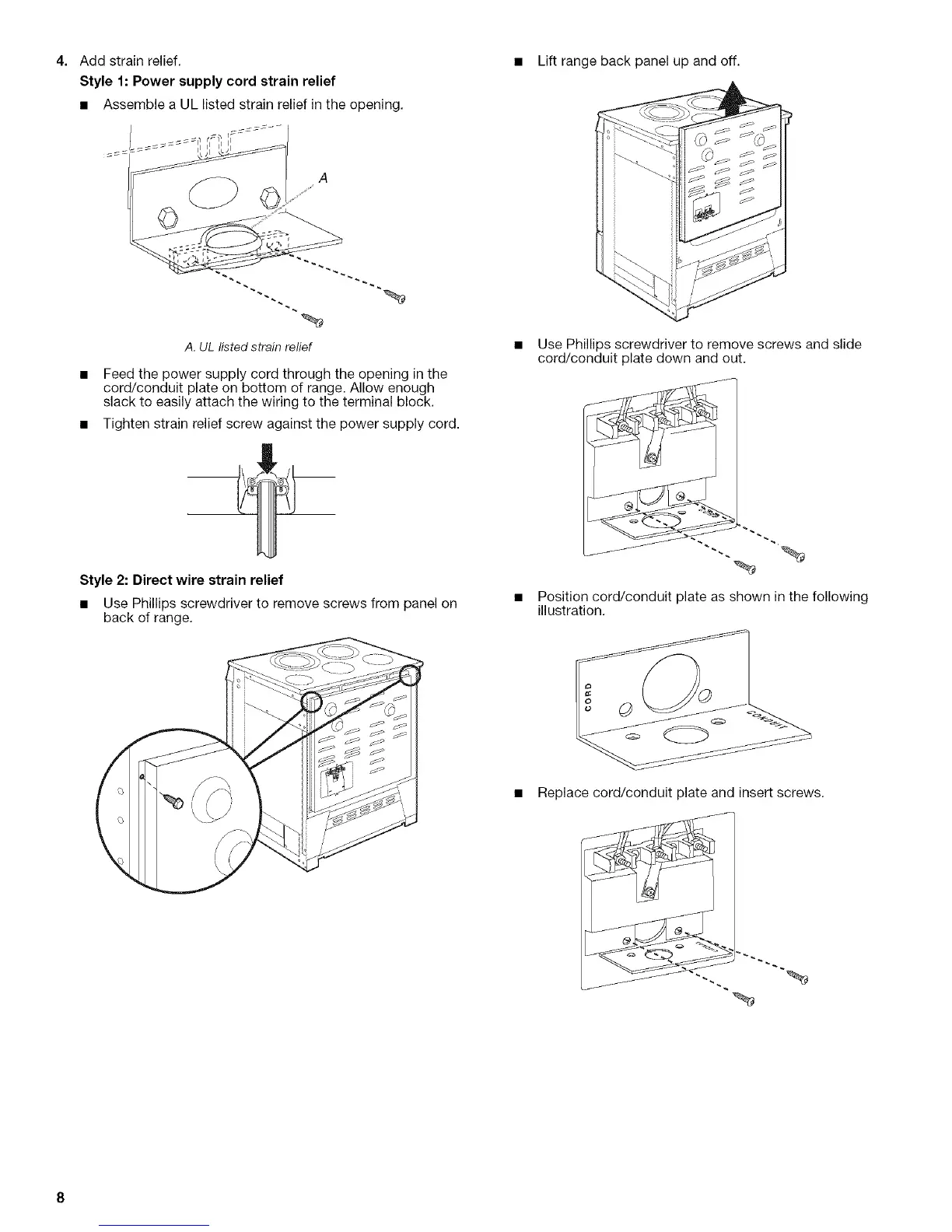

4. Add strain relief.
Style 1: Power supply cord strain relief
• Assemble a UL listed strain relief in the opening.
A
A. UL listed strain relief
• Feed the power supply cord through the opening in the
cord/conduit plate on bottom of range. Allow enough
slack to easily attach the wiring to the terminal block.
• Tighten strain relief screw against the power supply cord.
Style 2: Direct wire strain relief
• Use Phillips screwdriver to remove screws from panel on
back of range.
• Lift range back panel up and off.
Use Phillips screwdriver to remove screws and slide
cord/conduit plate down and out.
• Position cord/conduit plate as shown in the following
illustration.
• Replace cord/conduit plate and insert screws.
