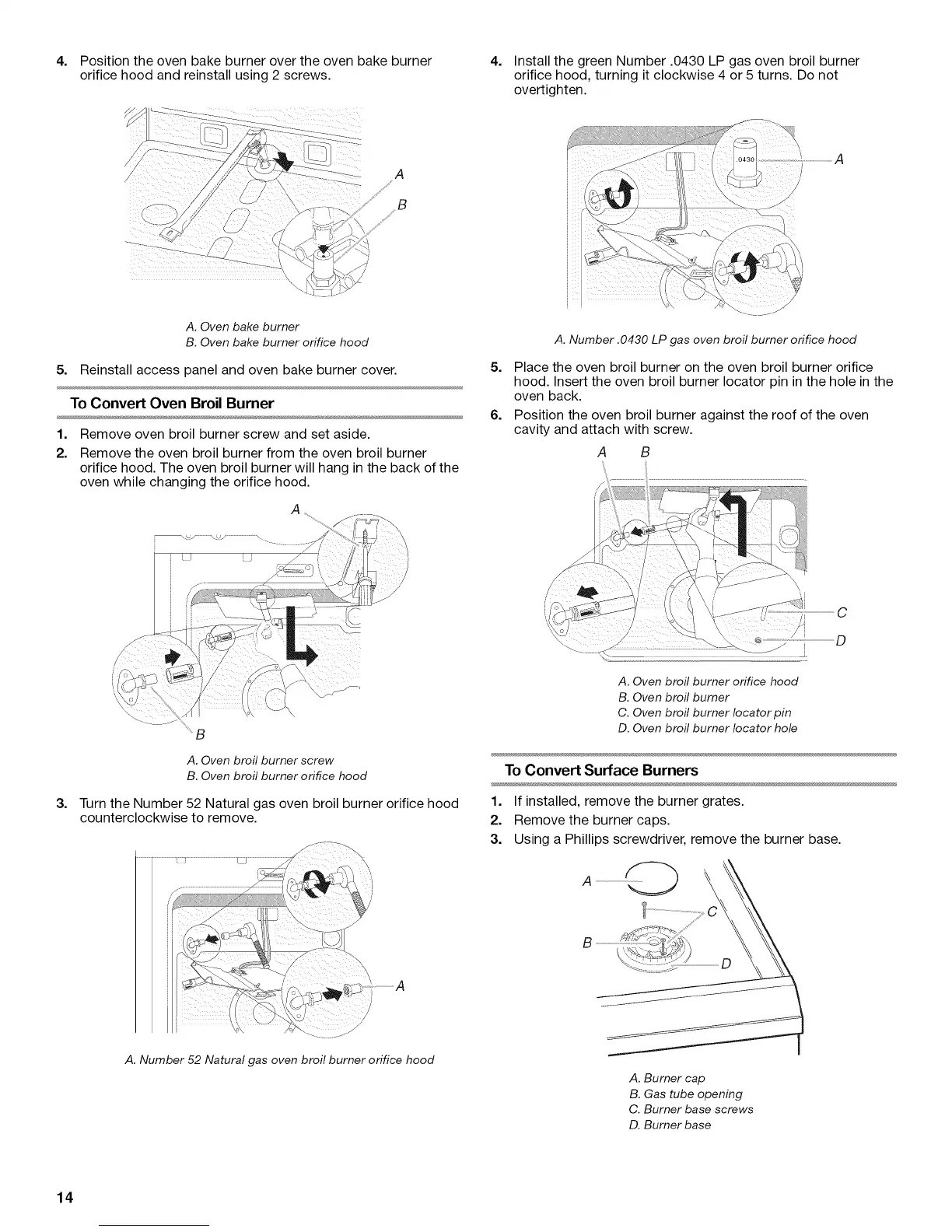

4. Position the oven bake burner over the oven bake burner
orifice hood and reinstall using 2 screws.
4. Install the green Number .0430 LP gas oven broil burner
orifice hood, turning it clockwise 4 or 5 turns. Do not
overtighten.
B
//
A. Oven bake burner
B. Oven bake burner orifice hood
5. Reinstall access panel and oven bake burner cover.
To Convert Oven Broil Burner
1. Remove oven broil burner screw and set aside.
2. Remove the oven broil burner from the oven broil burner
orifice hood. The oven broil burner will hang in the back of the
oven while changing the orifice hood.
\
5.
6.
A. Number .0430 LP gas oven broil burner orifice hood
Place the oven broil burner on the oven broil burner orifice
hood. Insert the oven broil burner Iocator pin in the hole in the
oven back.
Position the oven broil burner against the roof of the oven
cavity and attach with screw.
A B
3.
A. Oven broil burner screw
B. Oven broil burner orifice hood
Turn the Number 52 Natural gas oven broil burner orifice hood
counterclockwise to remove.
\\
C
A. Oven broil burner orifice hood
B. Oven broil burner
C. Oven broil burner Iocator pin
D. Oven broil burner Iocator hole
To Convert Surface Burners
1. If installed, remove the burner grates.
2. Remove the burner caps.
3. Using a Phillips screwdriver, remove the burner base.
A. Number 52 Natural gas oven broil burner orifice hood
A. Burner cap
B. Gas tube opening
C. Burner base screws
D. Burner base
14
