DOOR REMOVAL/
REVERSAL INSTRUCTIONS
IMPORTANT
Place door on padded surface to
avoid damage.
Hinge
Pin
Center
Hinge
Screws
Hinge
Hole
Plug
Figure 2
Figure 3

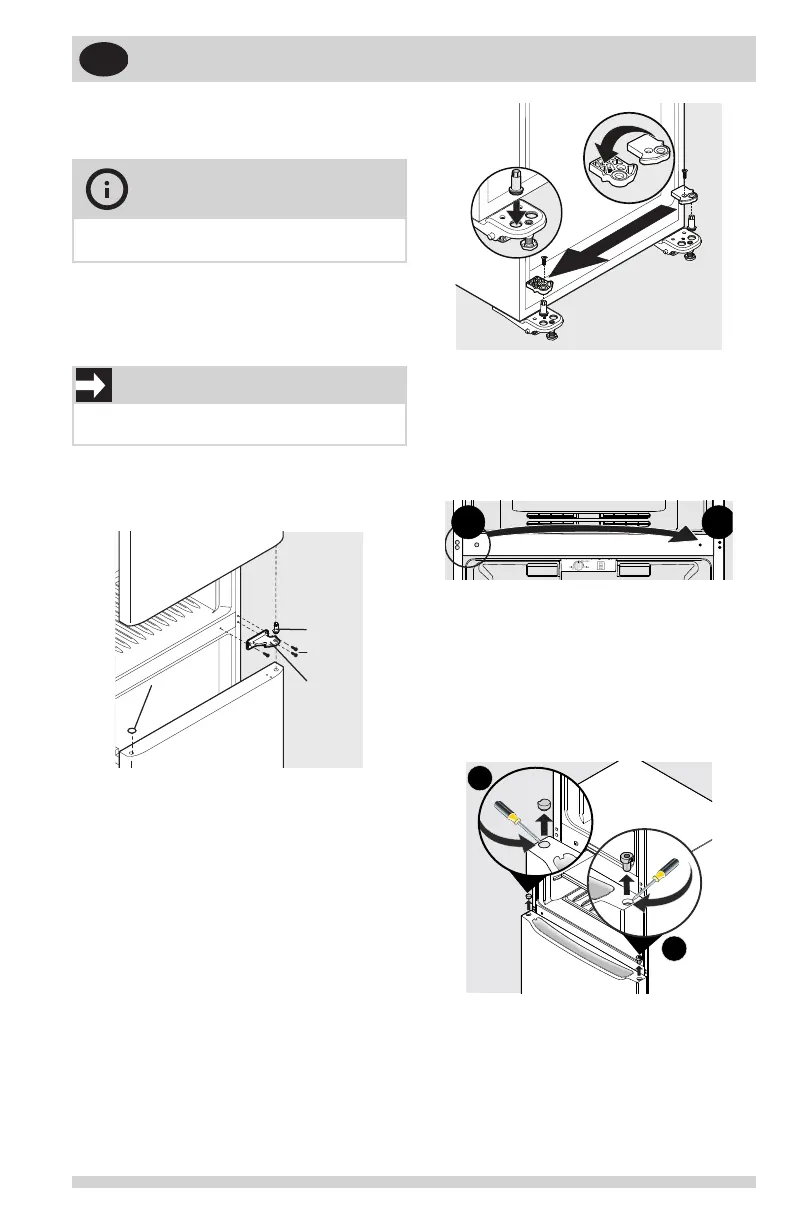

5. Using a 5/16 in. socket, remove the
3 screws from the top hinge, and set
hinge aside (see Figure 1A).
6. Using a 5/16 in. socket, unscrew
the center hinge pin. Open the
refrigerator door 90º, by hand,
remove the pin, and lift the door off
the bottom hinge pin.
7. Using a T25 Torx Head screwdriver,
remove the 3 center hinge screws,
and set center hinge aside (see
Figure 2).
8. By hand, remove the bottom hinge
cover from both sides (open on the
sides and pull up).
9. Using a T20 Torx Head screwdriver,
remove the door stopper screw, and
remove door stopper (see Figure 3).
10. Using a 5/16 in. socket, unscrew the
bottom hinge pin (see Figure 3).
11. Reinstall the bottom hinge pin in the
left side hole on the left side hinge
(see Figure 3).
12. Flip the door stopper. Reinstall the
door stopper on top of the bottom
hinge with the screw (see Figure 3).
A
B
Figure 4
13. Install the bottom hinge covers.
14. Using a putty knife gently remove
the 3 center hinge hole covers (see
Figure 4A) and install on the opposite
side of the cabinet (see Figure 4B).
A
B
Figure 5
15. Withaatheadscrewdriver,pryout
the center hinge bearing from the
top of the refrigerator door (see
Figure 5A).
16. Withaatheadscrewdriver,pryout
the center hinge bearing plug from
the opposite side of the refrigerator
door (see Figure 5B).
NOTE
Keep the screws so they can be used
on the opposite side.
17. Reinstall the center hinge bearing in
place of the plug removed in previ-
ous step. Using a hammer, gently tap
it all the way in.
18. By hand, reinstall the center hinge
bearing plug on the opposite side of
the door.
