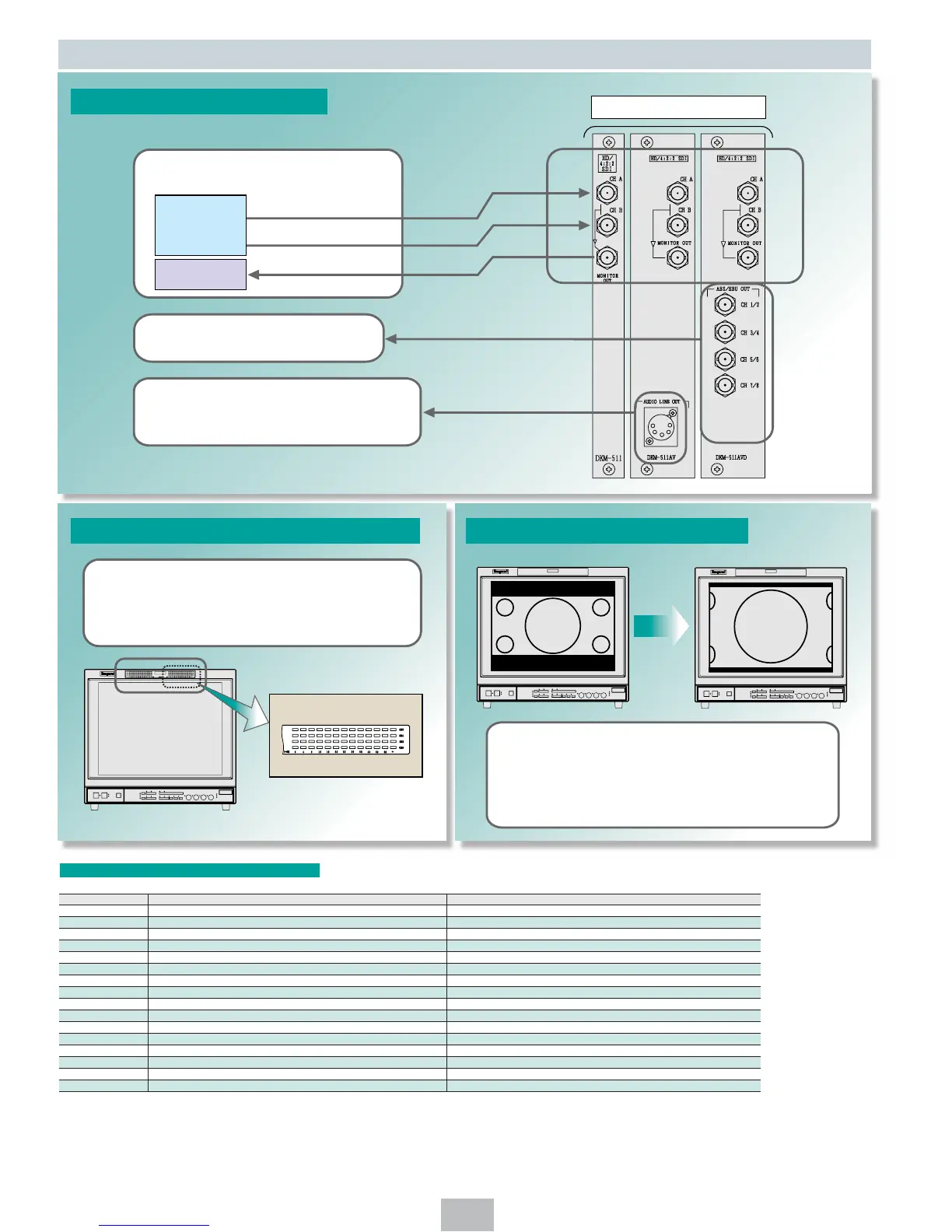

HTM-1517R/1917R/1990R
•
Multi-Embedded SDI Input
•
Multi-Embedded Audio Level Indicator
(1) Multi SDI Input
HD/SD (4:2:2) SDI signals
HD-SDI or 4:2:2 input
HD-SDI or 4:2:2 input
HD-SDI or 4:2:2 output
(2) Embedded AES/EBU 8-channel
(CH1/2, 3/4, 5/6, 7/8) output
(3) Embedded Analog Audio 2-ch Output
(CH1/2, 3/4, 5/6, 7/8):
selectable by menu
The audio level indicator can be mounted on the
escutcheon this provides elimination of CRT burn-in
and high visibility in a space saving design. Both
video and audio levels can be monitored.
< 8ch type >
< HTM-1917R >
< HTM-1990R >
* AV or AVD module
required.
•
HDTV 4:3 Area Zoom Function
From
SDI device
To wa ve f o r m
monitor
Evolutional Feature for HTM-Series Multi-format Monitors
Evolutional Feature for HTM-Series Multi-format Monitors
Enlarging a 16:9 image until it fills the height of
the 4:3 screen increases resolution and image size.
[Model] 16:9 4:3
HTM-1517R: 15” 19”
HTM-1917R/1990R: 19” 24”
Optional Accessories for HTM-series Monitors
HTM1990R/1917R/1517R
Model Description Remarks
DKM-511A Multi-SDI 2 Input Module (HD-SDI/SD-SDI) SDI: 2 Inputs/1 Outut (High performance)
DKM-511A-AV Multi-SDI 2 Input and Embedded Audio Output Module SDI: 2 Inputs/1 Outut, 2ch Embedded Analog Audio Outputs
DKM-511A-AVD Multi-SDI 2 Input and Embedded AES/EBU Output Module SDI: 2 Inputs/1 Outut, 8ch Embedded AES/EBU Outputs
DKM-511B Multi-SDI 2 Input Module (HD-SDI/SD-SDI) SDI: 2 Inputs/1 Outut (Standard performance)
DAM-518 8ch Embedded Audio Level Indicator Requires DKM-511A-AV/AVD for use
DK-801A SD-SDI Input Module SD SDI 4:2:2 digital component, 2 Inputs / 2 Outputs
DE-801 NTSC 3-line Comb Decoder Module VBS(NTSC): 3 Inputs / 3 Outputs (Sampling Rate:27MHz)
DE-811 NTSC/PAL Decoder Module (Sampling Rate:14.3MHz)
EX-801A Test Extender Board
RCT-30A Infrared Remote Controller
SRC-301Z Serial Remote Controller Controls up to 99 monitors with loop through connection
MK-1905 16:9 Mask for 19-inch Monitor Easy attachment/deattachment to bezel
ASP-100 Auto setup Probe Auto-adjustment of color temperature
A-TM20-16 Rack-mount hardware for 19-inch monitor (Same as RS-2020)
A-TM15-50 Rack-mount hardware for 15-inch monitor (Same as RS-1550)
TTM-20 Monitor slide rail for 19-inch/15-inch monitor
