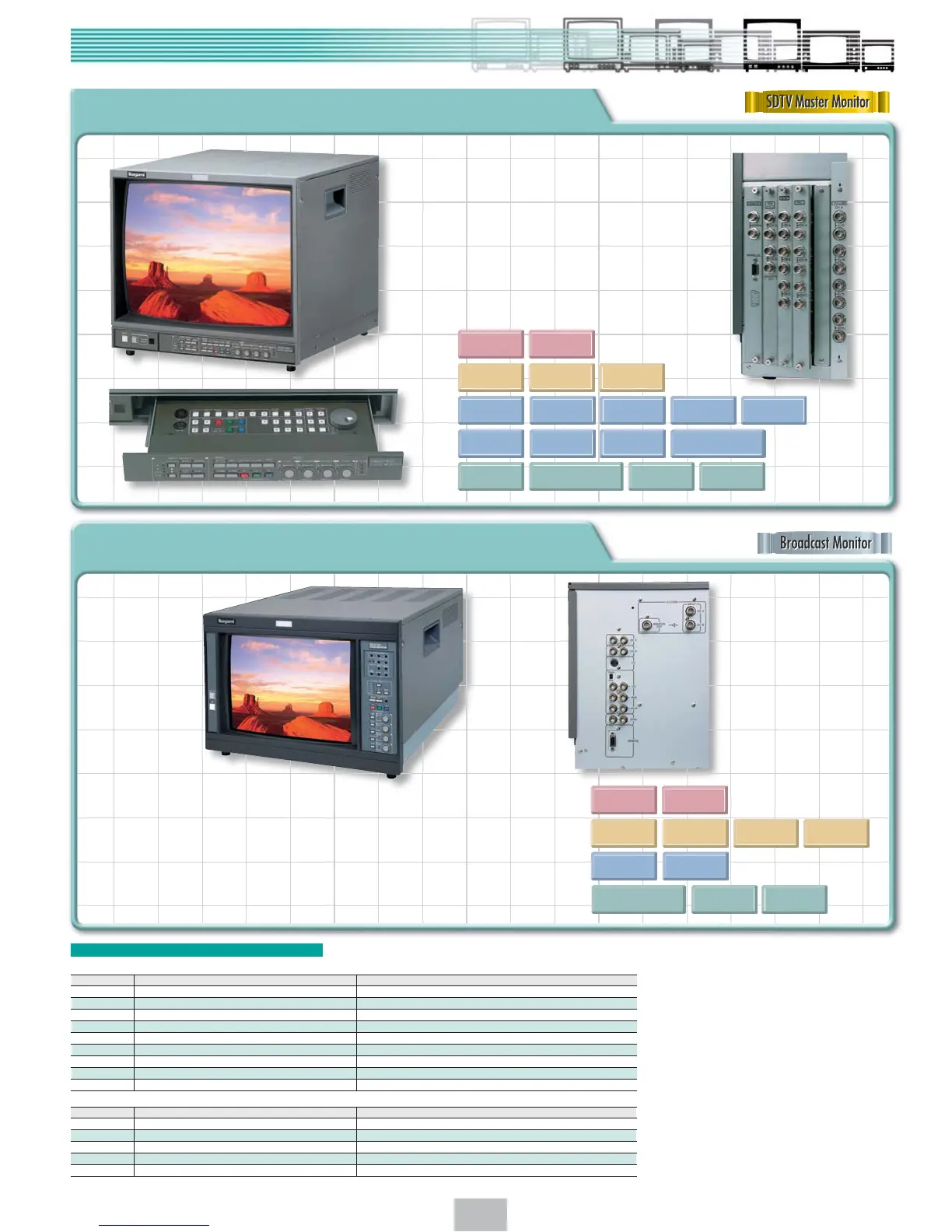

20-inch High Quality
Broadcast Color Monitor
TM20-80RH
12
The 80 series color monitors are designed to be
high-end Grade-I master monitors to succeed
Ikegami’s monitors which have been established as
state-of-the art technology of conventional broad-
casting. With the superior technology and confi-
dence kept, further improvement for performance
are achieved in this new series monitor to satisfy
more flexible applications.
4-Plug-in
20-inch
4:3/16:9
VBS
Input
9RU
38kg
(
83.78lbs
)
W
450
✕
H
399
✕
D
515
mm
(
W
17.8
✕
H
15.8
✕
D
20.3
inches
)
700TVL
Y,P
B
,P
R
/
RGB Input
SD-SDI
Input
▲
Shadow
Self-contained
Chart
Remote
(
Parallel
)
4-Color-
temperature-memory
Remote
(
Serial
)
Remote
(Infrared rays)
Auto Set-up
Marker
TM Series
TM Series
15-inch Color Monitor
TM15-70R
Ikegami 70 Series are High performance, Low cost color SDTV Monitors, providing
NTSC-PAL automatic selection. The Units are specifically designed for production
or broadcast applications, and provide high-fidelity video reproduction with easy
operation, utilizing In-Line Gun CRT technology, BFS circuits, and Comb filter
(NTSC only). The 17 Series Color Monitors can accept 2 composite video, Y/C,
and RGB or Component inputs in both NTSC and PAL formats.
Furthermore, Digital Inputs (D1, D2, D3 formats) are available with optional mod-
ules and also it employs the In-line gun, Dot-shadow mask, high resolution CRT.
15-inch
4:3/16:9
VBS
Input
7RU
24kg
(
52.9lbs
)
W
450
✕
H
310
✕
D
515
mm
(
W
17.8
✕
H
12.2
✕
D
20.3
inches
)
650TVL
Y,P
B
,P
R
/
RGB Input
Y/C Input
SD-SDI
Input
▲
Remote
(
Parallel
)
▲ Option
Optional Accessories for TM-series Monitors
TM20-80RH
Model Description Remarks
DK-801A SD-SDI Input Module SD SDI 4:2:2 digital component, 2 Inputs / 2 Outputs
DE-801 NTSC 3-line Comb Decoder Module VBS(NTSC): 3 Inputs / 3 Outputs
DE-811 NTSC/PAL Decoder Module
EX-801A Test Extender Board
RCT-30A Infrared Remote Controller
SRC-301Z Serial Remote Controller Controls up to 99 monitors with loop through connection
ASP-100 Auto setup Probe Auto-adjustment of color temperature
A-TM20-16 Rack-mount hardware for 19-inch monitor (Same as RS-2020)
TTM-20 Monitor slide rail for 19-inch/15-inch monitor
TM15-70R
Model Description Remarks
DK-175 SD-SDI Input Module Kit for TM15-70R
A-TM15-50 Rack-mount hardware for 15-inch monitor (Same as RS-1550)
TTM-20 Monitor slide rail for 19-inch/15-inch monitor
RCT-30A Infrared Remote Controller
SRC-301Z Serial Remote Controller Controls up to 99 monitors with loop through connection
