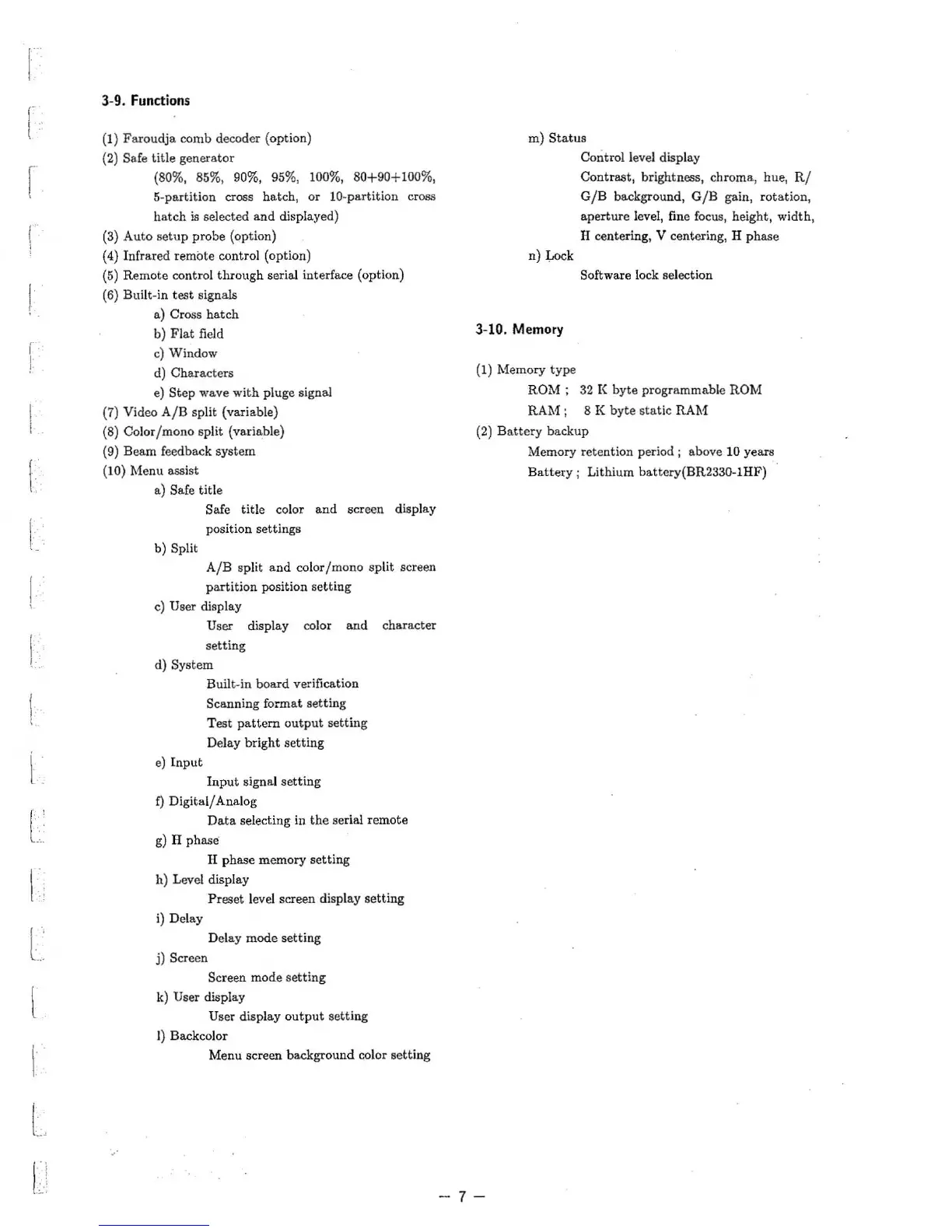

3-9. Functions
(1) Faroudja comb decoder (option)
(2) Safe title generator
(80%, 85%, 90%, 95%, 100%, 80+90+100%,
5-partition cross hatch , or IO-partition
cross
hatch is selected and displayed)
(3) Auto setup probe (option)
(4) Infrared remote control (option)
(5) Remote control throug h serial interface (option)
(6) Built-in test signals
a) Cross hatch
b) Flat field
c) Window
d) Characters
e) Step wave with pluge signal
(7) Video A/B split (variable)
(8) Color /mo no split (variable)
(9) Beam feedback system
(10) Menu assist
a) Safe title
b) Split
Safe title color and screen display
position settings
A/B split and color/mono split screen
partition position setting
c) User display
User display color and character
setting
d) System
e) Input
Built-in board verification
Scanning format setting
Test pattern output setting
Delay bright setting
Input signal setting
f) Digital/ Analog
Data selecting in the serial remote
g) H
phase
H phase memory setting
h) Level display
Preset level screen display setting
i) Delay
Delay mode setting
j) Screen
Screen mode setting
k) User display
User display output sett ing
1) Backcolor
Menu screen background color setting
m) Status
n)J;,ock
Control level display
Cont ra.st, brightness , chroma , hue, R/
G /B background, G /B gain, rotation,
aperture level, fine focus, height, width,
H centering, V centering, H phase
Software lock selection
3-10. Memory
(1) Memory type
ROM ; 32
K byte programmable ROM
RAM ; 8
K byte static RAM
(2) Battery backup
- 7 -
Memory retention period ; above 10 years
Battery ; Lithiu m battery(BR2330-1 HF)
