IKONIX SCI 290 Series - IR Test Parameter Configuration

hipot.com 20
START

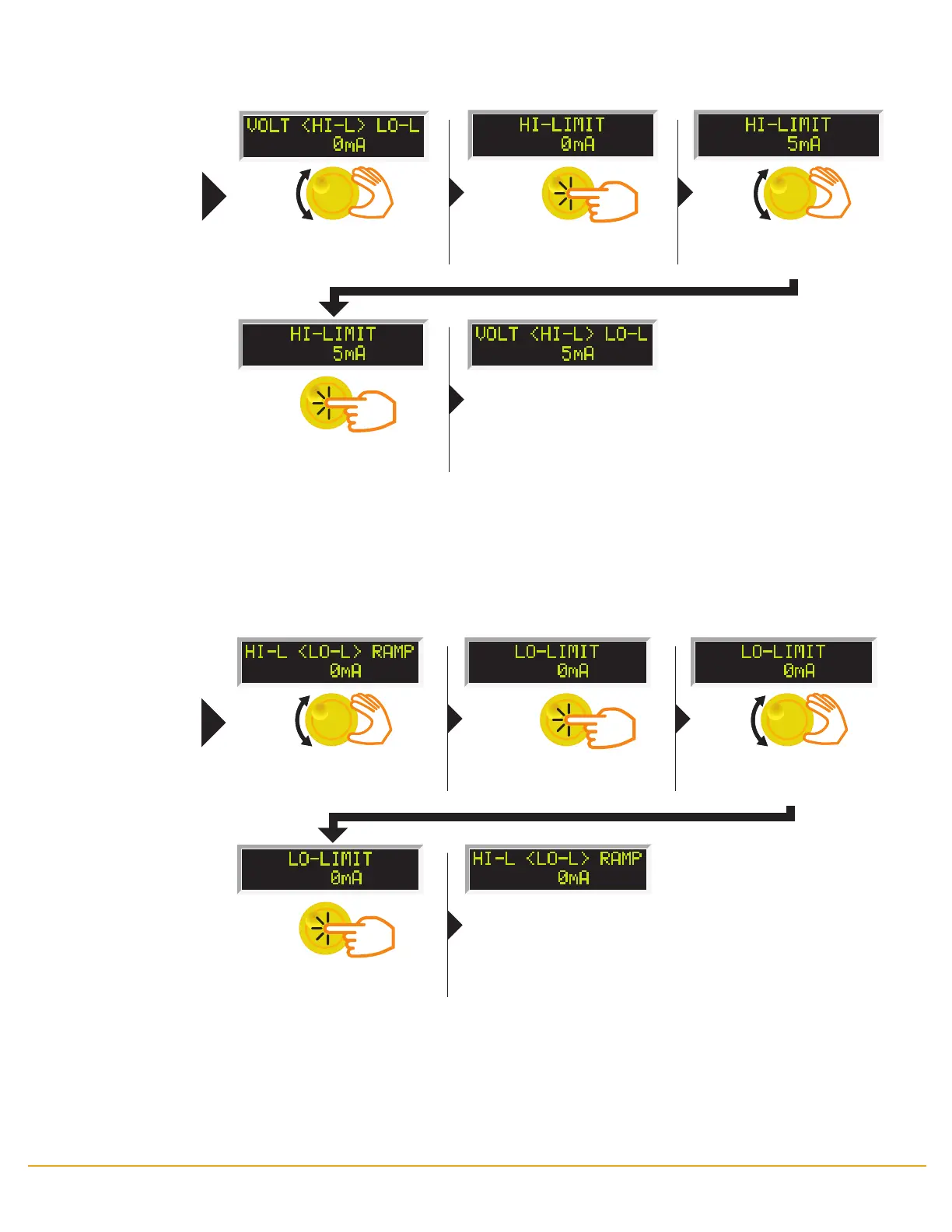

PROGRAM A MEMORY: CHANGE LOLIMIT
When LO-L is selected. Press the
rotary knob to edit the LO-Limit.
The rst digit of LO-Limit will blink.
Turn the yellow rotary knob to
scroll to desired parameter to
edit LO-L.
Turn the rotary knob to change
the LO-Limit setting for each digit.
Press the rotary knob to select
the settingand move to the
next digit.
When done, you will be returned
to the previous menu.
START
PROGRAM A MEMORY: CHANGE HILIMIT
When HI-L is selected. Press the
rotary knob to edit the HI-Limit.
The rst digit of HI-Limit will blink.
Turn the yellow rotary knob to
scroll to desired parameter to
edit HI-L.
Turn the rotary knob to change
the HI-Limit setting for each digit.
Press the rotary knob to select the
setting and move to the next digit.
When done, you will be returned
to the previous menu.
