iLO IWT3206 - Page 41

8-10

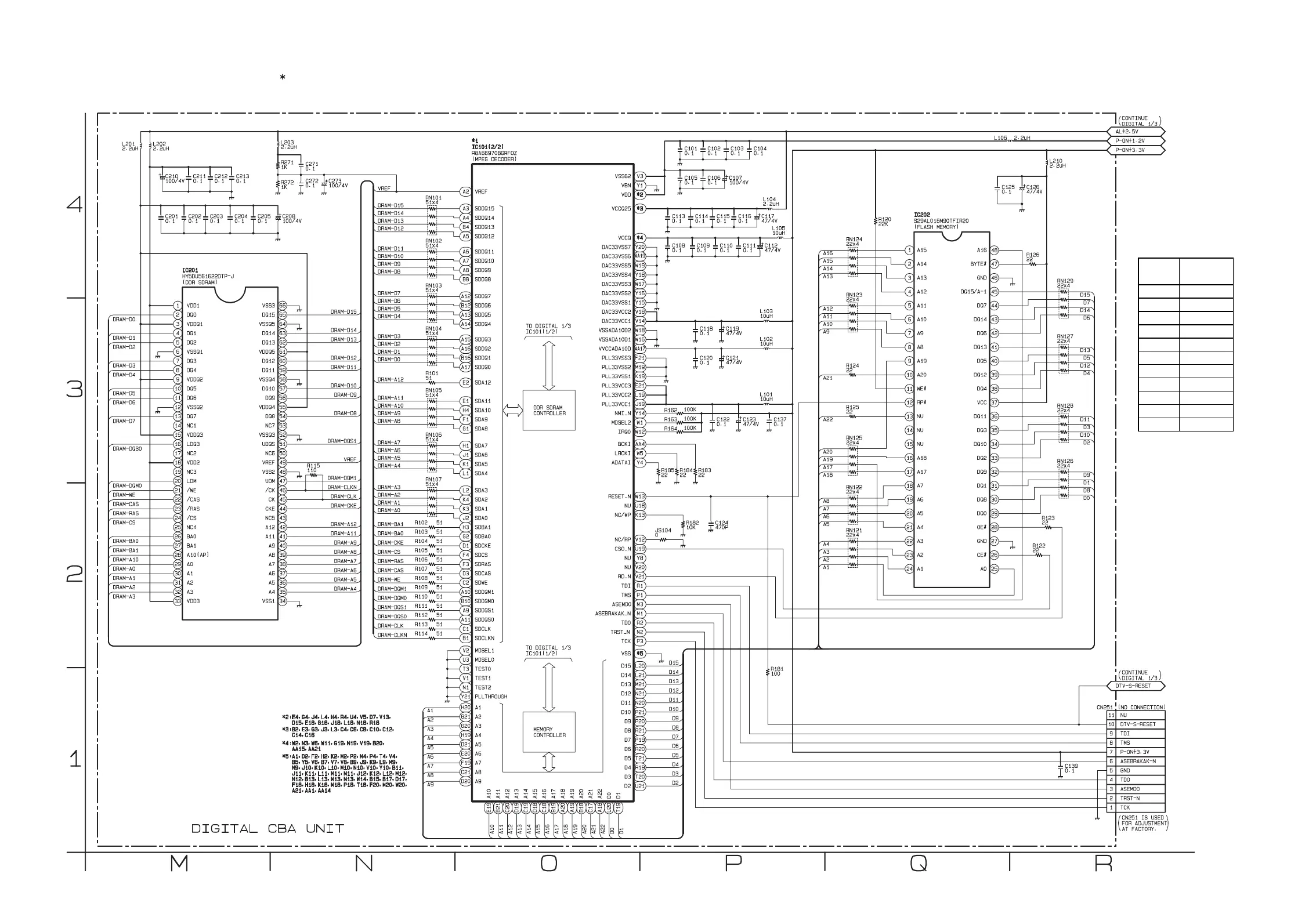

Digital 3/3 Schematic Diagram
L4903SCD3
1 NOTE:
1. The order of pins shown in this diagram is different from that of actual IC101.
2. IC101 is divided into two and shown as IC101 (1/2) ~ IC101 (2/2) in this Digital Schematic Diagram Section.
CN251
13.2
20
33.2
41.1
50
63.2
73.3
83.2
93.2
10 3.3
11 0
VOLTAGE CHART
Pin No. Voltage
