IMAGO Chip Shot - Page 18

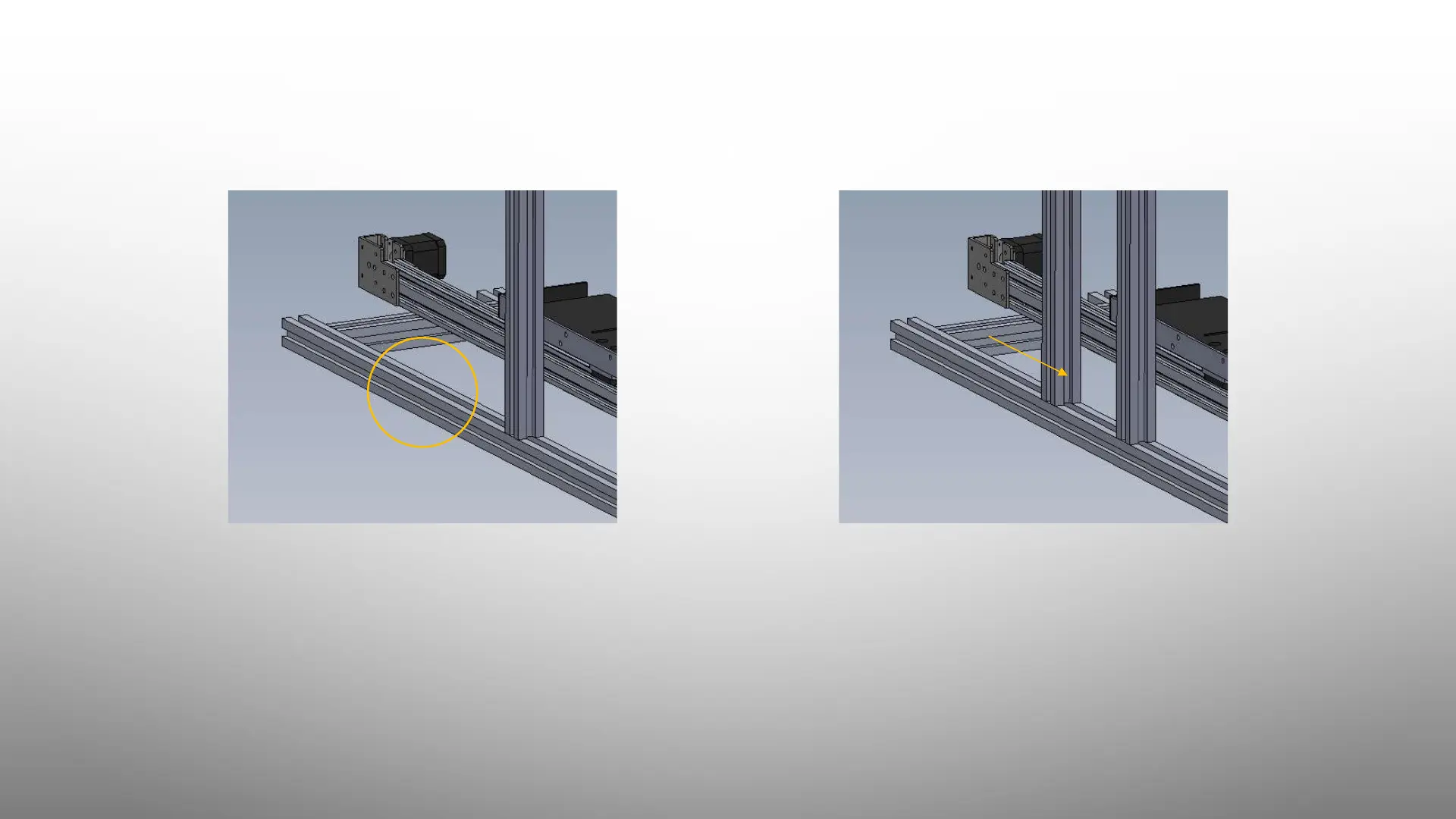

ASSEMBLY- STEP 5
• SIZE 5 ALLEN
• 39.5 CM FROM MOTOR
END, YOU’LL SEE THE POS.
3 DRAWING
• LINE UP EXT. 3 ONTO
POS. 3 DRAWING
• MAKE SURE EXT. 3 SLOTS
LINE UP WITH EXT. 2 AND
LOWER FRAME SLOTS
