IMAGO Chip Shot - Page 19

ASSEMBLY- STEP 6
• SIZE 5 ALLEN

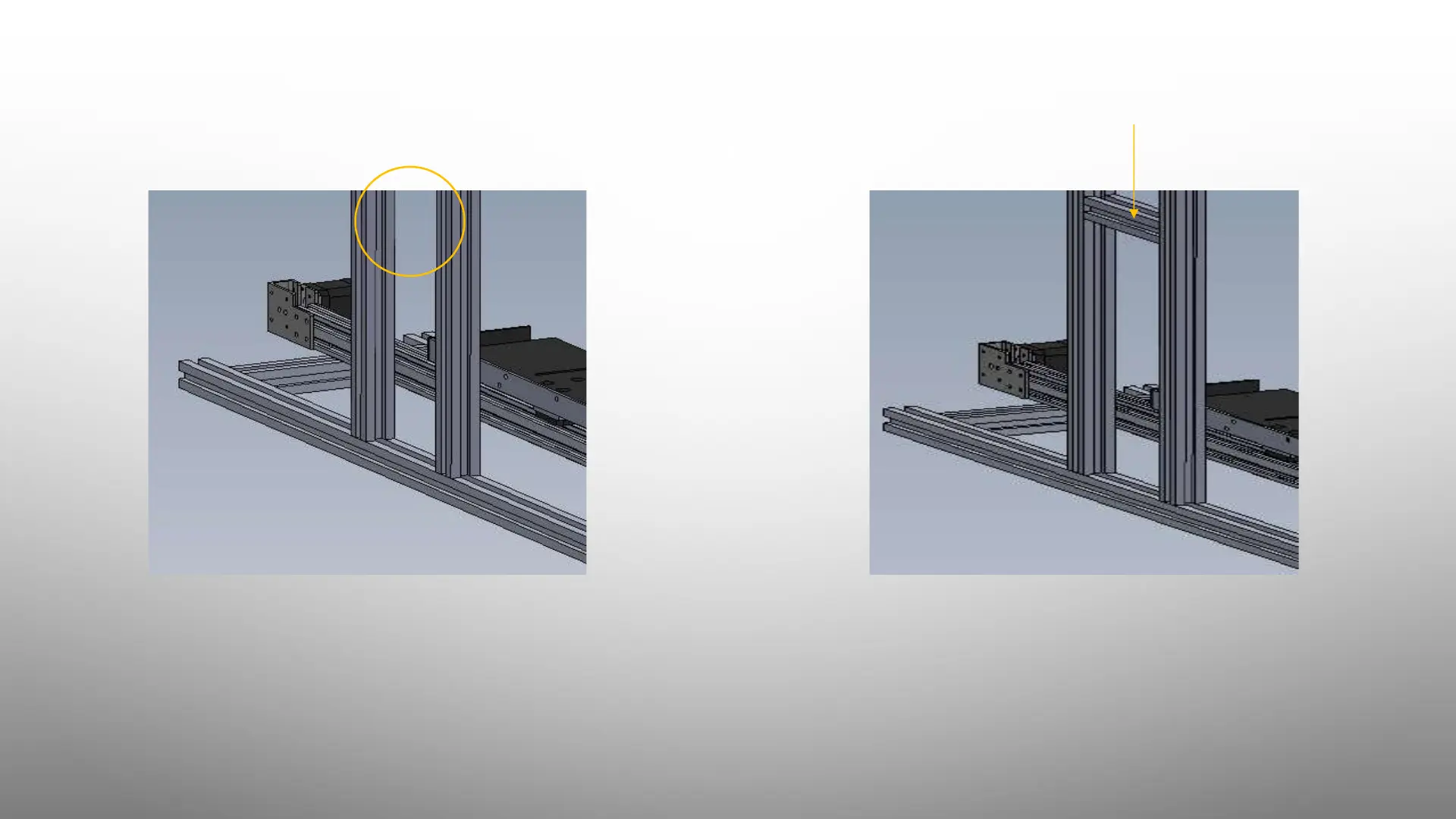

• THE SPACE BETWEEN EXT. 2
AND EXT. 3 IS CIRCLED ABOVE
• SLIDE EXT. 4 BETWEEN EXT. 2
AND 3, WITH SCREWS
FACING OUT
• EXT. 4 HEIGHT FROM BOTTOM
FRAME IS 30.5 CENTIMETERS
