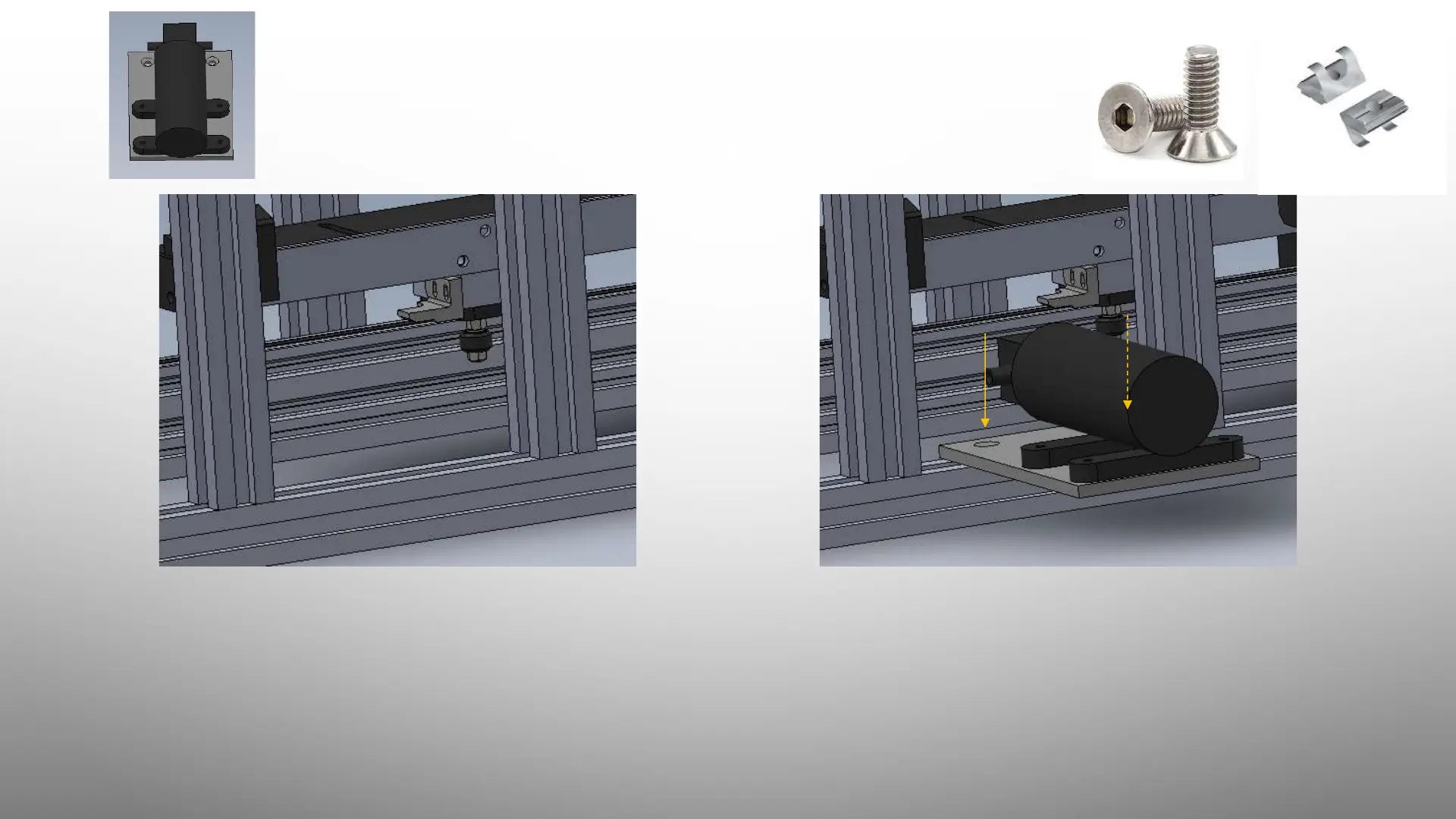

ASSEMBLY- STEP 8
• SIZE 4 ALLEN, BAG A
• UNSCREW THE FLATHEADS FROM
THE T-NUTS
• DROP IN T-NUTS IN BETWEEN EXT.
2 AND EXT. 3
• SCREW THE FLATHEADS THROUGH
THE PUMP MOUNT PLATE INTO
THE T-NUTS
M6x12mm
