IMAGO Chip Shot - Page 24

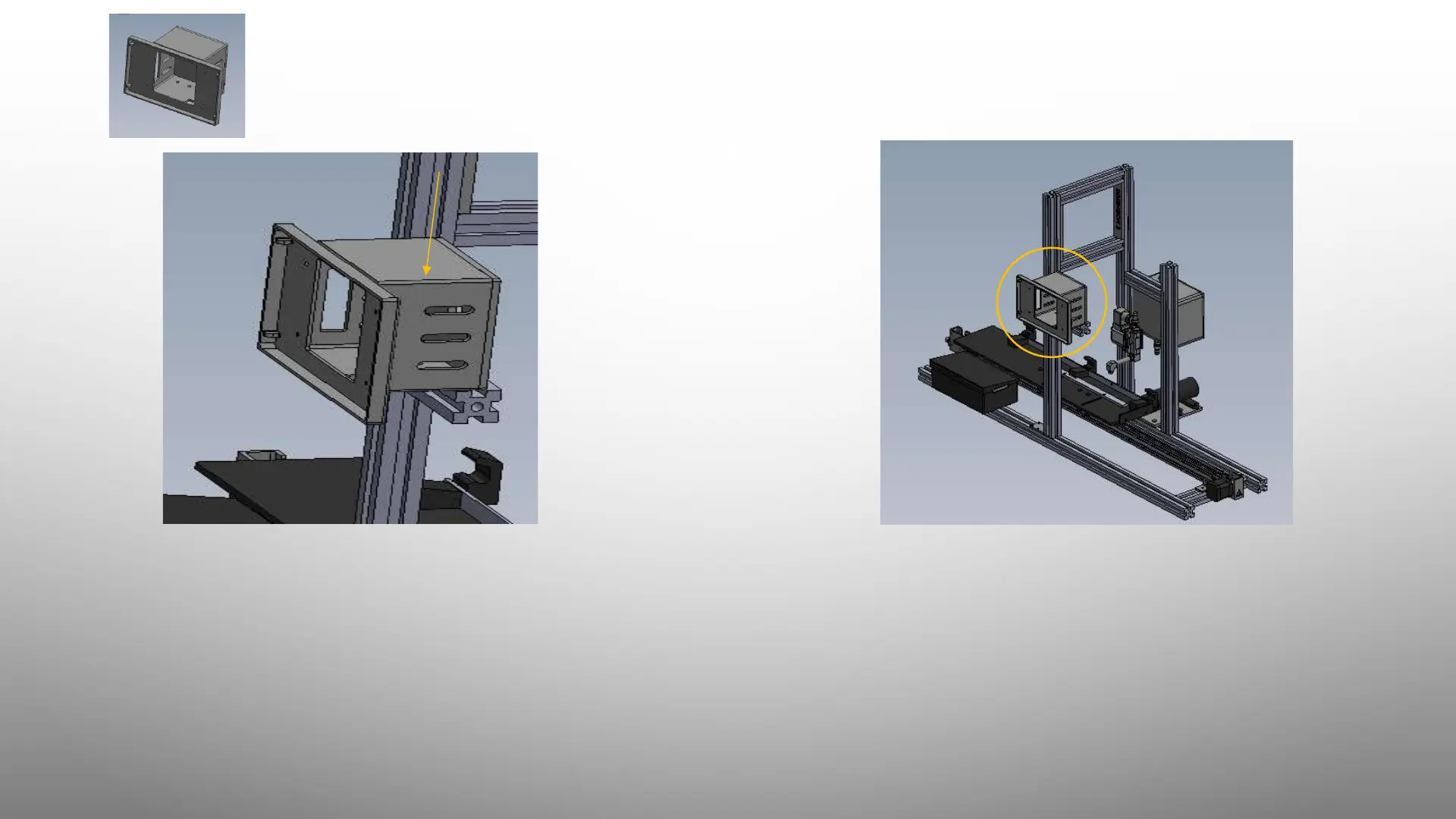

ASSEMBLY- STEP 11
• SIZE 5 ALLEN
• SLIDE THE RASPBERRY
PI’S EXTRUSION INTO
EXT. 1
• LINE UP WITH ALIGNMENT
TAB
• THE RASPBERRY PI EXT.
HEIGHT SHOULD BE 32.5 CM
ABOVE BOTTOM FRAME
