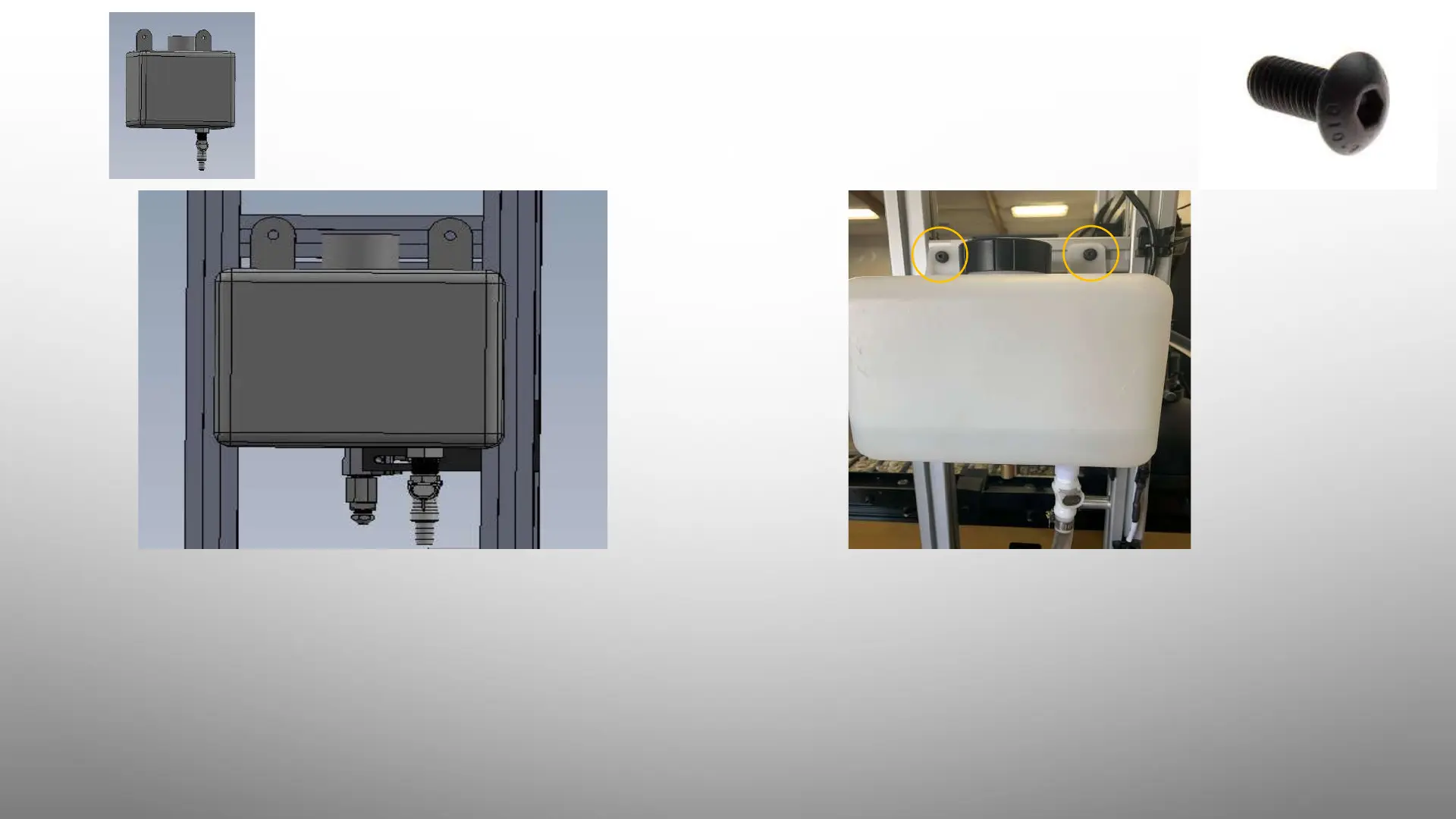

ASSEMBLY- STEP 10
• SIZE 3 ALLEN
• SEE EXT. 2, 3, 4
• LOOSEN THE BUTTON HEAD
SCREWS IN THE T-NUTS ON EXT. 4
• FEED SCREWS THROUGH THE
HOLES ON THE TANK
• MOUNT THE TANK ONTO EXT. 4 AS
SHOWN
M5x10mm
