IMAGO Chip Shot - Page 66

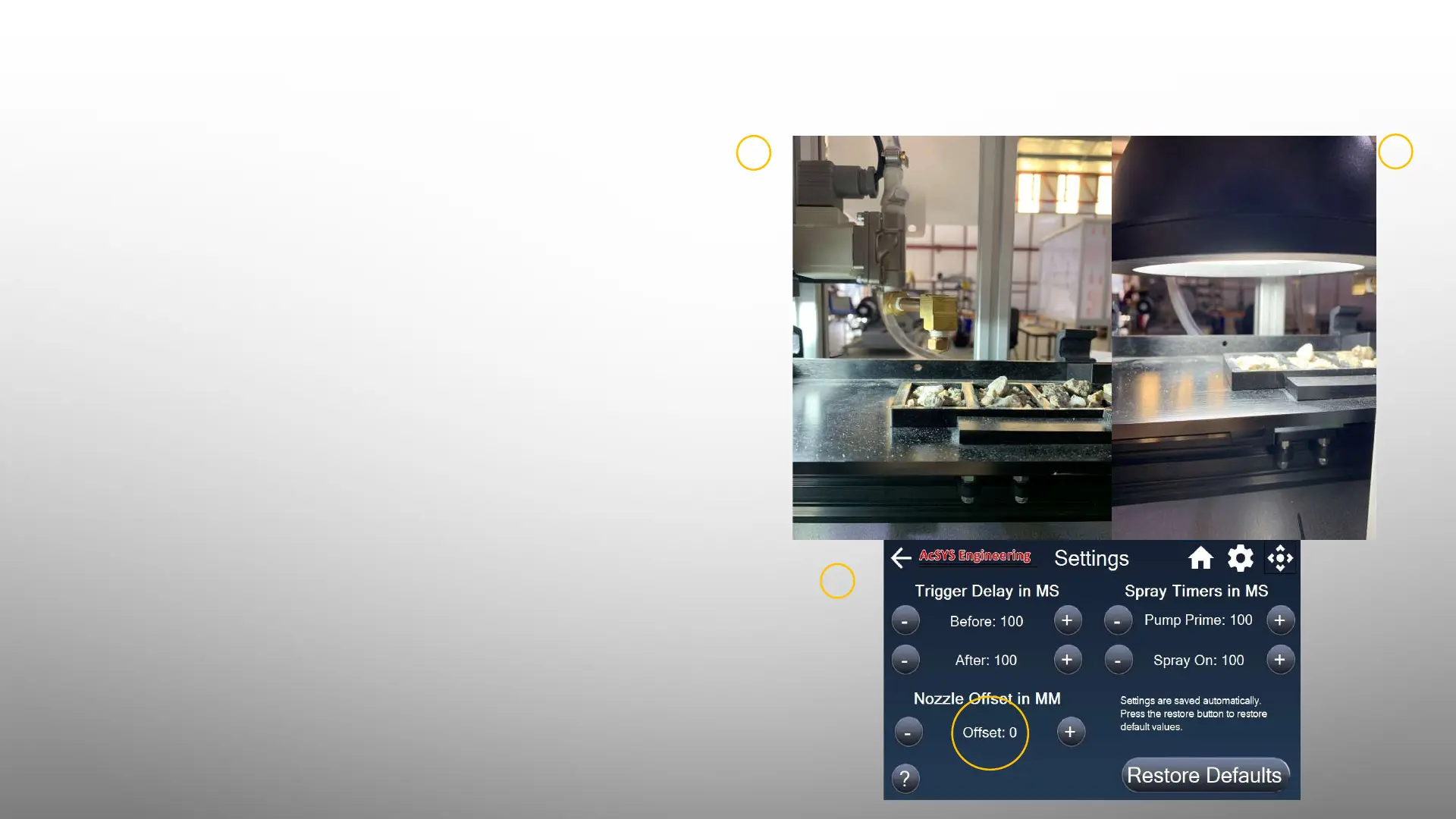

SYSTEM OPERATION- NOZZLE OFFSET
• THE DISTANCE BETWEEN THE WATER
NOZZLE AND THE CAMERA MUST BE SET
1. HOME THE MOTOR, THEN OPEN
MANUAL JOG SCREEN
2. LINE UP THE FIRST SLOT ON THE CHIP
TRAY UNDER THE WATER NOZZLE AND
RECORD THE POSITION VALUE
3. LINE UP THE FIRST SLOT ON THE CHIP
TRAY UNDER THE CAMERA AND
RECORD THE POSITION VALUE
4. CALCULATE THE DIFFERENCE
5. IN SETTINGS – GENERAL SETTINGS –
NOZZLE OFFSET, SET THE CALCULATED
VALUE
2 3
5
