SYSTEM OPERATION- TENSIONING THE
BELT

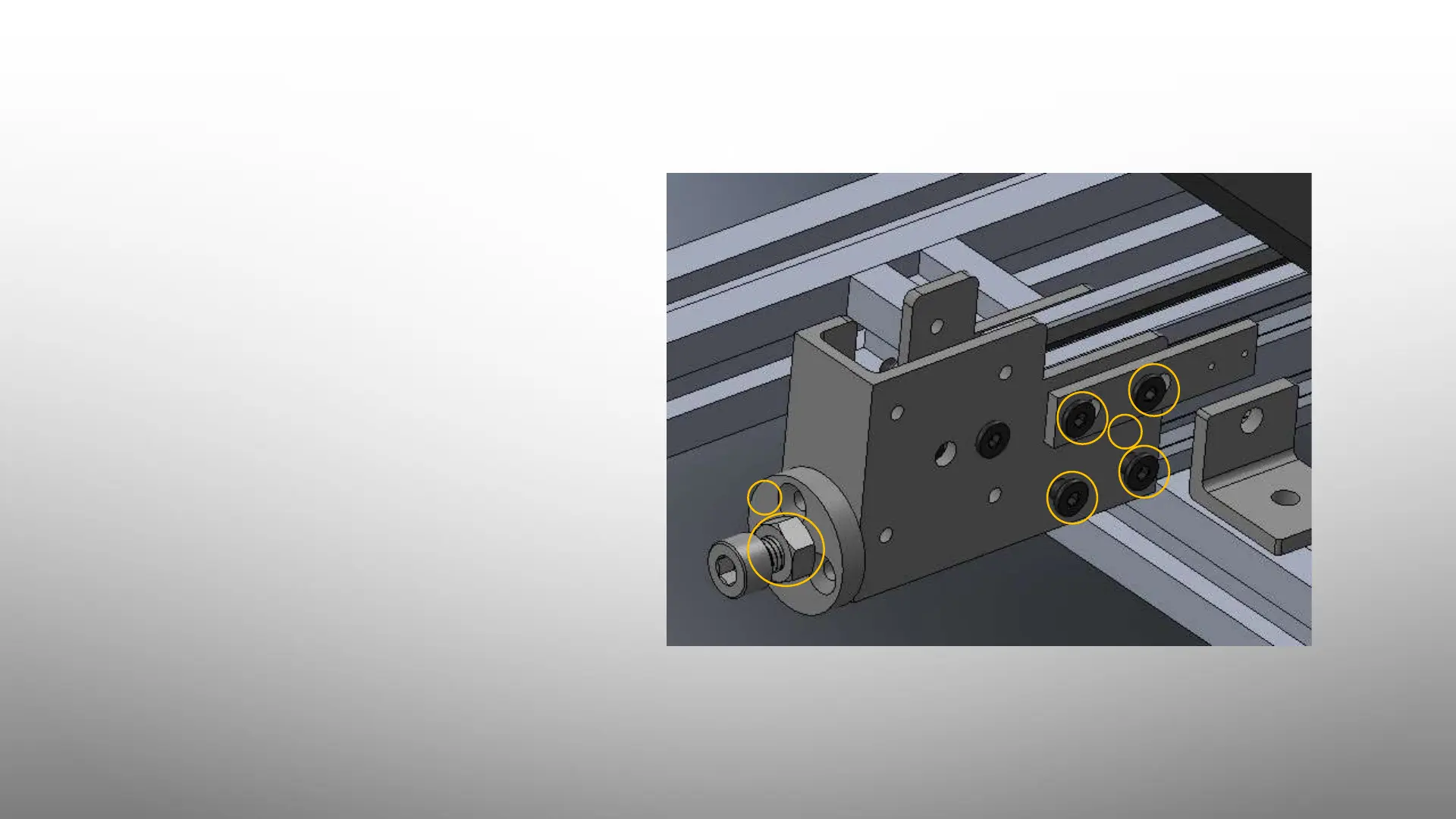

• THE MOTOR BELT MIGHT NEED TO BE
TENSIONED IF THE BELT IS TOO LOOSE
1. LOOSEN THE M8 HEX NUT AND
MOUNTING SCREWS ON THE SIDES
OF THE BRACKET
2. TIGHTEN THE M8 SCREW ON THE END
OF THE MOUNT UNTIL THE BELT IS
TENSIONED
3. TIGHTEN THE M8 HEX NUT AND THE
MOUNTING SCREWS
1B
1A AND FLIP SIDE
