FITTING WOOD FRONT TO FRAME
The wood front panel is simply screwed to the frame using self-tapping screws
in the door fixing kit, the principle is the same for all sized doors. The wood will
require routing on the top and bottom to allow the frame to sit flush on the top
and to ensure correct operation of the door locks on the bottom. Full
dimensional drawings for the wood doors are available by contacting Lincat/IMC
if required.

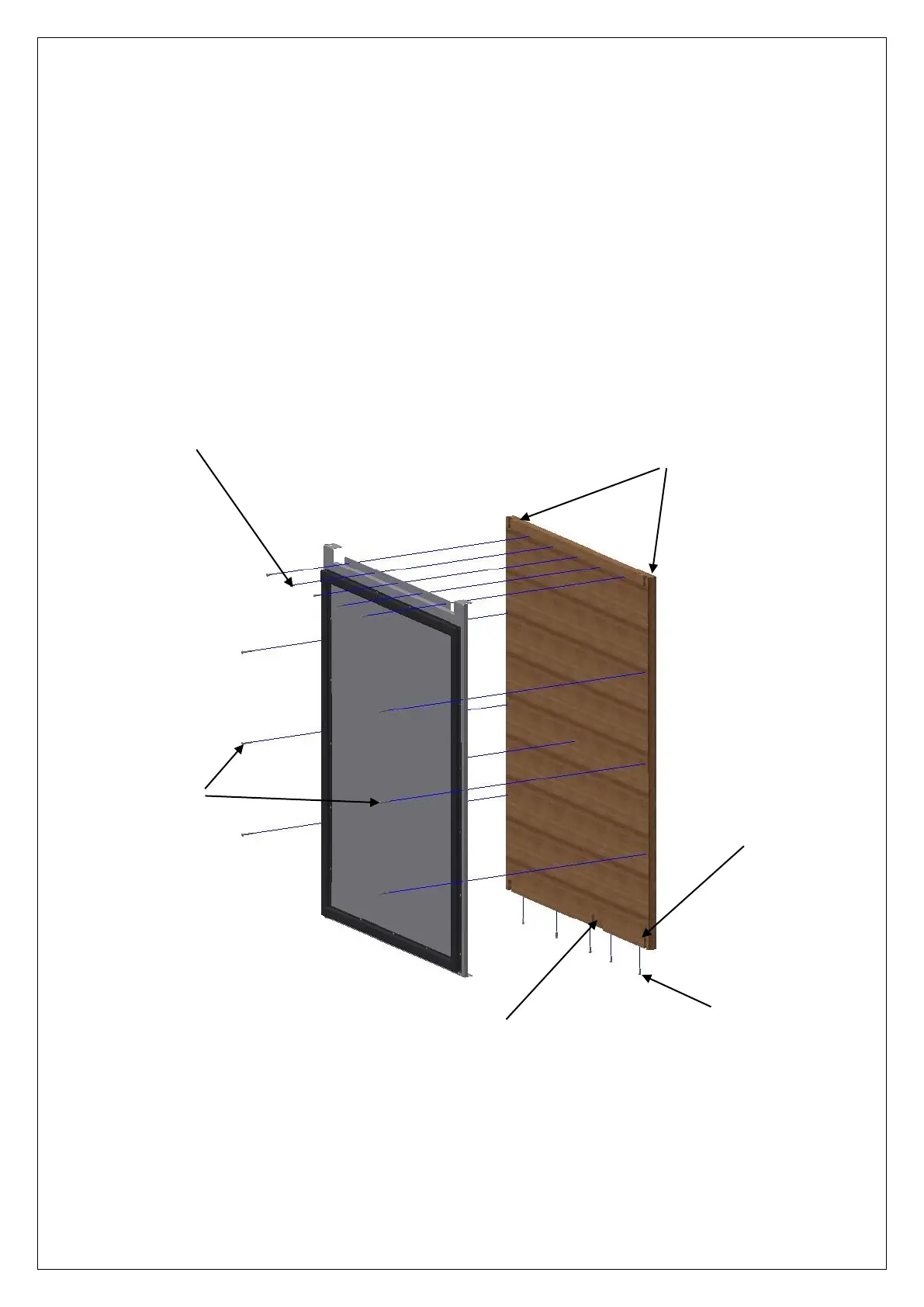

Long Self Tapping
Screws on Sides
Short Self Tapping
Screws on Top &
Bottom
Short Self Tapping
Screws on Top &
Bottom
Recess For Frame to Sit
Flush & Hinge Pins
To Next Page
