IME NEMO 96 HD - Password 2001 access; Password 3002 access

02/18 E01 10783511 WEB E cod.MF9600.
10
Nemo 96 HD

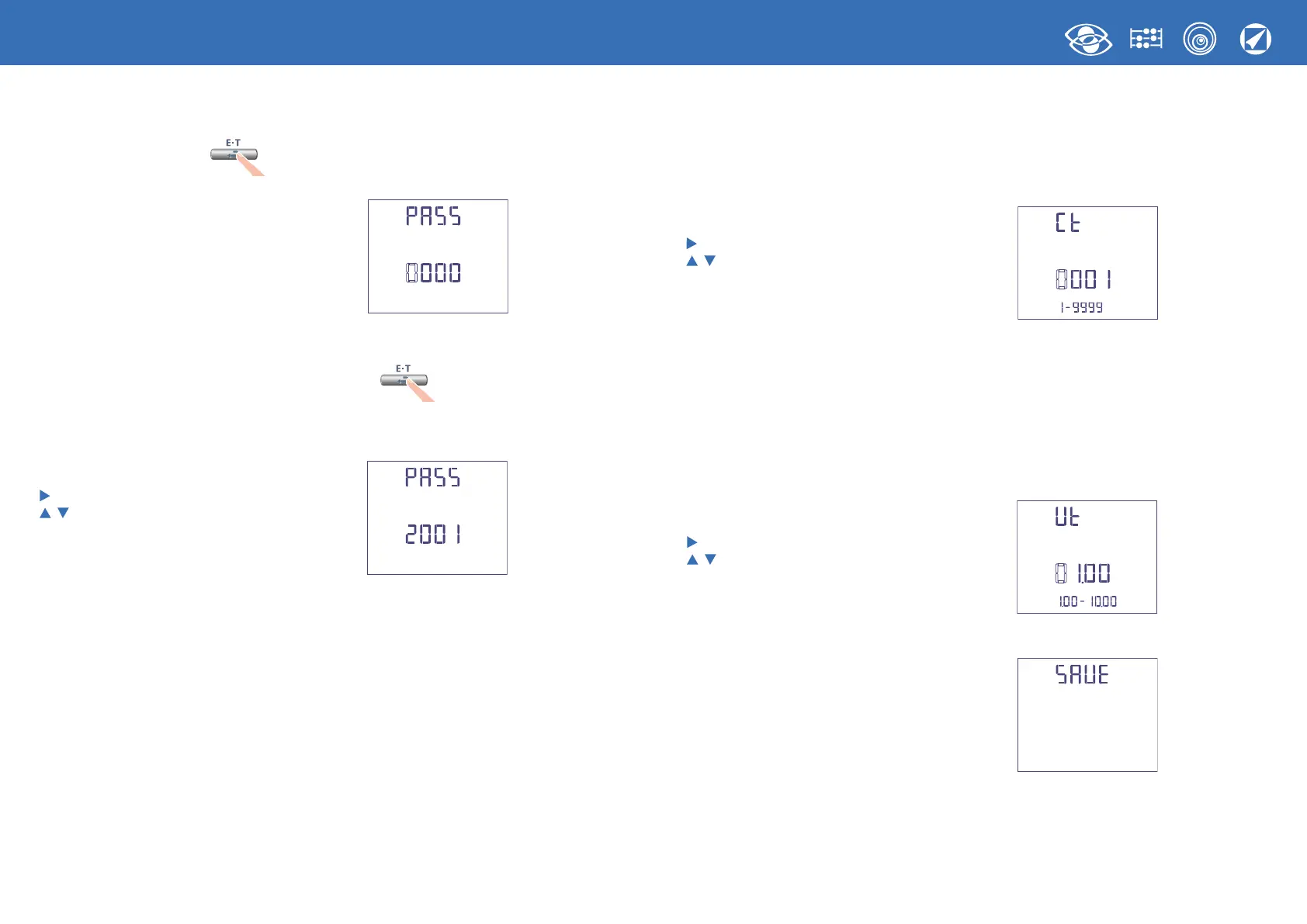

2.0 Password 2001
Press key
Load password 2001 and confirm
moves the cursor
increases/decreases the loaded value
↵
confirms
2.1 External CT ratio
Ct = External primary/secondary (ex. CT 800/5A Ct = 160)
Selection in the field 1...9999 (max. primary current 50kA/5A – 10kA/1A)
moves the cursor
increases/decreases the loaded value
↵
confirms
External VT ratio
Vt = External primary/secondary VT ratio (ex. VT 600/100V Vt = 6)
Selection in the field 1,00...10,00 (max. primary voltage VT 1200V)
For voltage direct connection (without external VT) load Vt =1,00
By modifying the Ct and/or Vt ratios, the KWH meters are automatically
reset.
moves the cursor
increases/decreases the loaded value
↵
confirms
