Nemo 96 HD+

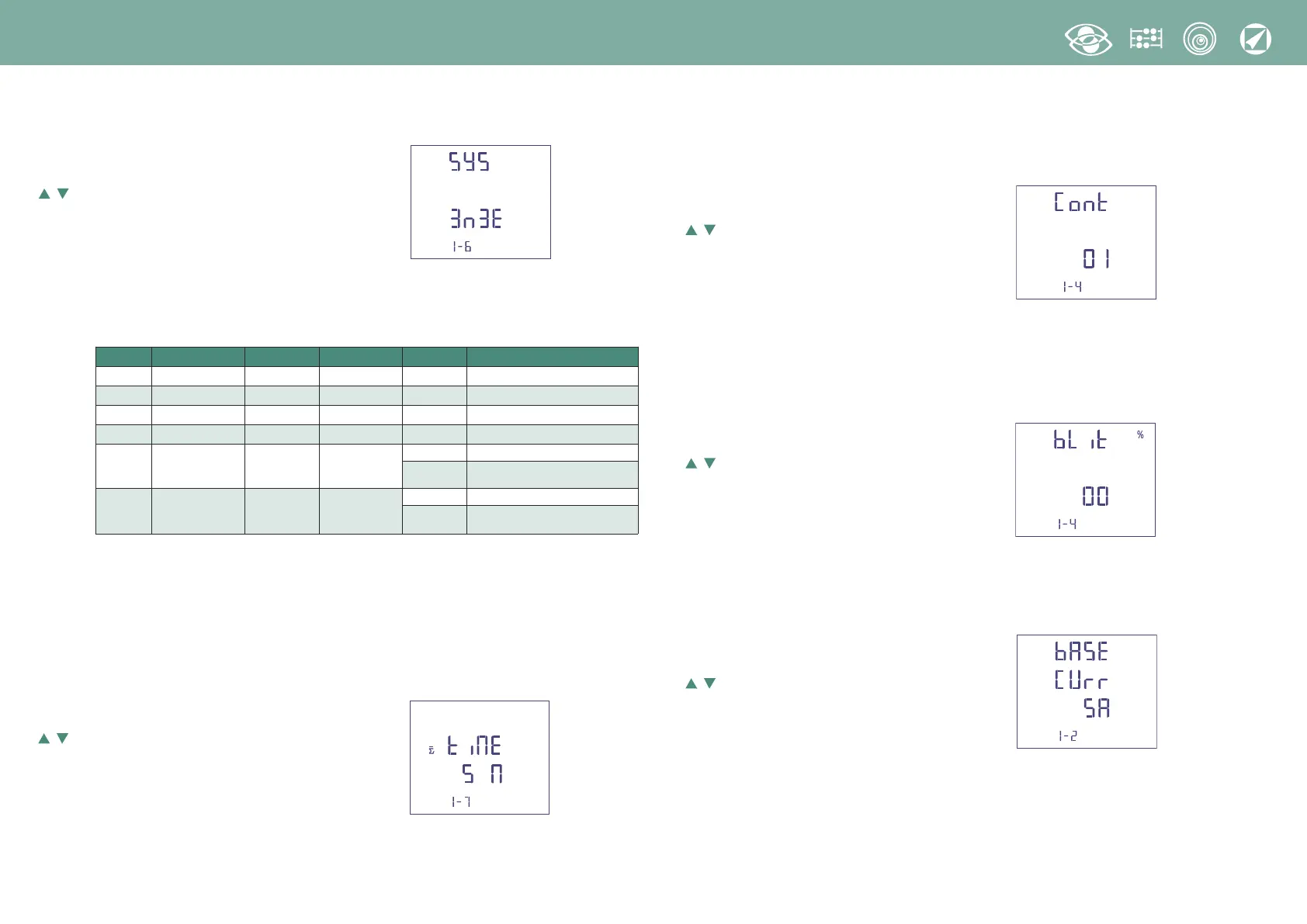

1.2 Connection
selects connection
↵
confirms
select the desired connection and scrupulously respect the linked wiring diagram.
The selectable wiring diagrams are:
1.3 Current delay time and average power
Selectable delay time: 5, 8, 10, 15, 20, 30, 60minutes
The selected time is valid both for the current and the average power
selects the contrast level
↵
confirms
1.4 Display contrast
4 value display
to adjust display contrast
selects the contrast level
↵
confirms
1.5 Display contrast
The 4 selectable levels
(0 – 30 – 70 – 100%)
show the display lighting percentage
selects the lighting level
↵
confirms
1.6 Rated current (external CT secondary winding)
Rated value 1A (external CT with secondary /1A) or 5A (external CT with secondary /5A)
selects 1A or 5A
↵
confirms
Symbol Line Load
n° external CT’S
Wiring Connection
1N1E Sigle-phase - 1 S 1000/292
3-1E 3-phase 3 wires Balanced 1 S 1000/314
3N1E 3-phase 4 wires Balanced 1 S 1000/317
3-2E 3-phase 3 wires Unbalanced 2 S 1000/293 Aron L1 - L3
3-3E 3-phase 3 wires Unbalanced 3
S 1000/294
S 1000299
CT connection with
common point,1 return
3N3E 3-phase 4 wires Unbalanced 3
S 1000/295
S 1000/300
CT connection with
common point,1 return
