Nemo D4-L+

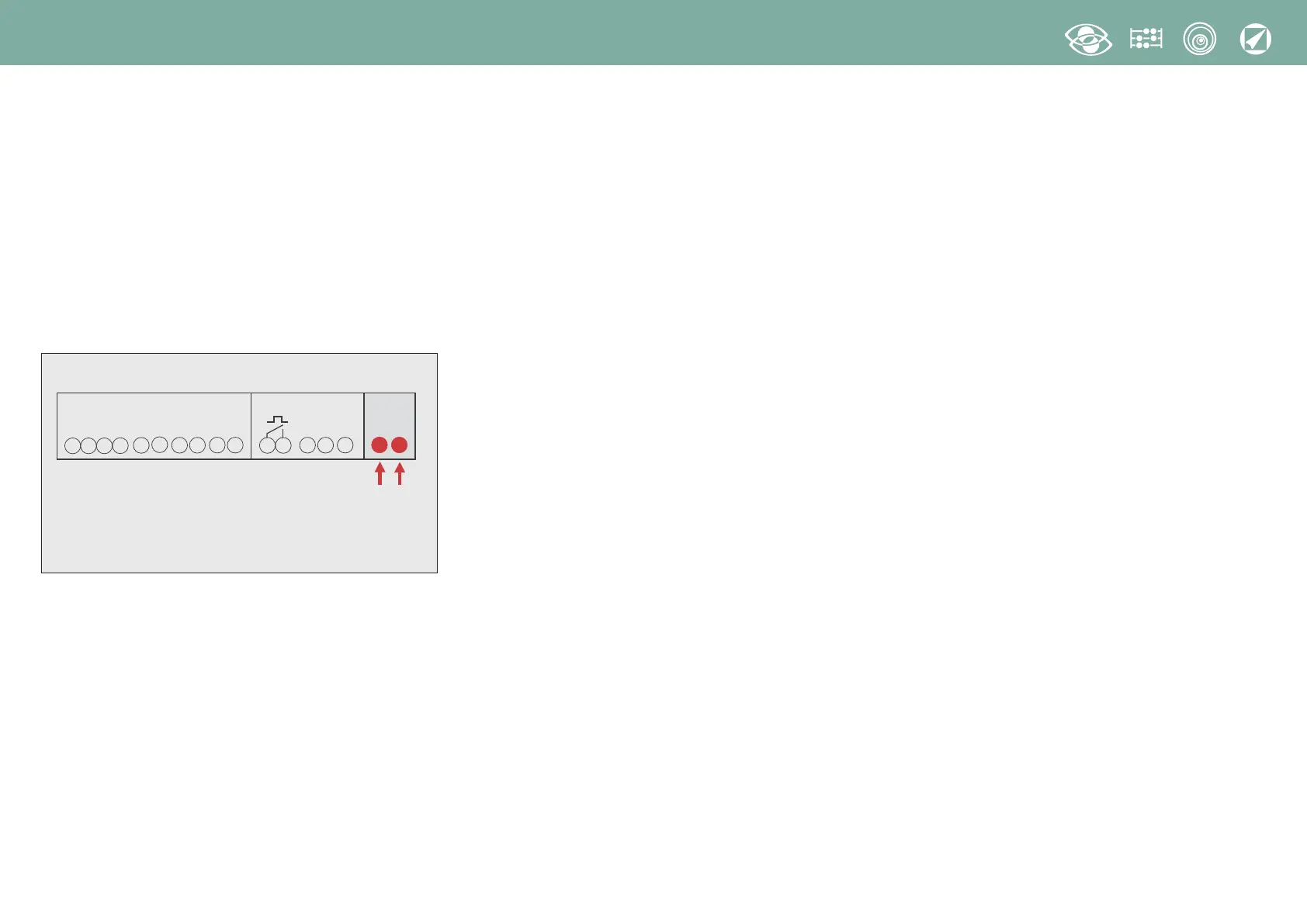

Terminals 20 and 21
Auxliary suppy: direct or alternating current electrical supply which is necessary for
proper working of the device.
Please verify that the available supply voltage meets the one shown on the data label of
the meter
(voltage value and any frequency).
Where a double voltage is shown (for instance 48Vac / 20...150Vdc) the meter can be
fed with alternating voltage 48Vac or direct voltage 20...150Vdc.
In case of direct voltage supply please respect the shown polarities 20+ and 21.
F : 0,5A gG
Auxiliary Supply
I N P U T
VOLTAGE CURRENT
2
58
11
1
3
46
79
O U T P U T
33 34
35
RS 485
Rx / Tx GND
+–
15
29
20
AUX.
SUPPLY
21
Factory setting
Password 1000
Connection: 3n3E 4-wires 3-system line
Average time:15m 15 minutes
Delay time: W
RS485
Address: 255
Speed: 9.6k
Parity: nonE
Time-out: 3ms
BACNET
Address: 01
Speed: 9.6k
Parity: nonE
Network Address: 0010
Pulse output
Energy: Wh
Pulse weight: 0,1kWh
Width of the pulse: 50ms
Display contrast: 0010
Password 2001
CT ratio: 0001
VT ratio: 001,0
