The H110 sawing machine was designed for outdoor use on building sites, for the exclusive purpose of
cutting wood and similar materials (chipboard, plywood, planks, etc.), which do not contain any metal,
plastic or chemical elements, as the latter may give rise to emissions during cutting, which are harmful to health
and the environment. The machine consists of a welded frame on which the following parts are mounted: the
electrical panel [8] (Þ g.1), the motor unit [12], the lower [11] and upper [4] protection guards, the runners and
the workpiece guide square [5] and an additional table [1]. The disc is rotated by means of pulleys connected to
the electric motor by V-belts. The H110R sawing machine is equipped with a lever [9] (Þ g.1) for adjusting the
cutting height from 0 to 110 mm. On the H110F model, this height remains Þ xed at 110 mm.
Table 1
SPECIFICATION U.M.
H110F PART NO. 1188471
H110R PART NO. 1188474
H110R PART NO. 1188485
H110F PART NO. 1188472
H110R PART NO. 1188475
H110R COD. 1188473
Main table dimensionse [1] mm 700 x 900 700 x 900 700 x 900 700 x 900
Additional table dimensionso [2] mm 500 x 740 500 x 740 500 x 740 500 x 740
Maximum overall dimensions mm 720 x 1640 x 1000(h) 720 x 1640 x 1000(h) 720 x 1640 x 1000(h) 720 x 1640 x 1000(h)
Weight kg ~85 ~85 ~85 ~85
Drive unit V-Hz, kW 230V - 50Hz, kW 2.5 220V - 60Hz, kW 2.5 380V - 50Hz, kW 3.0 110V - 50Hz, kW 2.0
Duty S6
Insulation class F
Protection rating IP55
Blade rpm rpm 3200 3200 3200 3200
Type and number of blade teeth - with widia teeth, Z28 with widia teeth, Z28 with widia teeth, Z28 with widia teeth, Z28
Blade cutting thickness mm 3.2 3.2 3.2 3.2
Blade external diameter mm 315 315 315 315
Blade hole mm 25.4 25.4 25.4 25.4
Direction of rotation Direction Clockwise (see Þ g.4) Clockwise (see Þ g.4) Clockwise (see Þ g.4) Clockwise(see Þ g.4)
Effective cutting height mm 110 110 110 110
Guaranteed sound power level L
wa
dB(A) 103 103 103 103
Me
asured sound power levelo L
wa
* dB(A) 100 100 100 100
So
und pressure level L
pa
** dB(A) 91 91 91 91
Dust emission mg/Nm
3
16,4 16,4 16,4 16,4
V
ibrations transmitted level Aeq m/s
2
2,37 2,37 2,37 2,37
* Measured value per ISO 7960 (parallelepiped) and 2000/14/EC
(hemisphere).
** Microphone positioned at 1.5m above the ground, 0.4 m from the centre of the blade and 0.2m from the LH side of the blade.
1
)
additional table
2
)
riving knife
3
)
pusher handle
4
)
upper guard
5
)
workpiece guide square
6
)
main table
7
)
data plate
8
)
electrical panel
9
)
cutting height adjuster
10
)
lifting eyelet
11
)
lower guard
12
)
electric motor
13
)
aluminium insert
14
)
cutting disc
15
)
workpiece pusher
16
)
8x70 galvanised split pin
17
)
30 mm fork wrench
18
)
manual
GB
1
2
4
5
6
7
8
9
10
12
11
13
14

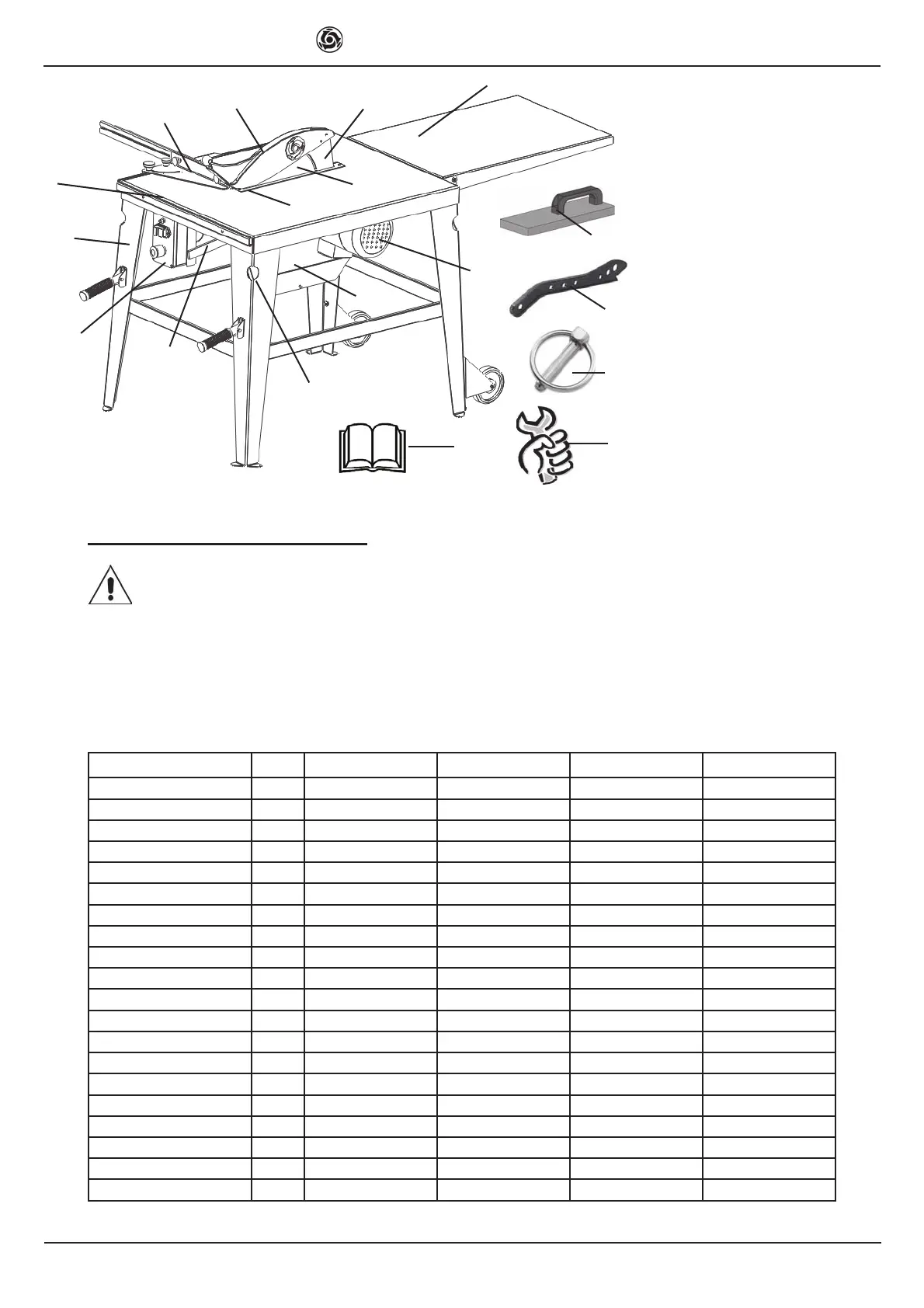

Fig. 1
17
15
16
18
3
