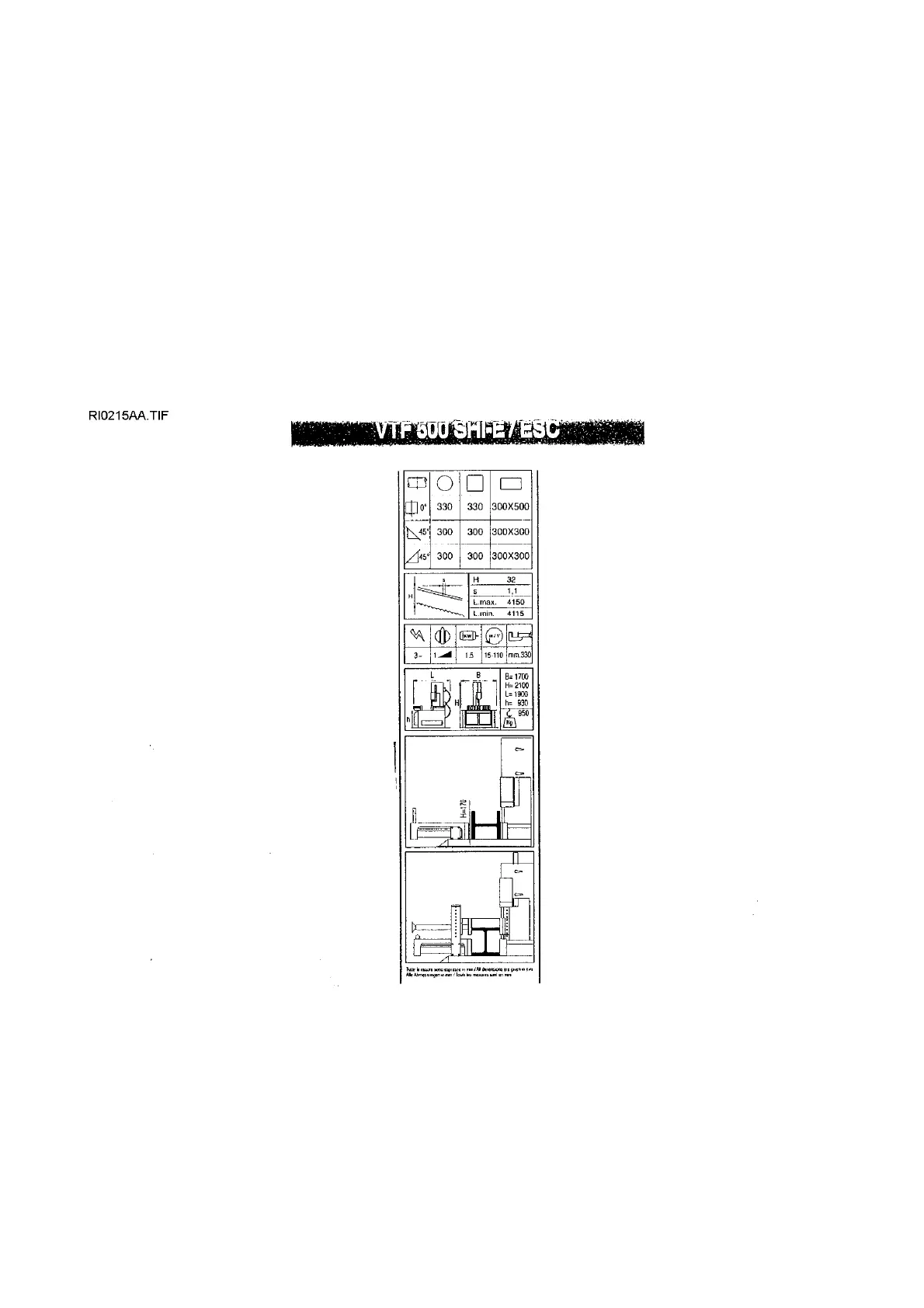

The technical specifications that you will find in the following tables serve to have a general evaluation of the
machine and its performances.
From up to down the tables illustrate :
1) cutting capacity ( maximum possible sizes with the saw frame in vertical position;if the saw frame is low of
5 deg. , the maximum width reduces from 330 mmm to 30 mm).
2) foreseen tool type
3) Type of motors to be used and tool speed; opening vice .
4) exterior sizes and weight of the machine without istalled fittings .
5) profiles cutting without supplementary vice.
6) supplementary vice for clamping profiles .
Other main data are :
Band tensioning = 2200 kg/cmq; jaws height and rear rollers = 170 mm;
work table width = 1200 mm including 5 supporting rollers.
Tank capacity : for the cooling = 30 lit; for the hydraulic oil = 10 lit.
