Connections

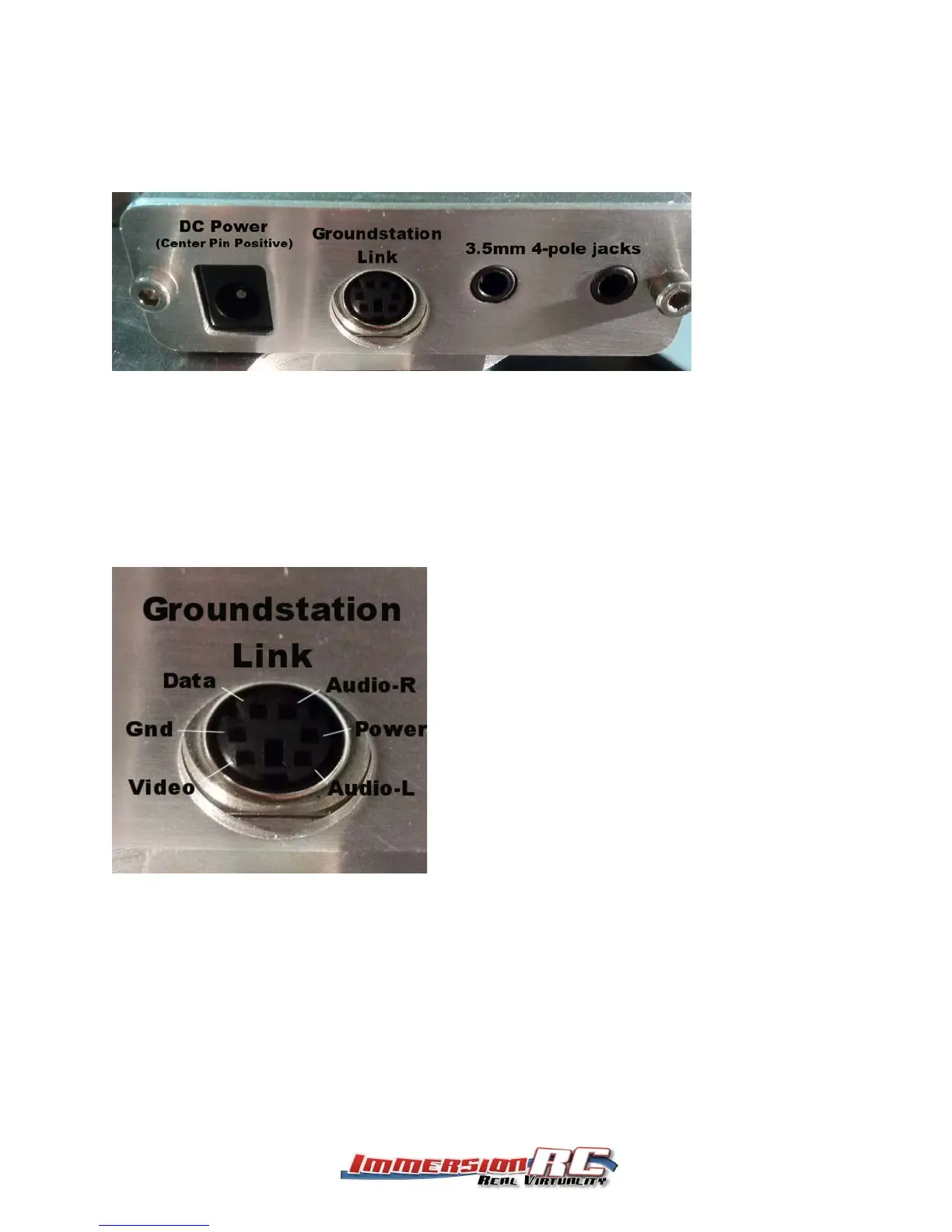

Groundstation Link Connection
The Ground Station link is a standard 6-pin mini-din, as used for many years by PS/2 mice and
keyboards.
Vid Green Brown
Gnd Orange Red
Data Brown Orange
Aud-R Red Blue
Pwr Yellow Green
Aud-L Black Yellow
