GmbH
Measuring cell LF-LED
Hose clip
Control power (230V 50Hz) during filling
waste water
/ note local waste water regulation

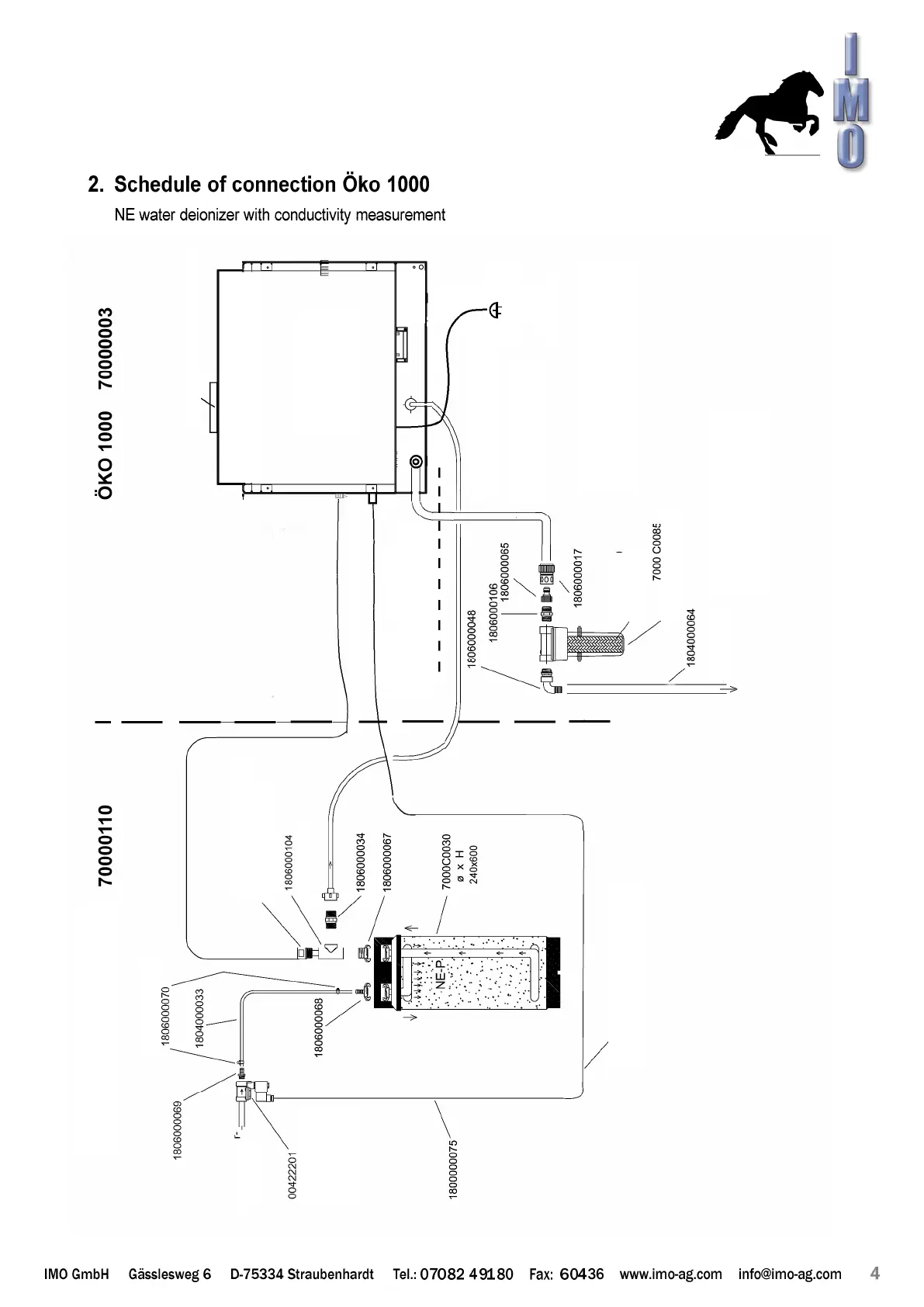

Water connection Öko 1000
Back of machine Öko 1000 H x W x D 52 x 55,5 X 68 cm
0022.7132-05
Fresh water
inlet
7000C0085 filter candle
filter box OSIP
Filter and end of hose not higher than this level!!!
Water discharge hose Öko 1000
Filter has to be fitted lower than machine!
Solenoid valve directly on fixed water connection / note direction of flow
metal t-piece
Waterdeionizer-Unit
airfilter fleece 7200.0412
mains plug
