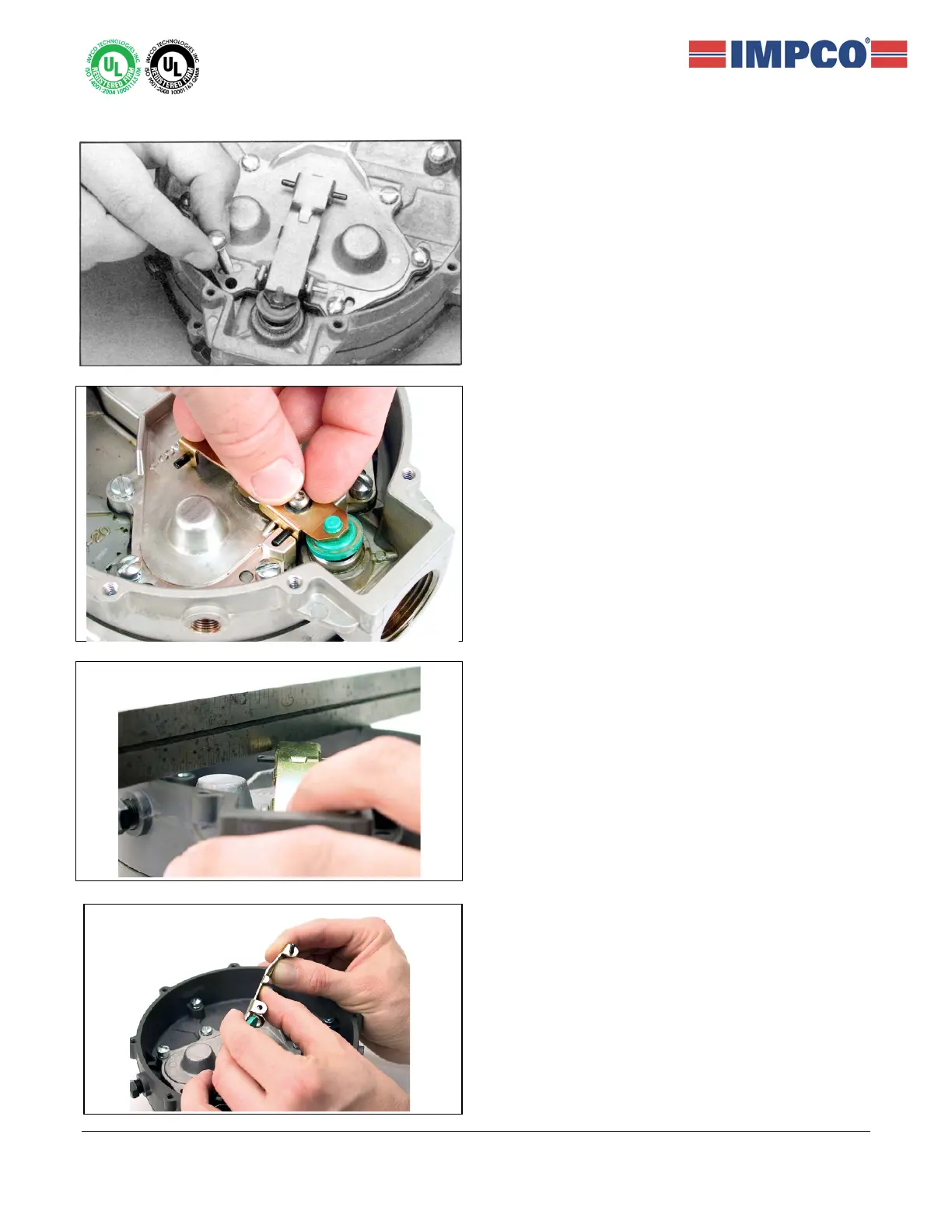

34. Replace the final screw (10) and finger tighten.
Skip to Step 36.
Later Models Only (Skip to Step 36 for Early Models)
35. Insert fulcrum pin (8) through lever (5) and place
in slot on top of primary diaphragm cover (11).
Place washer (25) on screw (24), insert and
tighten until snug.
36. Lightly pull the lever (5) up against the secondary
seat for measuring. Use a straight edge or the
IMPCO G2-2 gauge to check the lever height. The
secondary lever link pin should be approximately
1/32” (0.8mm) below the level of the body casting.
If the lever height is incorrect, continue to Step 37.
Once the lever height is correct, skip to Step 38.
37. If necessary, remove the fulcrum pin (8) and lever
(5) and bend slightly if required. Do not attempt to
bend the lever when installed--unnecessary force
on the lever may damage the secondary seat (6).
