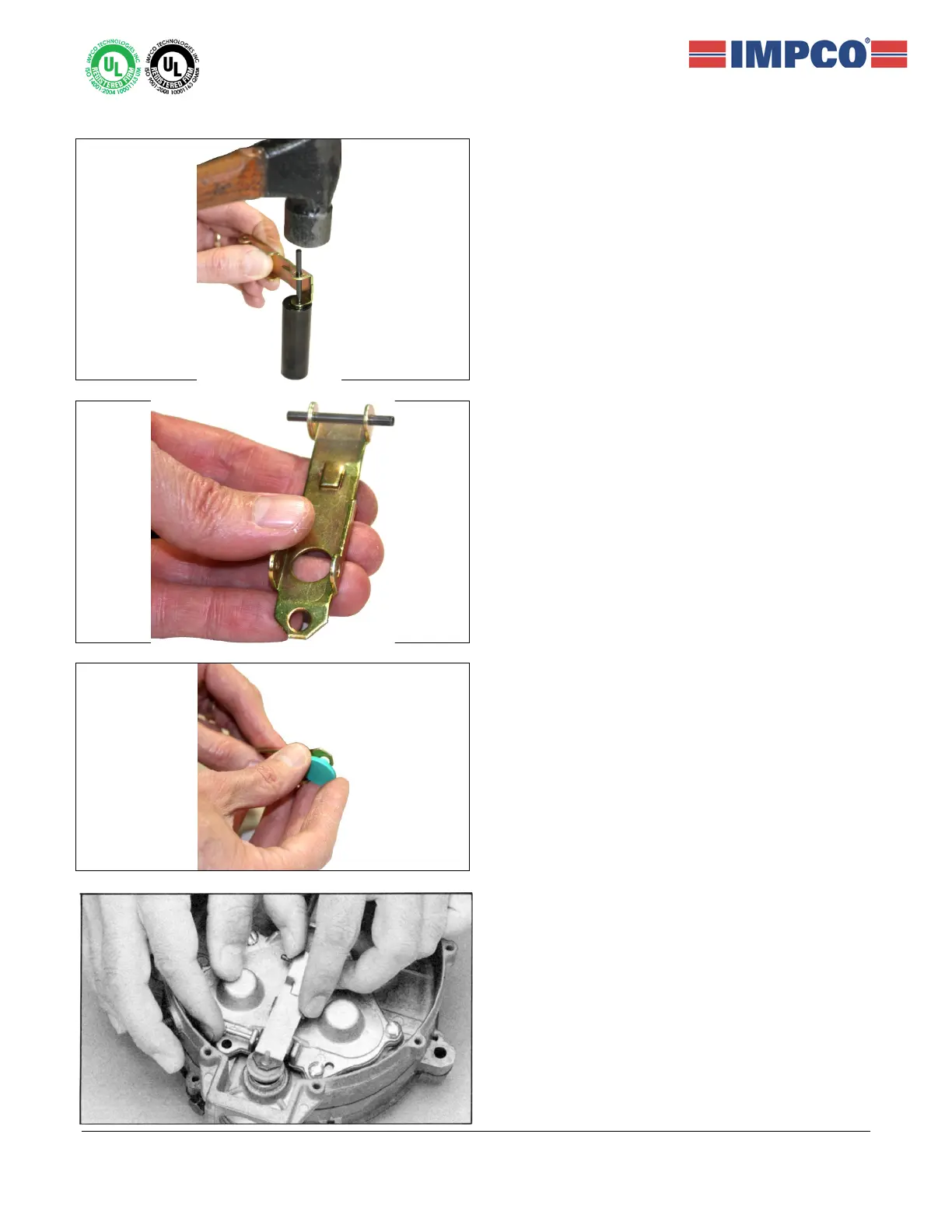

30. Slide the pin through the larger of the two hole
openings of the lever (5) and place over a socket
that will support the area of the lever around the
hole. Using a hammer, knock in the pin (26)
through the smaller hole until it is even on both
sides.
31. Inspect the tabs on the lever (5) to verify they are
not bent and the pin (26) is centered.
32. Insert the seat (6) by pressing the nub through
the hole in the lever (5).
Early Models Only (Skip to Step 35 for Later
Models)
33. Replace the secondary lever (5) and insert the
fulcrum pin (8).
To Next Page
