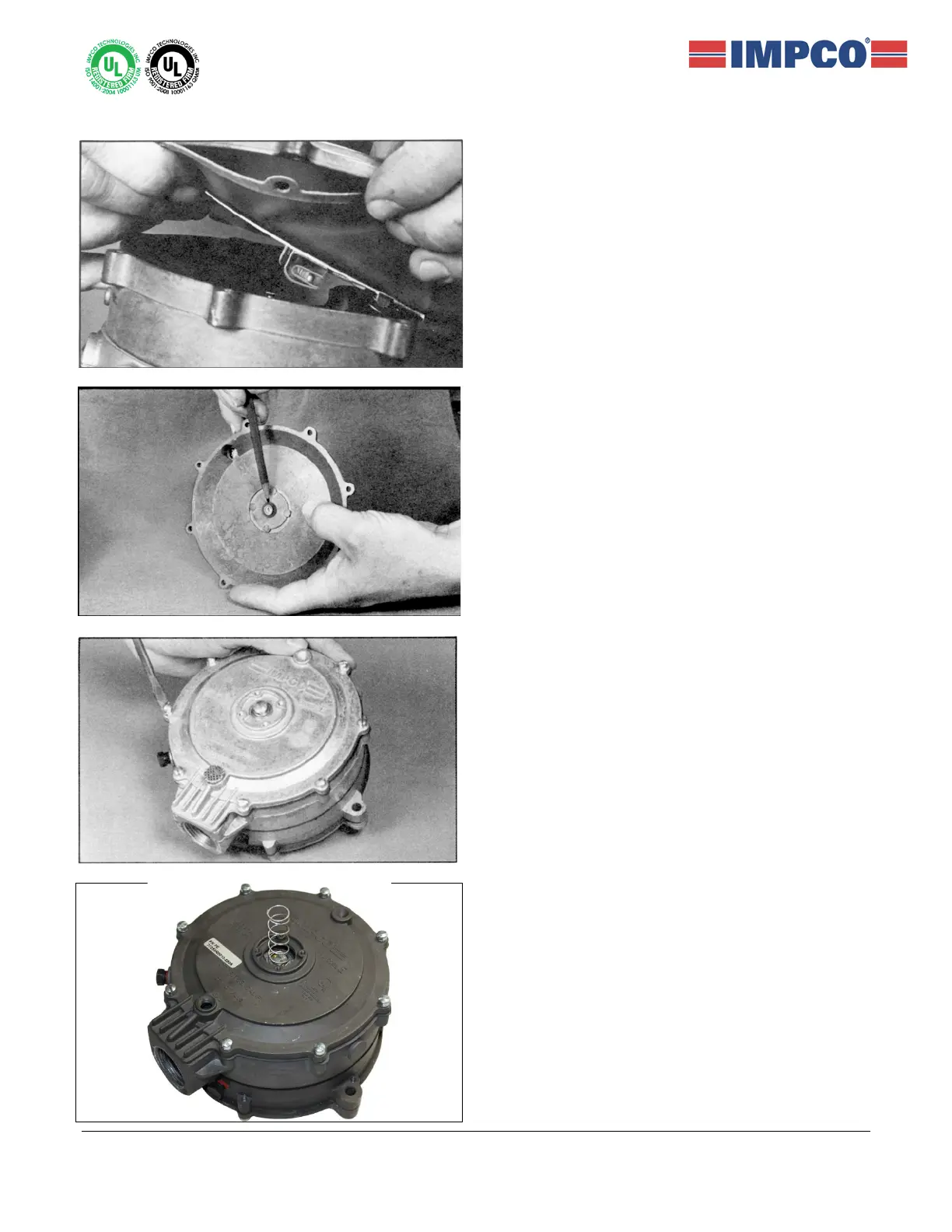

42. Photo shows the link and the link pin properly
connected.
43. Replace hand primer seal washer (6) indicated
by pencil.
44. Replace the cover (3). Turn the eight screws (2)
until all contact the cover. Then tighten in a criss-
cross pattern until are firmly seated. Torque to
25-35 in-lbs. (2.8-4.0 Nm).
45. PE Only (Skip for E): Place the secondary
spring (7) on the secondary diaphragm (4)
perch.
