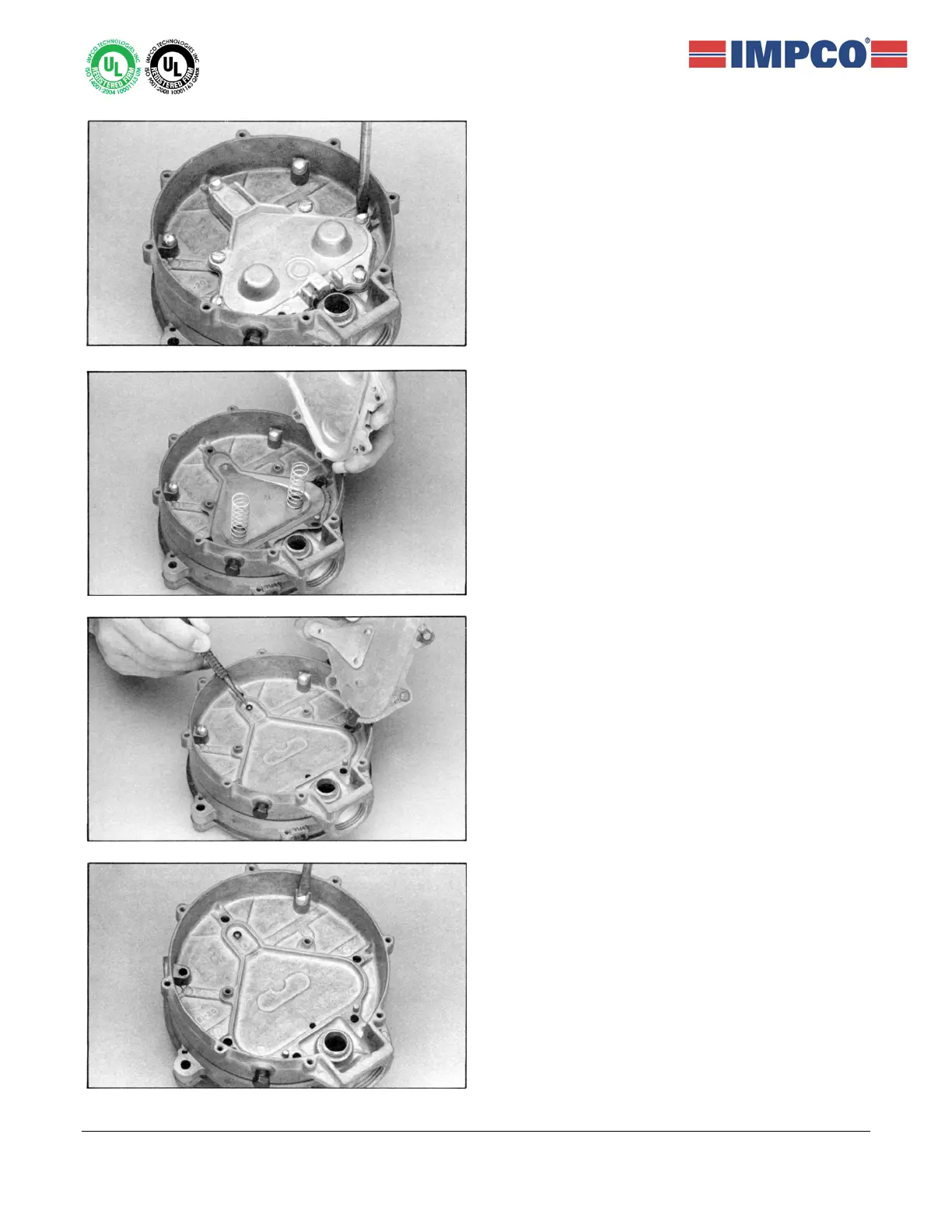

11. Remove the primary diaphragm cover (11). This
requires removal of four fillister head screws (10)
and two pan head screws (9).
12. Remove springs (12) and the primary diaphragm
assembly (13).
13. Remove the primary valve pin (14) as shown by
the tip of the pen.
14. Remove the last two fillister screws (10).
