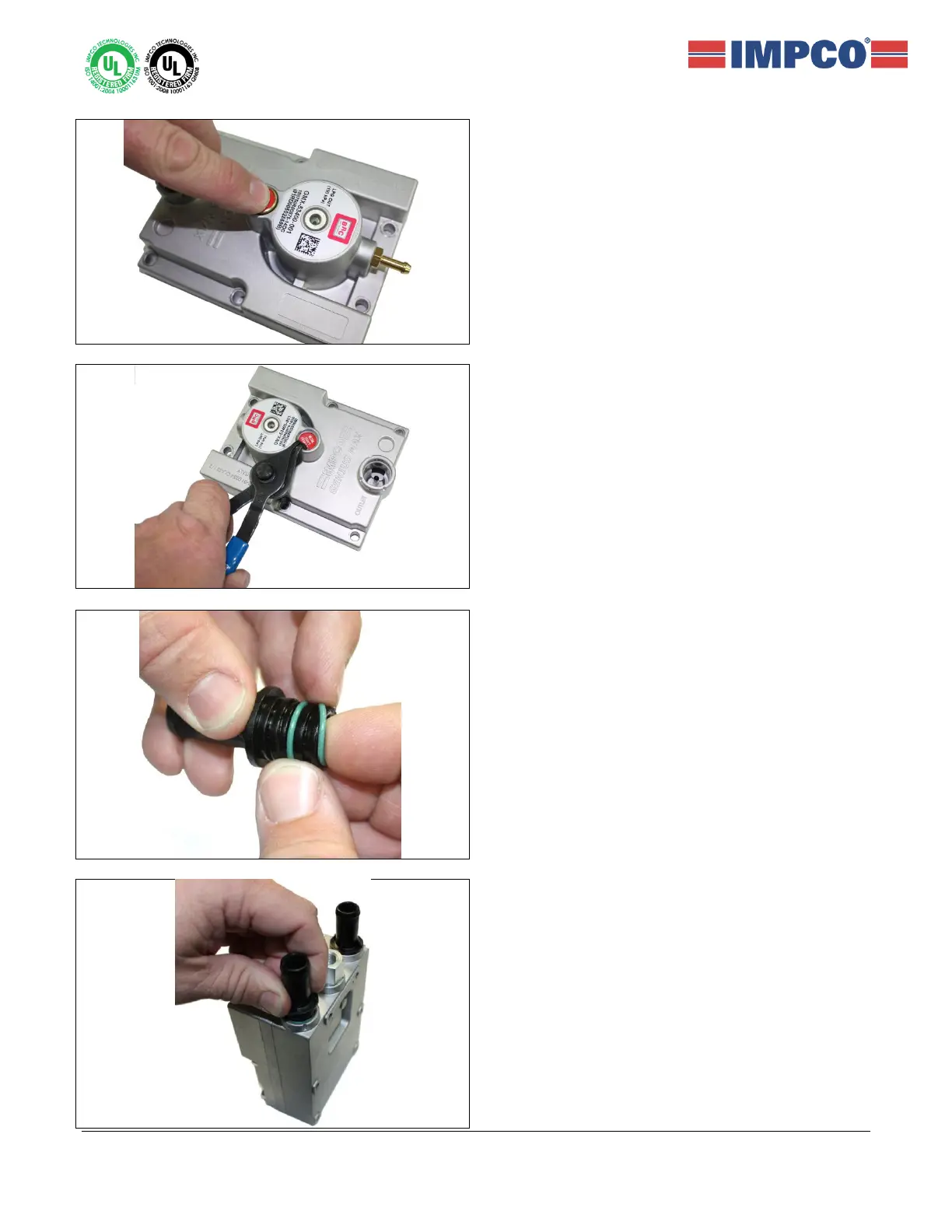

35. Press in the Valve (25) until it seats below the rim
of the Top Body (6).
36. Secure the Valve (25) with the new Ring Clip (26)
using Ring clip pliers.
37. Lubricate O-rings (39) with petroleum jelly or
Vaseline, and place two on each of the Port
Fittings (38).
38. Insert the Coolant Fittings (38) into the ports on
the Lower Body (1) and secure with Retaining
Pins (40).
