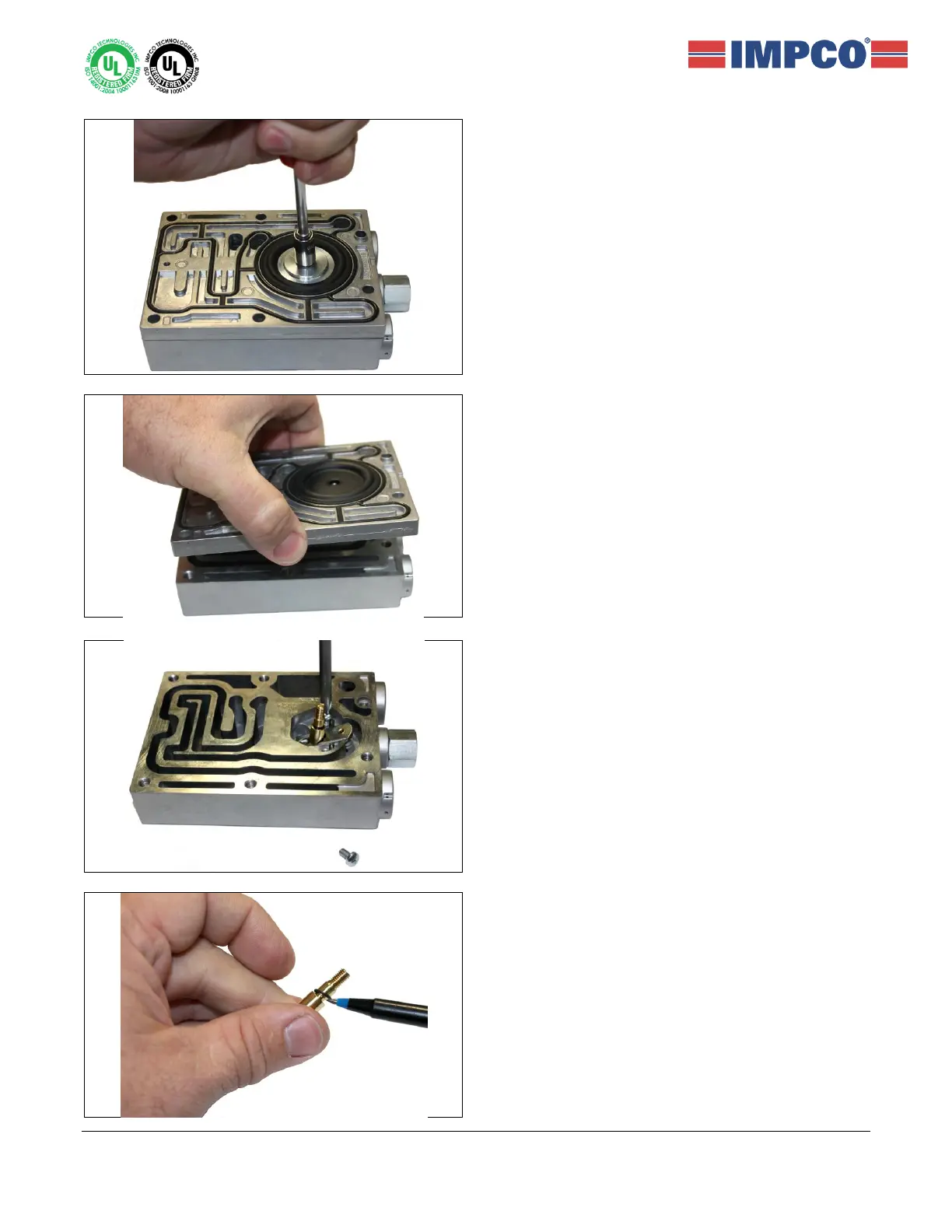

5. Remove the Nut (18) using an 8mm socket. Remove
the Washer (17) and Plate (16).
6. Lift the Body Center (3) from the Lower Body (1).
7. Remove the two screws (11) securing the fulcrum Pin
(10) and remove the Pin and Lever (9) complete with
Seat Holder (7 and 8).
8. Remove the Link Shaft (12) and its O-ring (13).
NOTE: Do not use any sharp objects that might
scratch the brass Link Shaft.
