Impex MARCY SM 2000 - Assembly Step 3: Rear Vertical Beam and Weight Holder

STEP 3 (See Diagram 3)
A.) Insert the Rear Vertical Beam (#23) into the opening on the Rear Stabilizer (#10).
Secure it with two M10 x 2 ½” Allen Bolts (#22), four ∅ ¾” Washers (#5), and two
M10 Aircraft Nuts (#6).
B.)
Slide the Weight Holder (#31) onto the Rear Vertical Beam (#23). Push two Olympic
Sleeves (#33) onto the Weight Holder then attach two Spring Clips (#34) onto the
Sleeves.

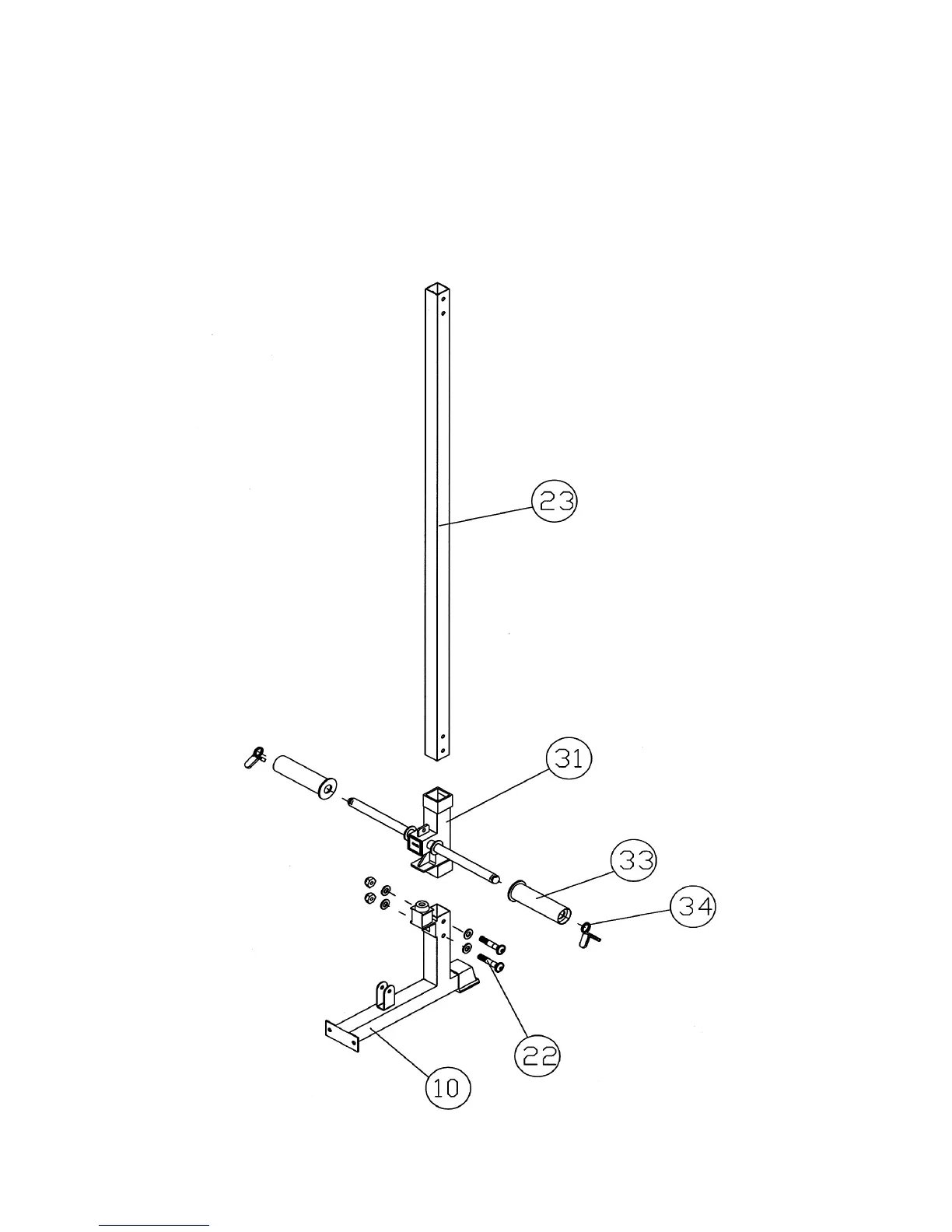

DIAGRAM 3
6
