A.) Attach the Seat Incline Support (#18) to the opening on Seat Bracket (#17). Secure it with
one M10 x 5” Allen Bolt (#51), two Ø ¾” Washers (#55), and one M10 Aircraft Nut (#58).
Do not tighten the Nut and Bolt yet.
B.) Attach the Seat Bracket to the pivot on the Sliding Block (#14). Attach the two Backrest
Supports (#19) to the Seat Bracket from each side. Secure them together with One M12 x
7 1/8” Hex Bolt (#50), two Ø 1” Washers (#57), and one M12 aircraft Nut (#33).
C.) Attach the Backrest Board (#22) to the Backrest Supports. Secure it with four M8 x 1 5/8”
Allen Bolts (#54) and four Ø 5/8” Washers (#56).
D.) Attach the Seat Pad (#23) to Seat Bracket. Secure it with four M8 x 1 5/8” Allen Bolts
(#54) and four Ø 5/8” Washers (#56).
E.) Securely tighten Nut and Bolt installed in A & B.

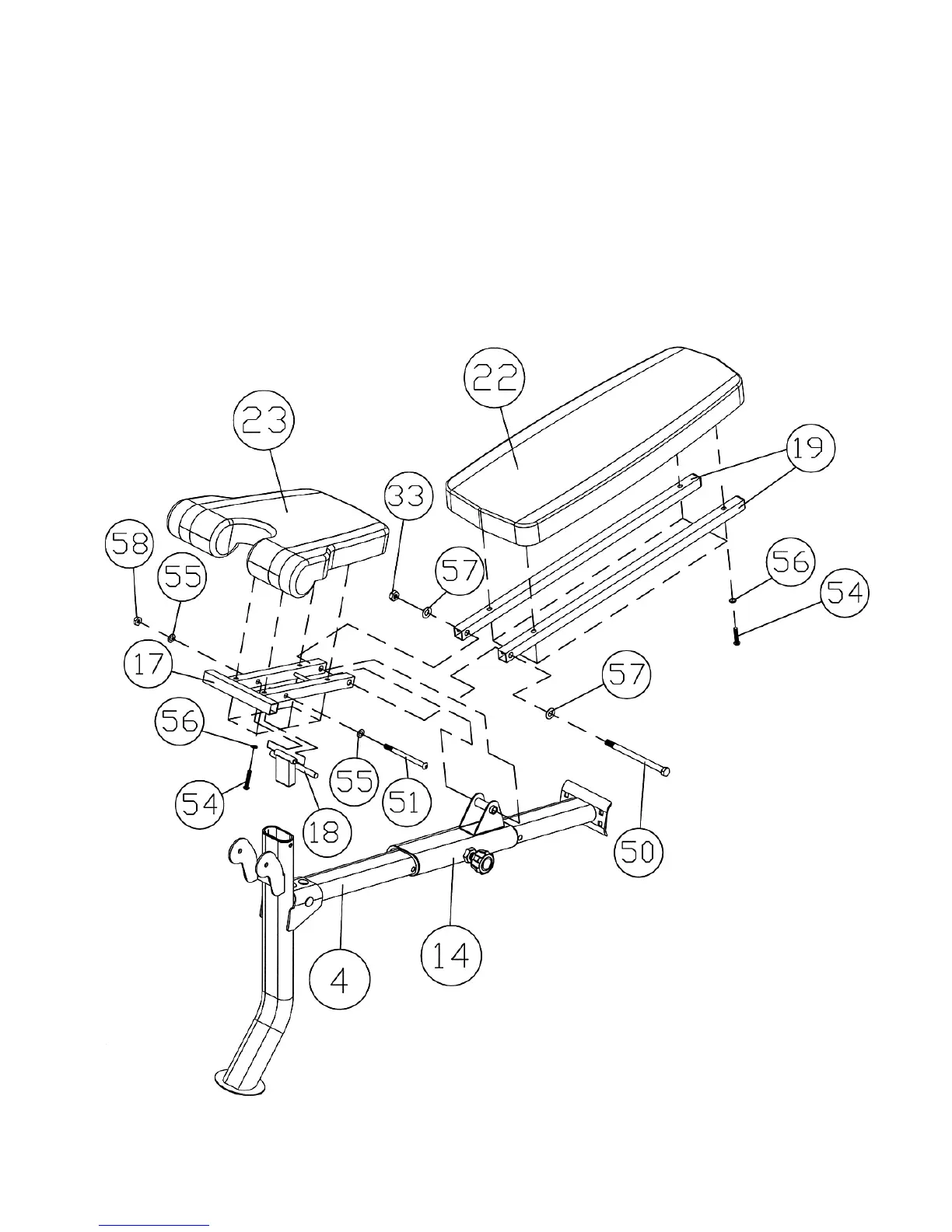

DIAGRAM 3
8
STEP 4 (See Diagram 4)
