STEP 4 (See Diagram 4)
A.) Attach the Leg Developer (#11) to the Front Post (#3). Secure it with an Axle (#43), two
M10 x 3/4” Allen Bolts (#52) and two ∅ ¾” Washers (#55).
B.) Insert two Foam Tubes (#20) halfway through the holes on the Leg Developer. Push four
Foam Rolls (#27) onto the Tubes from both ends. Plug four Foam Roll End Caps (#28)
into the ends.
C.) Slide an Olympic Sleeve (#26) onto the weight post on the Leg Developer. Attach a Spring
Clip (#42) to the Sleeve.

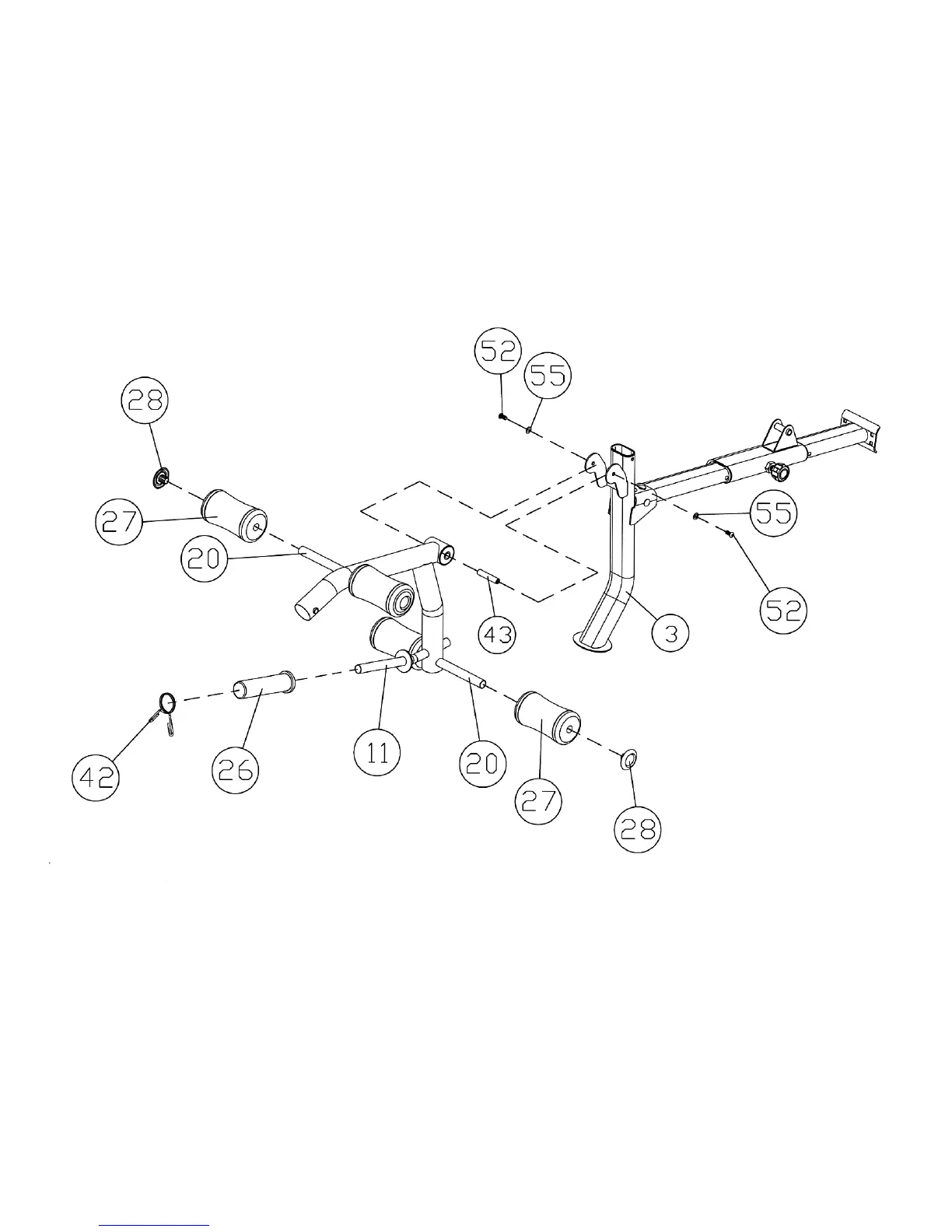

DIAGRAM 4
9
