Impulse RE700 User Manual

─ 6 ─

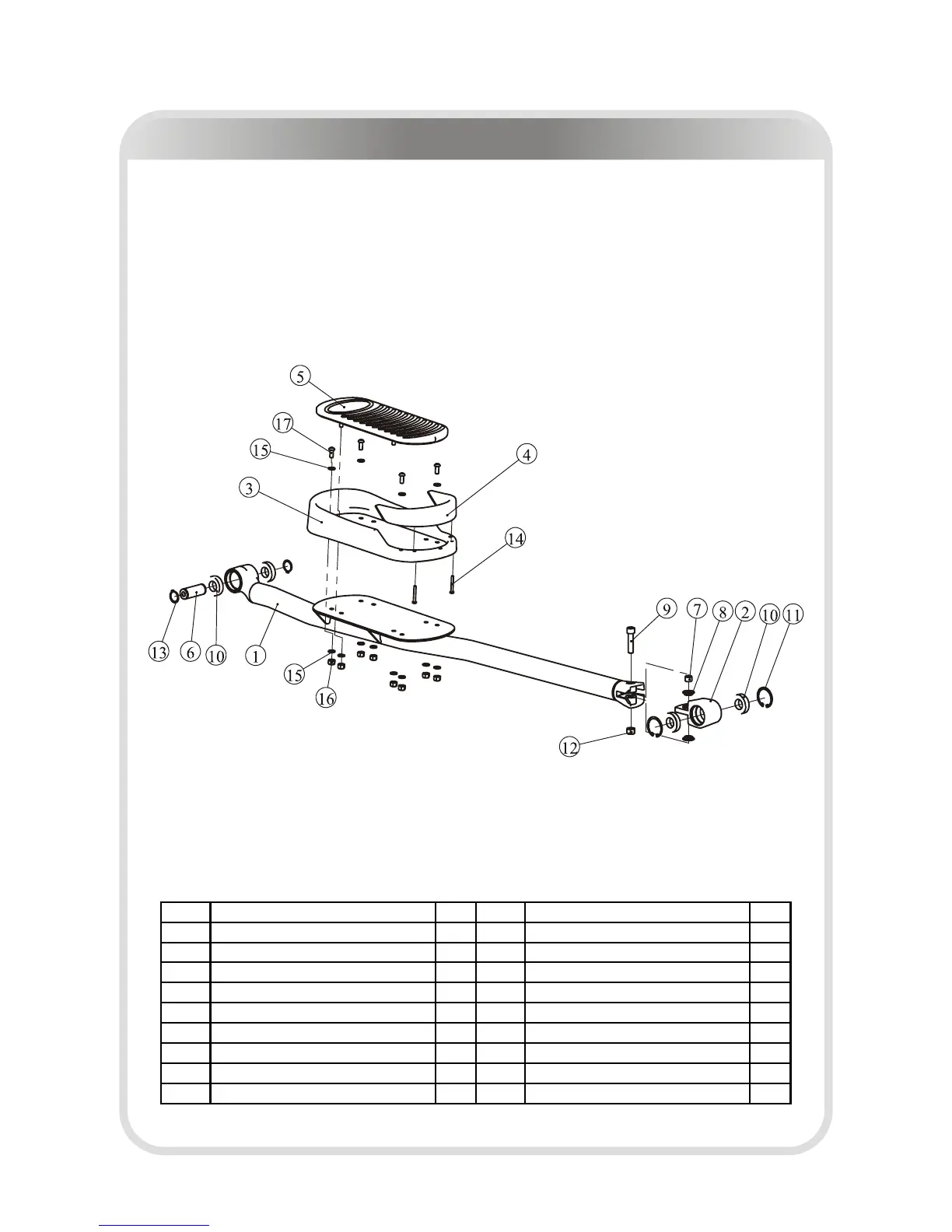

Exploded View and Parts List
Right Pedal Bracket ASSY
ITEM NO.
Description QTY
ITEM NO.
Description QTY
1 Right Pedal Bracket 1 10 Bearing 6005 4
2 Bearing Housing 1 11 Internal Retaining Rings Φ47 2
3 Pedal 1 12 Nylon Insert Lock Nut M12 1
4 Holder for Pedal 1 13 External Retaining Ring Φ25 2
5 Pedal Forming 1 14 Pan Head Phillips Screw M5*40 2
6 Axle for Pedal Bracket 1 15 Washer Φ9*Φ16*1.6 12
7 Bushing Φ16*11.5 1 16 Nylon Insert Lock Nut M8 8
8 Plastic Bushing 2 17 Button Head Cap Screw M8*20 4
9 Socket Head Cap Screw M12*50 1
