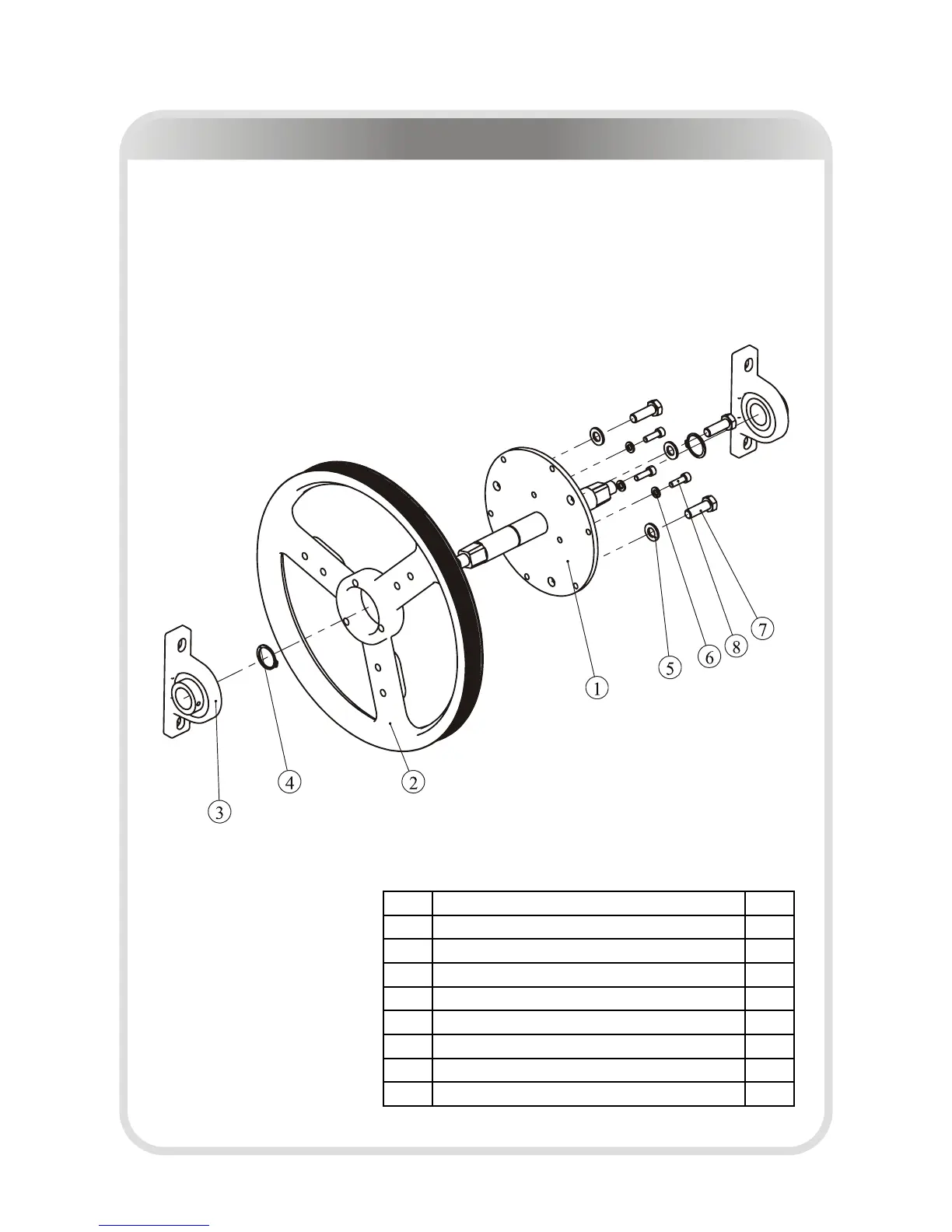

Exploded View and Parts List

Shaft ASSY

ITEM NO.

Description QTY

1 Shaft 1

2 Belt Pully 1

3 Pillow Block 2

4 External Retaining Ring Φ25 2

5 Washer Φ11*Φ20*2 3

6 Washer Φ6.6*Φ12*1.6 3

7 Hex Head Bolt M10*30 3

8 Socket Head Cap Screw M6*20 3
