CONNECTION AND OPERATION (SLA-600 / SLA-1000)

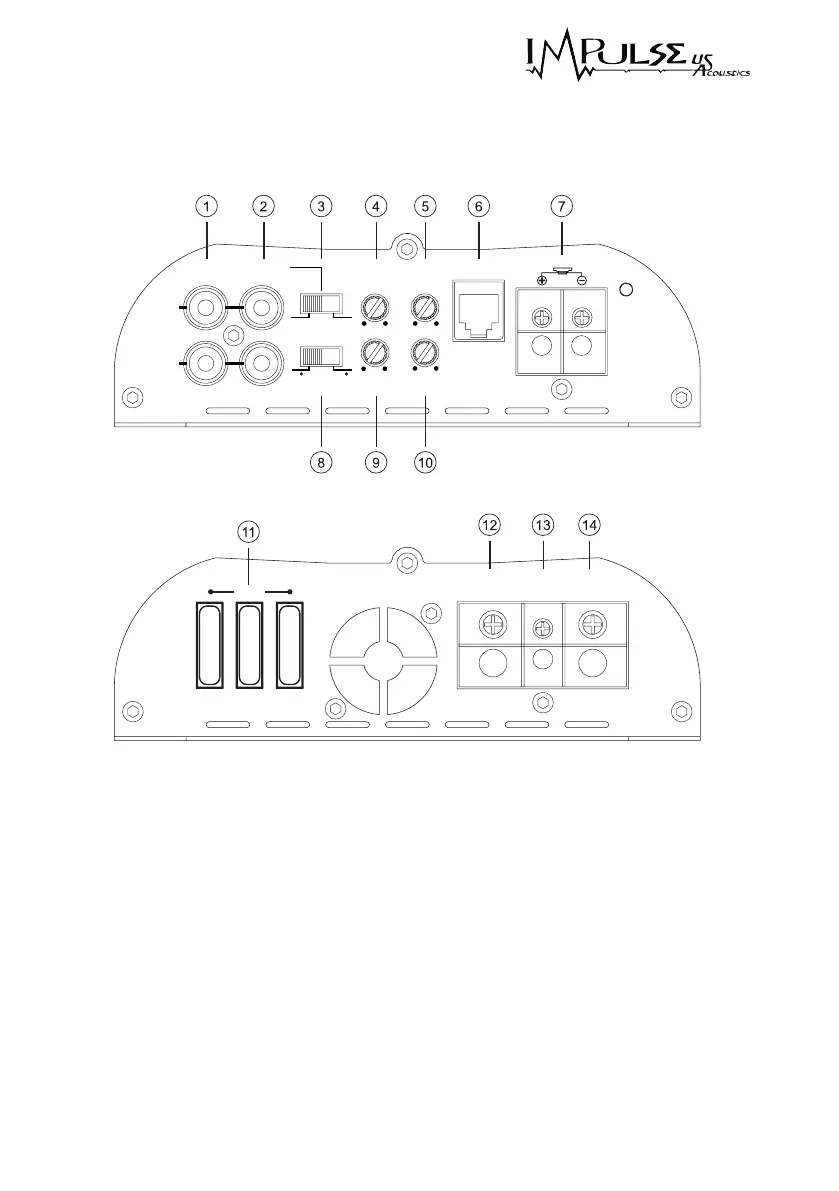

CONNECTIONS AND CONTROLS
1) RCA Input 8) Phase, switchable
2) Line Out 9) Bass-EQ, variable
3) Master/Slave Switch 10) Adjustable Crossover LPF
4) Gain Control Adjustment frequency
5) Subsonic, variable 11) Fuse
6) Remote Gain 12) + 12V Connectiom
7) Speaker Connection 13) Remote Connection
14) Ground Connection
INPUT
LINE OUT
L CH
R CH
MASTER
0
PHASE
SLAVE
GAIN
MIN
MAX
10Hz
50Hz
0dB
18dB
BASS EQ
LPF
30Hz 250Hz
SUB
SONIC
REMOTE
SPEAKER OUTPUT
POWER
(GREEN)
PROTECT
(RED)
180
FUSE
B+ REM GND
POWER INPUT
