In Phase IPA 1601 - Page 12

ON
PROT
B+GND REM
FL FR RL RR
POWER SPEAKER
BRIDGED BRIDGED
FUSE
ON
PROT
B+GND REM
FL FR RL RR
POWER SPEAKER
BRIDGED BRIDGED
FUSE
ON
PROT
B+GND REM
FL FR RL RR
POWER SPEAKER
BRIDGED BRIDGED
FUSE
ON
PROT
B+GND REM
FL FR RL RR
POWER SPEAKER
BRIDGED BRIDGED
FUSE
10
2 SPEAKER BRIDGED
SUB WOOFER
3 CH
4-8 Ohms
2 CH 1CH
2 SPEAKER + 1 SUBWOOFER
2-4 Ohms
4 SPEAKER STEREO
2-4 Ohms
4 CH
4-8 Ohms
5 CH
4-8 Ohms
6 CH
4-8 Ohms
6 SPEAKER HEX MODE

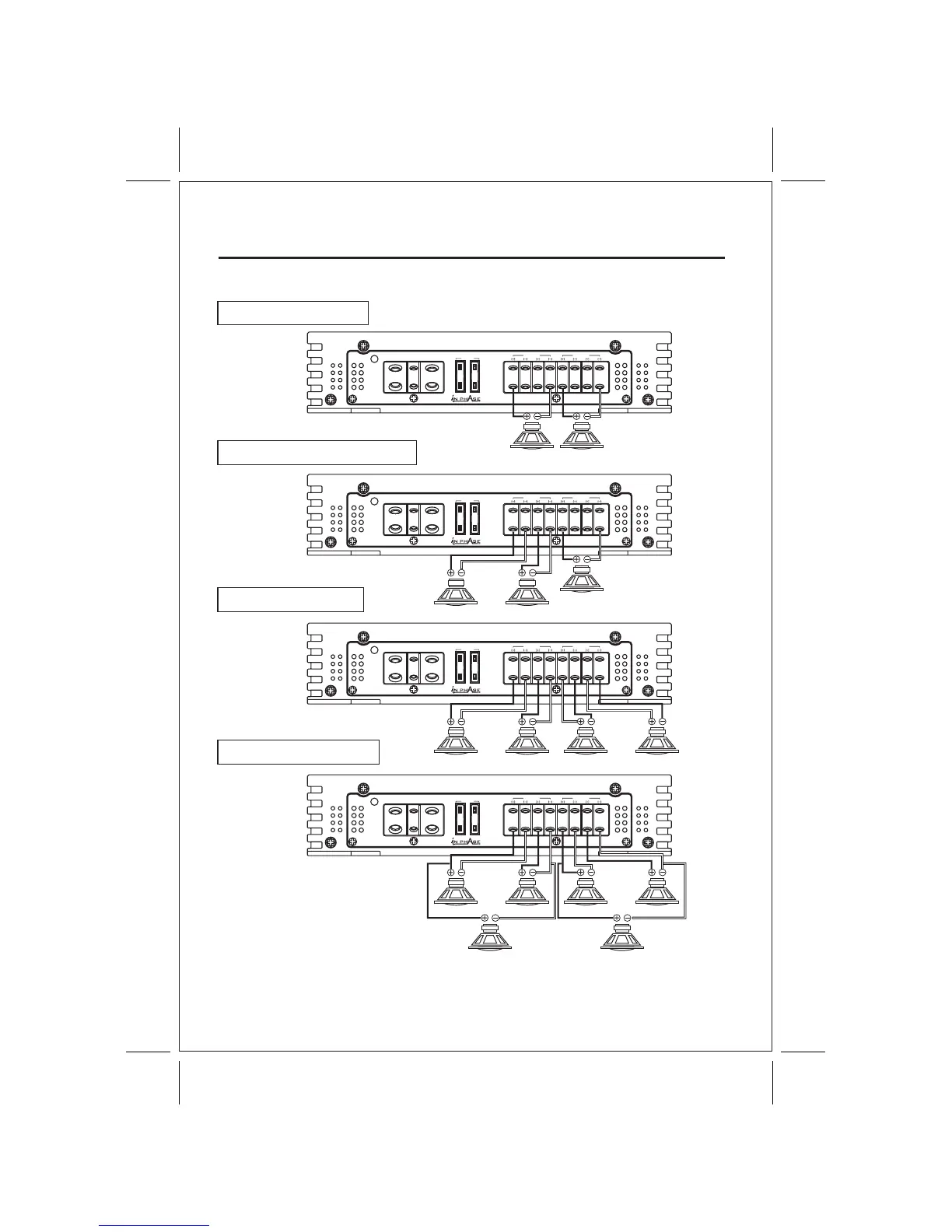

4 CHANNEL SPEAKER WIRING DIAGRAM
SPEAKER CONNECTIONS
4-8 Ohms
1 CH 2 CH
3 CH
2 CH 1CH
4 CH
3 CH
2 CH 1CH
FIG.3
