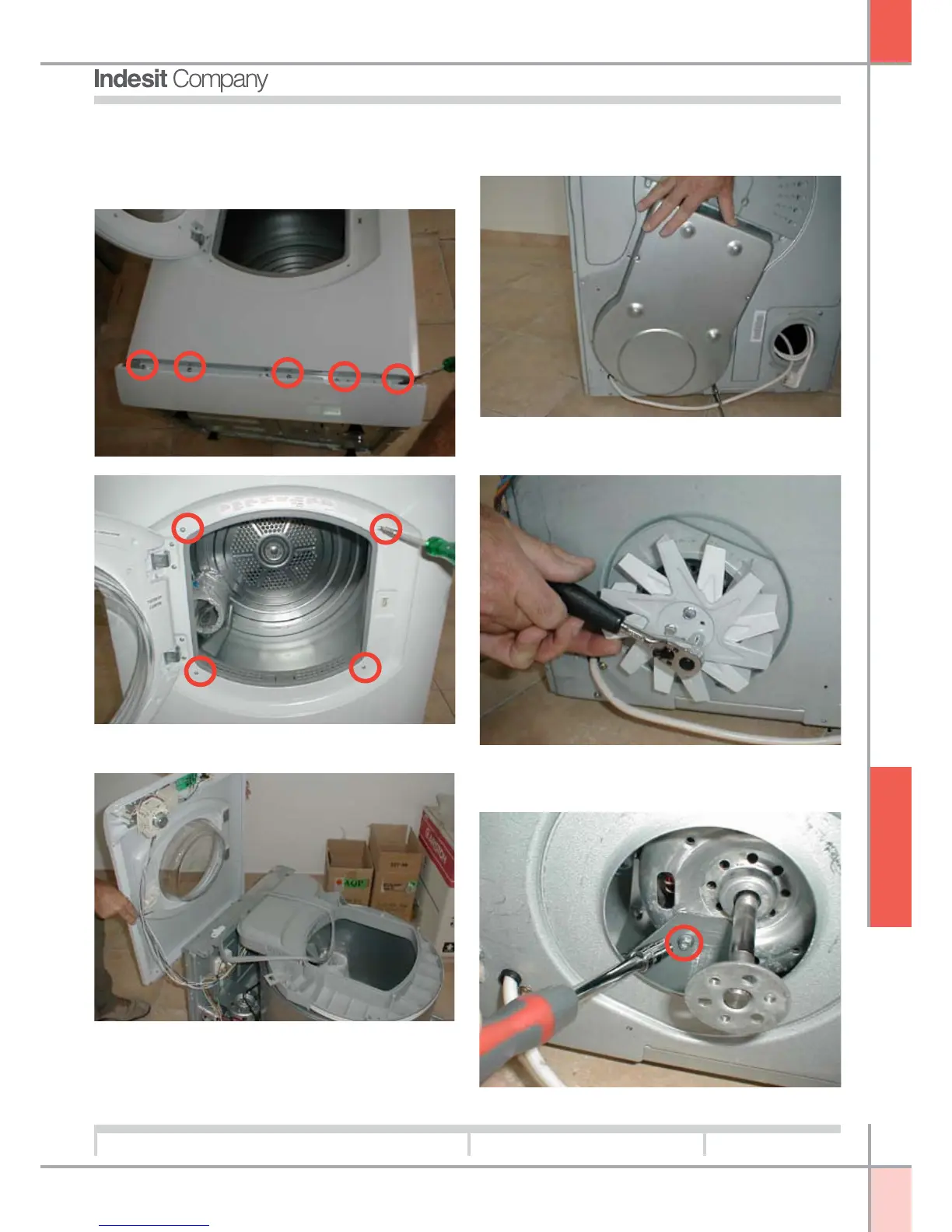

c) Removal of front panel and air duct
1. The following steps will be made easier by laying
the machine on its back
3. The front panel and air duct can be removed This
done, it will also be possible to remove the door seal
and the front bearings
2. Remove the 5 screws securing the front panel to the base,
and the four screws joining the panel and the air duct
d) Removal of motor
1. Detach the right hand side panel
2. Remove the rear guard of the heater unit and
fan
3. Remove the rear fans, undoing the three bolts that
secure them to the motor shaft
