Accessibility

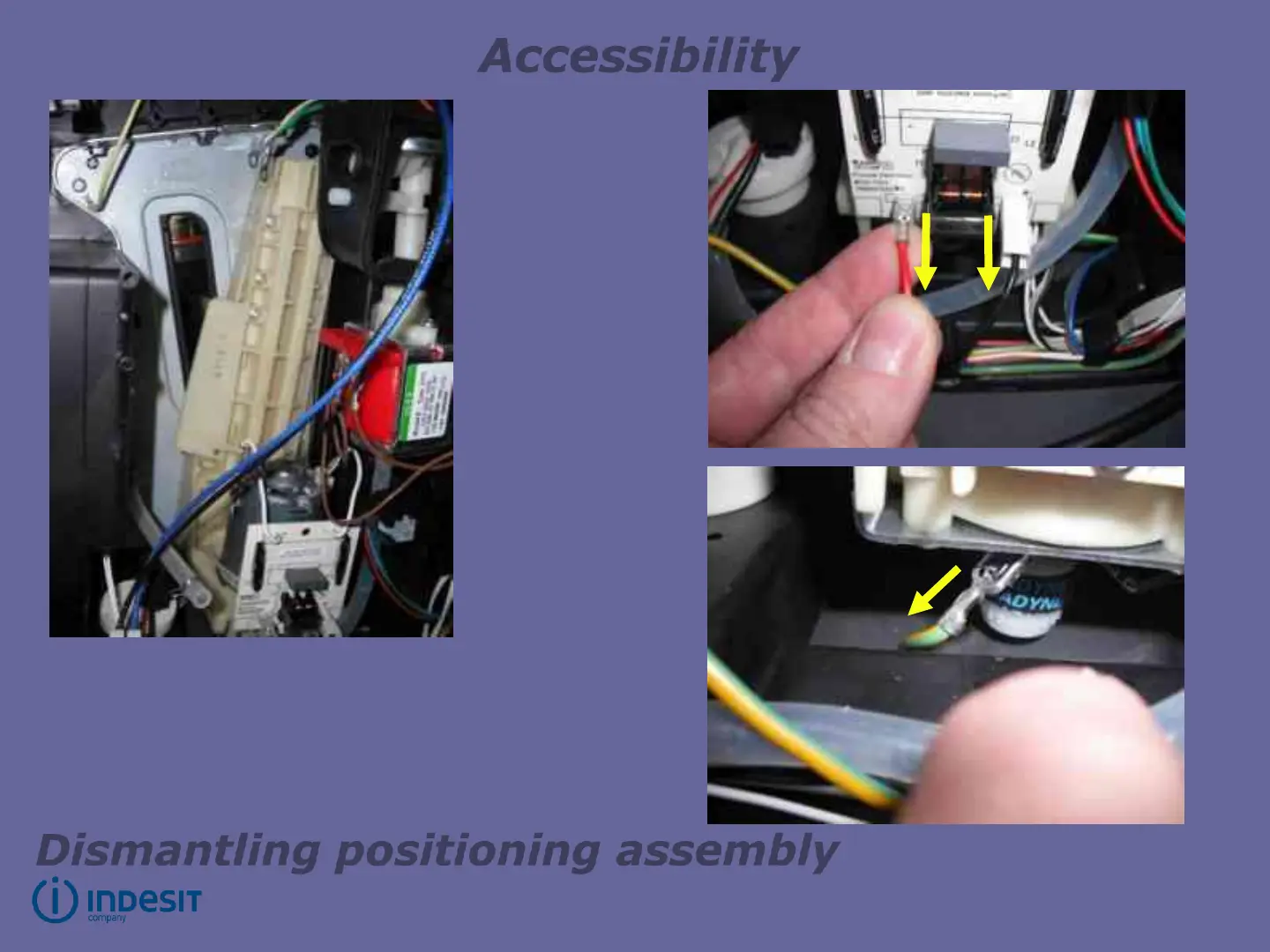

Dismantling positioning assembly
After removing the steam unit,
you can also remove the
positioning assembly.
Remove the
2 faston
connectors
from the
motor
board...
… and the
faston
connector
from the
earth.
