CONTROLLER DESCRIPTION
ST-01RL
The ST-01RL controller is a device used to remotely control the operation of roller blinds and shutters. The device is intended for mounting
in a roller blind cassette.
Remote control is possible with the use of the following remote controllers: PIL-02/04XB, PIL-01PT, PIL-01/04NS, PIL-01/05/09/19DL,
PIL-19/99DLT, PIL-01/05/09/19PM, PIL-19/99PMT, PIL-19/99MMT.
Pressing UP or DOWN on the remote control starts a full cycle of opening or closing the roller blind (the time of applying voltage to the
motor is factory set at 100 seconds).
ST-01RLZ (shutter controller)
The controller allows for precise setting (changing angle) of blind slats remotely with the use of the following remote controllers:
PIL-01/04NS, PIL-05/09/19DL, PIL-19/99DLT, PIL-05/09/19PM, PIL-19/99PMT, PIL-19/99MMT. Setting slat angle is possible after the
controller stops (after 100 seconds elapse) or by sending the STOP command.
When controlled remotely, the device receives commands from remote controllers operating in normal or shutter mode. Commands sent in
normal mode start the full opening or closing cycle. In shutter mode every command causes the controller to start the slat angle setting motor
for a short time.

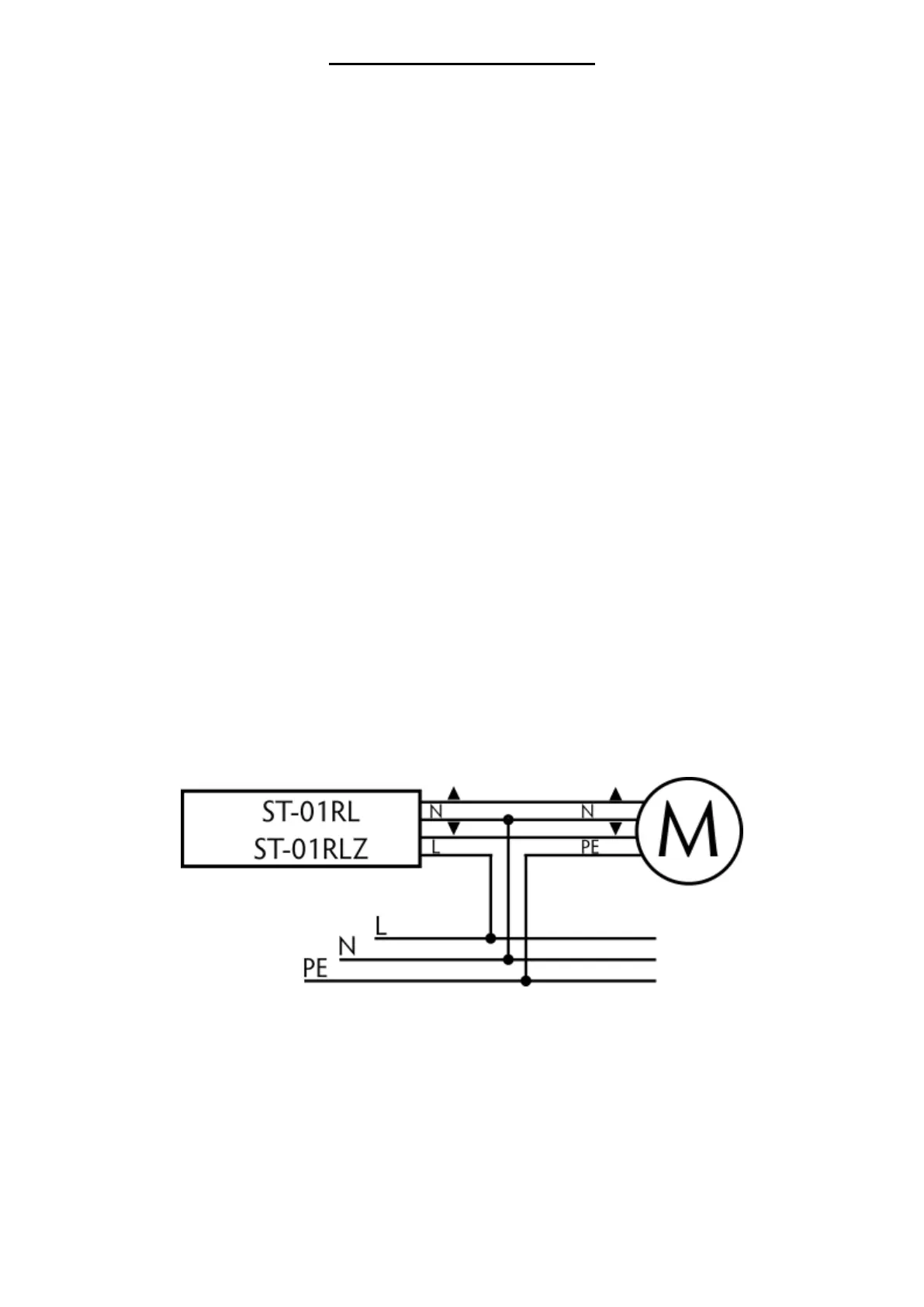

Connecting ST-01RL and ST-01RLZ controllers
L installation L1 wire brown
N installation N wire blue
PE installation PE wire yellow-green
MOTOR motor connection
PE motor protective wire yellow-green
▲ motor up wire brown
N motor neutral wire blue.
▼ motor down wire black
ST-01RL/ST-01RLZ controller connection
▲ controller up white
N controller neutral wire blue
▼ controller down black
L controller phase wire brown
