iNetVu STM Satlink 2900 - Page 10

INETVU® MOBILE SYSTEM QUICK START – NERA & STM
C-COM Satellite Systems Inc. Page 10

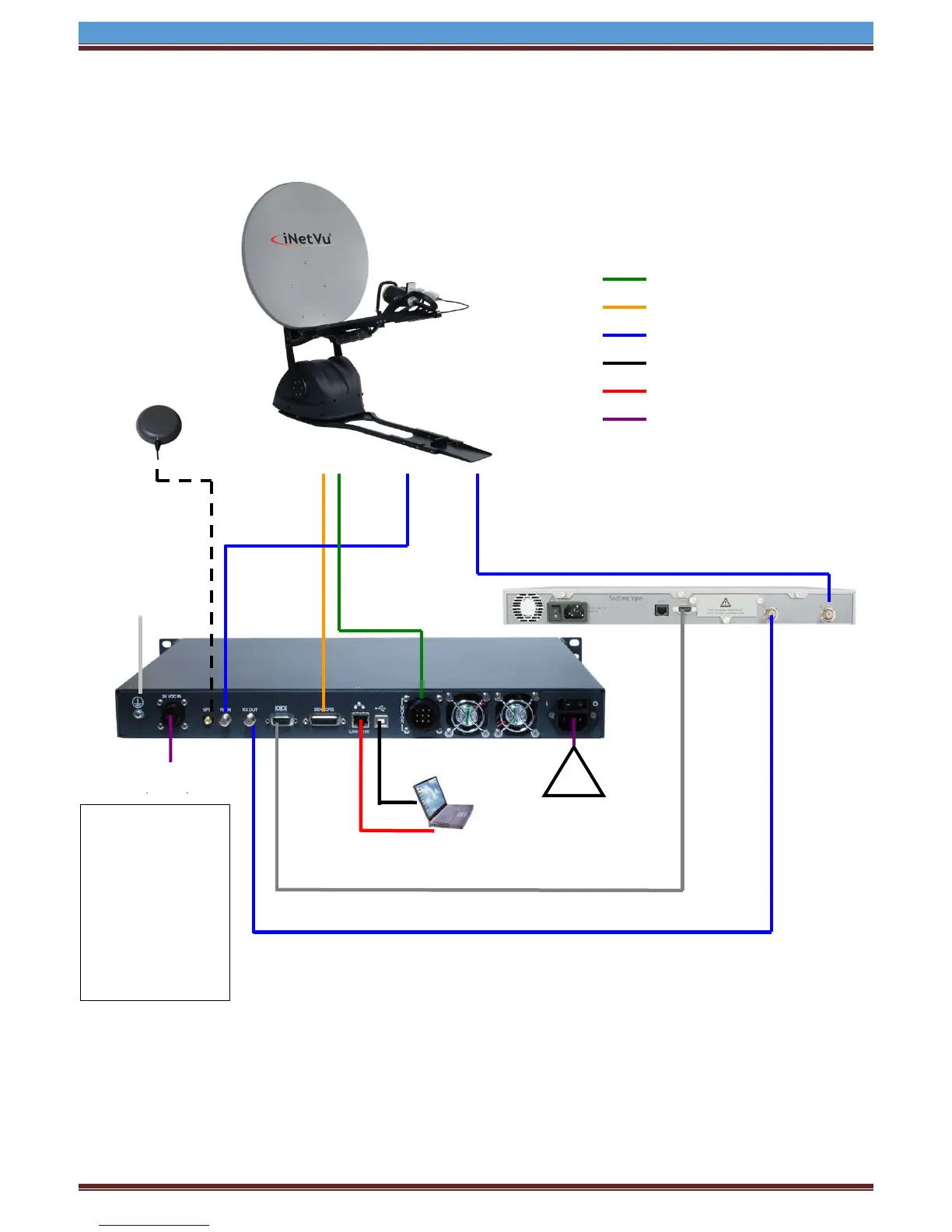

1.8 Modem Serial Connection – System Wiring Diagram
4. Serial
Interface System Wiring Diagram for STM Service with USB connection to PC (PC could be connected
via network as well)
!
90 - 264 VAC
RX
GPS
Antenna
TX
Motor
Cable
Sensor
Cable
SAT OUT
RX IN
SAT IN
Standard male to female straight DB9 with NULL
Modem Adapter attached to controller end of cable
RX OUT
Motor Control Cable
Sensor Cable
RG6 Coaxial Cable
USB Cable
Network Cable
Power Cable
STM Satlink 1910
Controller may be
configured from PC
via network (straight
Or x-over) or USB
cable.
Note: USB requires
iNetVu software
No PC required for
front panel
configuration
*Ground
protection
24 VDC
Input
()
