iNetVu STM Satlink 2900 - Page 8

INETVU® MOBILE SYSTEM QUICK START – NERA & STM
C-COM Satellite Systems Inc. Page 8
1.6 USB Interface Connection – Satlink 2900 System Wiring
2.

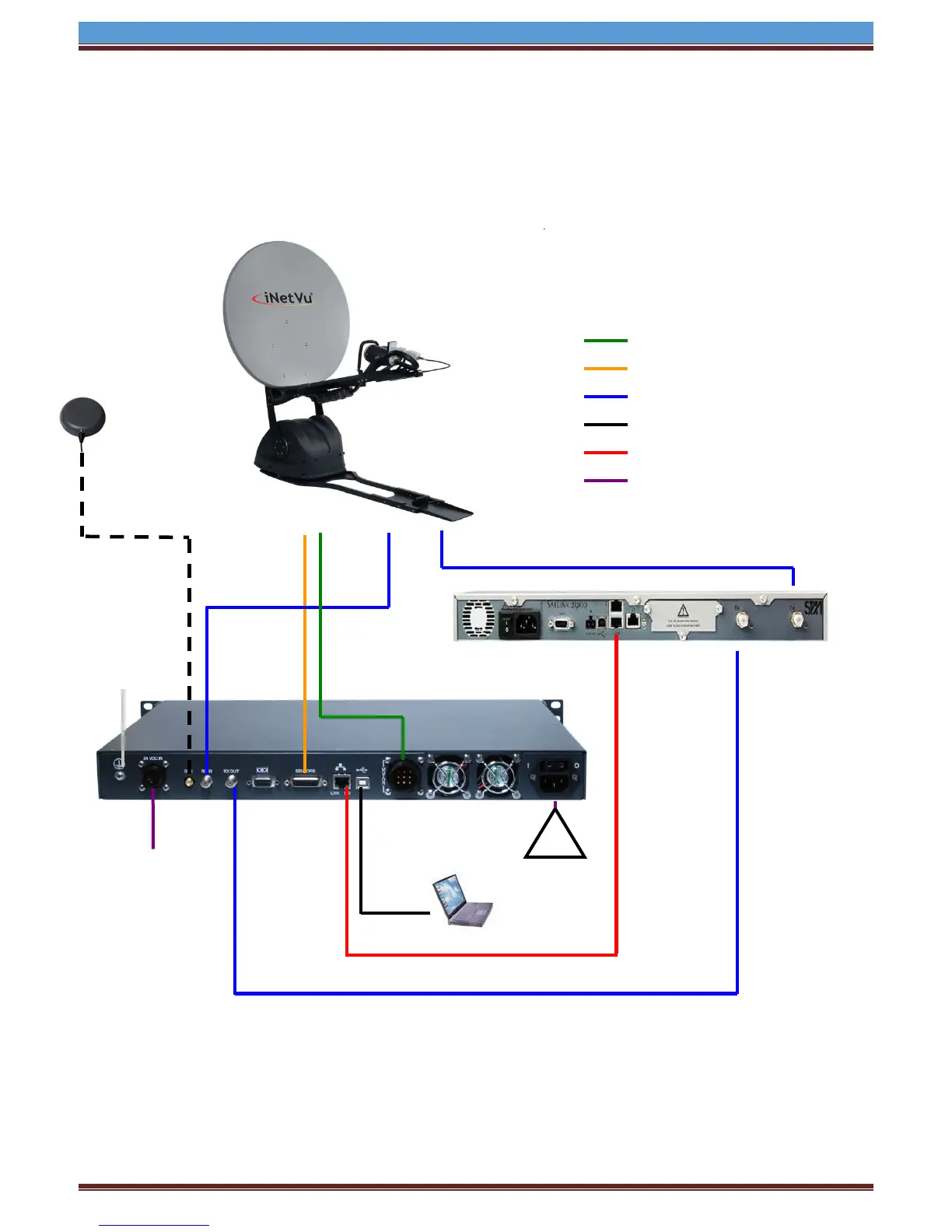

USB Interface System Wiring Diagram for STM 2900 Series
LAN 1
!
90 - 264 VAC
RX
TX
Motor
Cable
Sensor
Cable
USB Cable
SAT OUT
RX IN
SAT IN
IP: A.B.C.D+1
SUB: 255.X.Y.Z
GW: A.B.C.D
IP: A.B.C.D
SUB: 255.X.Y.Z
X-OVER
Network Cable
RX
OUT
Motor Control Cable
Sensor Cable
RG6 Coaxial Cable
USB Cable
Network Cable
Power Cable
STM Satlink 2900
GPS
Antenna
*Ground
protection
24 VDC
Input
(option)
